Robeson Co

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Incomplete

Water System Name:	Robeson Co	PWSID:	03-78-055
Mailing Address:	176 Legend Road Lumberton, NC 28358	Ownership:	County

Contact Person:	Corey Hammond	Title:	Public Utilites Director
Phone:	910-671-3485	Cell/Mobile:	--

Distribution System

Line Type	Size Range (Inches)	Estimated % of lines
Asbestos Cement	6-12	1.00 %
Ductile Iron	4-30	1.00 %
Polyvinyl Chloride	2-12	98.00 %

What are the estimated total miles of distribution system lines? 1,265 Miles

How many feet of distribution lines were replaced during 2002? 0 Feet

How many feet of new water mains were added during 2002? 500,930 Feet

How many meters were replaced in 2002? 2,000

How old are the oldest meters in this system? 20 Year(s)

How many meters for outdoor water use, such as irrigation, are not billed for sewer services? 0

What is this system's finished water storage capacity? 5.8500 Million Gallons

Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included. No

HDPE is used for directional boring under steams.

Programs

Does this system have a program to work or flush hydrants? No, None

Does this system have a valve exercise program? No, None

Does this system have a cross-connection program? No

Does this system have a program to replace meters? No

Does this system have a plumbing retrofit program? No

Does this system have an active water conservation public education program? No

Does this system have a leak detection program? No

Water Conservation

What type of rate structure is used? Other

How much reclaimed water does this system use? 0.0000 MGD For how many connections? 0

Does this system have an interconnection with another system capable of providing water in an emergency? Yes

2. Water Use Information

Service Area

Sub-Basin(s)	% of Service Population
Lumber River (09-1)	0 %
Big Shoe Heel Creek (09-2)	0 %

County(s)	% of Service Population
Robeson	0 %

What was the year-round population served in 2002? 65,700

Has this system acquired another system since last report?

Water Use by Type

Type of Use	Metered Connections	Metered Average Use (MGD)
Residential	19,898	4.5350
Commercial	0	0.0000
Industrial	6	5.4910
Institutional	0	0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)? 0.9240 MGD

Robeson Co lumps all their residential, commercial, and institutional users together. Based on this report, the amount of raw water is less than the finished water metered. Robeson Co needs to look at the instrumentation to see if there is a calibration problem. Without knowing what is wrong adjustments to the water use numbers cannot be made at this time.

Water Sales

Purchaser	PWSID	Average Daily Sold (MGD)	Days Used	Contract			Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Purchaser	PWSID	Average Daily Sold (MGD)	Days Used	MGD	Expiration	Recurring	Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Boardman	04-24-075	0.0080	365	0.0000				8	Emergency
Hoke RWS	03-47-025	0.0000	0	0.0000				6	Emergency
Lumberton	03-78-010	0.0000	0	0.0000				8	Emergency
Maxton	03-78-035	0.0000	0	0.0000				8	Emergency
Parkton	03-78-045	0.0000	0	0.0000				6	Emergency
Pembroke	03-78-020	0.0800	2	0.0000				4	Emergency
Red Springs	03-78-015	0.1910	365	0.0000				8	Regular
Rowland	03-78-040	0.0000	0	0.0300				6,8	Emergency
St. Pauls	03-78-030	0.0240	365	0.0000				8	Emergency

No contracts now exist. Regular water sales are to Red Springs and St. Pauls only. Boardman is now on the Columbus County Water System.

3. Water Supply Sources

Monthly Withdrawals & Purchases

	Average Daily Use (MGD)	Max Day Use (MGD)		Average Daily Use (MGD)	Max Day Use (MGD)		Average Daily Use (MGD)	Max Day Use (MGD)
Jan	11.1420	14.9210	May	11.6860	14.8460	Sep	13.3070	15.8660
Feb	10.5090	12.8540	Jun	11.2900	16.0370	Oct	13.8830	16.6490
Mar	10.2120	14.0080	Jul	11.9310	15.0210	Nov	13.1650	16.5720
Apr	9.7920	14.7300	Aug	13.9390	21.3620	Dec	12.4110	15.2180

Based on this report, the amount of raw water is less than the finished water metered. Robeson Co needs to look at the instrumentation to see if there is a calibration problem. Without knowing what is wrong adjustments to the water use numbers cannot be made at this time.

Ground Water Sources

Name or Number	Average Daily Withdrawal (MGD)		Max Day Withdrawal (MGD)	12-Hour Supply (MGD)	CUA Reduction	Year Offline	Use Type
Name or Number	MGD	Days Used	Max Day Withdrawal (MGD)	12-Hour Supply (MGD)	CUA Reduction	Year Offline	Use Type
1	0.0000	0	0.000	0.3600			Regular
10	0.6150	325	1.222	0.8640			Regular
11	0.9320	352	7.577	0.6480			Regular
12	0.2150	71	0.509	0.6480			Regular
14	0.2410	229	0.888	0.5040			Regular
16	0.0000	324	0.841	0.2880			Regular
17	0.0000	0	0.000	0.2160			Regular
18	0.0000	0	0.000	0.1440			Regular
19	0.0000	0	0.000	0.2520			Regular
2	0.0000	0	0.000	0.5040			Regular
21	0.0000	0	0.000	0.2520			Regular
22	0.0000	0	0.000	0.5760			Regular
23	0.0000	0	0.000	0.5760			Regular
25	0.0000	0	0.000	0.5040			Regular
26	0.0000	0	0.000	0.5040			Regular
27	0.0000	0	0.000	0.5040			Regular
28	0.0000	0	0.000	0.3240			Regular
29	0.5570	233	0.100	0.4320			Regular
3	0.0000	0	0.000	0.3960			Regular
30	0.4700	361	3.436	0.4320			Regular
31	0.0000	0	0.000	0.6480			Regular
32	0.0000	0	0.000	0.4680			Regular
33	0.0000	0	0.000	0.7300			Regular
34	0.0000	0	0.000	0.5040			Regular
35	0.0000	0	0.000	0.3260			Regular
4A	0.0000	0	0.000	0.5400			Regular
5	0.0000	0	0.000	1.0080			Regular
6	0.0000	0	0.000	0.5760			Regular
7	0.4330	365	1.803	0.2520			Regular
8	0.0000	0	0.000	0.2700			Regular
9	0.0000	0	0.000	0.5040			Regular

Ground Water Sources (continued)

Name or Number	Well Depth (Feet)	Casing Depth (Feet)	Screen Depth (Feet)		Well Diameter (Inches)	Pump Intake Depth (Feet)	Metered?
Name or Number	Well Depth (Feet)	Casing Depth (Feet)	Top	Bottom	Well Diameter (Inches)	Pump Intake Depth (Feet)	Metered?
1	168	52	103	163	10	0	Yes
10	195	60	82	185	16	0	Yes
11	180	65	90	175	12	0	Yes
12	241	80	170	229	12	130	Yes
14	225	57	107	215	12	0	Yes
16	170	60	90	160	12	133	Yes
17	144	46	65	134	10	115	Yes
18	106	40	50	94	10	80	Yes
19	112	35	53	100	10	80	Yes
2	0	0	0	0	12	0	Yes
21	113	40	46	101	10	0	Yes
22	160	32	105	155	12	0	Yes
23	173	30	100	170	12	125	Yes
25	131	59	85	125	10	0	Yes
26	135	0	0	0	10	0	Yes
27	103	42	66	103	10	0	Yes
28	88	25	37	75	10	0	Yes
29	133	50	70	125	12	72	Yes
3	0	0	0	0	12	0	No
30	197	40	130	190	12	117	Yes
31	170	60	70	162	16	131	Yes
32	186	66	72	177	12	117	Yes
33	264	50	195	252	12	143	Yes
34	152	50	68	145	12	70	Yes
35	130	50	83	123	10	80	Yes
4A	180	50	82	172	12	0	Yes
5	171	25	81	165	16	0	Yes
6	173	30	71	161	12	100	Yes
7	220	0	100	215	12	0	Yes
8	200	38	133	191	10	0	Yes
9	195	40	72	182	12	0	Yes

Are ground water levels monitored? Yes, Semi-Annually

Does this system have a wellhead protection program? Yes

Wells 13 and 15 are abandoned. Well 20 is not in use. Well 24 was changed to well 9. Raemon Well Treatment Facility for well 33 was under construction in 2002. Based on this report, the amount of raw water is less than the finished water metered. Robeson Co needs to look at the instrumentation to see if there is a calibration problem. Without knowing what is wrong adjustments to the water use numbers cannot be made at this time.

Water Purchases From Other Systems

Seller	PWSID	Average Daily Purchased (MGD)	Days Used	Contract			Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Seller	PWSID	Average Daily Purchased (MGD)	Days Used	MGD	Expiration	Recurring	Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Lumberton	03-78-010	0.0470	365	0.5000				6-12	Regular
Maxton	03-78-035	0.0000	0	0.0500				6	Emergency
Parkton	03-78-045	0.0000	0	0.0000				6	Emergency
Red Springs	03-78-015	0.0190	365	0.0000				6-12	Regular
Rowland	03-78-040	0.0000	0	0.0300				6,8	Emergency

Contracts expired. Water purchased as needed. Based on this report, the amount of raw water is less than the finished water metered. Robeson Co needs to look at the instrumentation to see if there is a calibration problem. Without knowing what is wrong adjustments to the water use numbers cannot be made at this time.

Water Treatment Plants

Plant Name	Permitted Capacity (MGD)	Is Raw Water Metered?	Is Finished Water Ouput Metered?	Source
Gaddysville WTP	1.2960	Yes	Yes	Well 12
I-95 WTP	2.0000	Yes	Yes	Well 10
Lumber Bridge WTP	6.0000	Yes	Yes	Wells 25, 26, 27, 28, 34, and 35
Maxton WTP	12.0000	Yes	Yes	Wells 1, 2, 3, 4A, 5, 6, 9, 22, 23, 31, and 32
NC 20 (Rex) WTP	0.7200	Yes	Yes	Well 29
Parkton WTP	0.4320	Yes	Yes	Well 20
Pope Road WTP	0.2700	Yes	Yes	Well 8
Raemon WTP (Under Construction	0.7300	Yes	Yes	Well 33
Raynham WTP	0.4520	Yes	Yes	Well 7
Regan Road WTP	0.8280	Yes	Yes	Well 14
Rocco WTP	2.0000	Yes	Yes	Wells 17, 18, 19, and 21
Saddletree WTP	2.0000	Yes	Yes	Well 11
Sanchez Drive WTP	0.7200	Yes	Yes	Well 30
St. Pauls East WTP	0.4320	Yes	Yes	Well 16

Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2002? No

If yes, was any water conservation implemented?

Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2002? No

If yes, was any water conservation implemented?

Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years? No

Average Daily Water Production exceeded 80% for 5 consecutive days at the NC 20 (Rex) WTP in one month only. The combined system did not exceed 80% of the total approved WTP capacity.

4. Wastewater Information

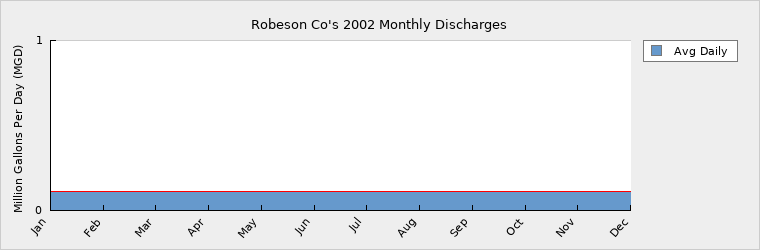

Monthly Discharges

	Average Daily Discharge (MGD)		Average Daily Discharge (MGD)		Average Daily Discharge (MGD)
Jan	0.1100	May	0.1100	Sep	0.1100
Feb	0.1100	Jun	0.1100	Oct	0.1100
Mar	0.1100	Jul	0.1100	Nov	0.1100
Apr	0.1100	Aug	0.1100	Dec	0.1100

How many sewer connections does this system have? 296

How many water service connections with septic systems does this system have? 19,602

Are there plans to build or expand wastewater treatment facilities in the next 10 years? No

Wastewater Permits

Permit Number	Average Annual Daily Discharge (MGD)	Maximum Day Discharge (MGD)	Receiving Stream	Receiving Basin
NC0048577	0.0600	0.0600	Lumber River	Lumber River (09-1)
NC0084204	0.0300	0.0300	Lumber River	Lumber River (09-1)
NC0085685	0.0600	0.0600	Big Marsh Swamp	Lumber River (09-1)
NC0086894	0.0000	0.0000	Watering Hole Swamp	Lumber River (09-1)
NC0086991	0.0100	0.0100	Little Jacob Swamp	Lumber River (09-1)

5. Planning

Projections

	2002	2010	2020	2030
Year-Round Population	65,700	74,700	84,200	93,100
Seasonal Population	0	0	0	0

Residential	4.5350	5.4160	5.8940	6.5170
Commercial	0.0000	0.0000	0.0000	0.0000
Industrial	5.4910	6.2750	7.0730	7.8200
Institutional	0.0000	0.0000	0.0000	0.0000
System Process	0.9240	1.0360	1.1140	1.2100
Unaccounted-for	-8.2146	1.0570	1.1370	1.2340

Future Supply Sources

Source Name	PWSID	Source Type	Additional Supply	Year Online	Type
2 Additional Wells	03-78-055	Ground	0.7200	2022	Regular
3 Additional Wells	03-78-055	Ground	1.0800	2045	Regular
4 Additional Wells	03-78-055	Ground	1.4400	2008	Regular
4 Additional Wells	03-78-055	Ground	1.4400	2015	Regular
Allenton WTP	03-78-055	Ground	0.5400	2006	Regular
Comtech WTP	03-78-055	Ground	2.0000	2006	Regular
Northern WTP	03-78-055	Ground	0.8640	2008	Regular
Rocco Well	03-78-055	Ground	0.2880	2004	Regular

Demand v/s Percent of Supply

	2002	2010	2020	2030
Surface Water Supply	0.0000	0.0000	0.0000	0.0000
Ground Water Supply	14.7540	14.7540	14.7540	14.7540
Purchases	0.5190	0.5190	0.5190	0.5190
Future Supplies		5.1320	6.5720	7.2920
Total Available Supply (MGD)	15.2730	20.4050	21.8450	22.5650
Service Area Demand	2.7354	13.7840	15.2180	16.7810
Sales	0.2234	0.2230	0.2230	0.2230
Future Sales		0.0000	0.0000	0.0000
Total Demand (MGD)	2.9588	14.0070	15.4410	17.0040
Demand as Percent of Supply	19%	69%	71%	75%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 69 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning? No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
