New Bern

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: New Bern   PWSID: 04-25-010
Mailing Address:PO Box 1129
New Bern, NC 28563-1129		Ownership:Municipality

Contact Person:Jordan B. Hughes, P.E.Title:Director of Water Resources
Phone:252-639-7527Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-12 2.00 %
Cast Iron 6-12 32.00 %
Ductile Iron 6-16 15.00 %
Galvanized Iron 2 3.00 %
Other 30 7.00 %
Polyvinyl Chloride 2-12 41.00 %
What are the estimated total miles of distribution system lines?   212 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   11,300 Feet
How many meters were replaced in 2002?   360
How old are the oldest meters in this system?   10 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   588
What is this system's finished water storage capacity?   0.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Once a Month
Does this system have a valve exercise program?   No, None
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Flat
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Neuse River (10-1)0 %
Trent River (10-3)0 %
County(s)% of Service Population
Craven0 %
What was the year-round population served in 2002?   23,850
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 13,389 2.3440 0 0.0000
Commercial 1,626 0.9450 0 0.0000
Industrial 48 0.3420 0 0.0000
Institutional 1 0.1750 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Cove City 04-25-045 0.0370 365 0.0980 6 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 3.6880 4.8730 May 4.6560 5.7880 Sep 4.2870 5.3880
Feb 3.6750 3.9570 Jun 4.9990 6.1780 Oct 4.0920 5.2670
Mar 3.7370 4.4820 Jul 4.6900 6.4600 Nov 3.9020 5.1200
Apr 4.2520 6.0200 Aug 4.7830 6.5870 Dec 3.6900 5.1840

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Well No. 1 0.8690 358 2.218 0.9720 Regular
Well No. 2 0.8060 365 2.120 0.9000 Regular
Well No. 3 1.0360 364 2.356 0.9720 Regular
Well No. 4 0.9820 361 2.074 0.9720 Regular
Well No. 5 0.6300 269 1.909 1.0440 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Well No. 1 842 490 490 837 10 220 Yes
Well No. 2 820 460 460 815 10 220 Yes
Well No. 3 796 465 465 779 10 240 Yes
Well No. 4 839 465 465 834 10 240 Yes
Well No. 5 889 495 495 889 10 240 Yes
Are ground water levels monitored?   Yes, Monthly
Does this system have a wellhead protection program?   Yes

4. Wastewater Information

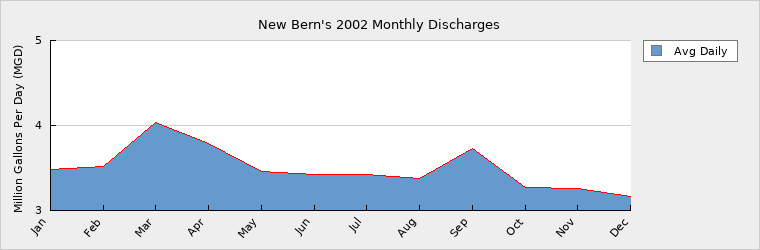

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 3.4800 May 3.4600 Sep 3.7300
Feb 3.5200 Jun 3.4200 Oct 3.2700
Mar 4.0300 Jul 3.4200 Nov 3.2600
Apr 3.7900 Aug 3.3800 Dec 3.1600

How many sewer connections does this system have?   10,844
How many water service connections with septic systems does this system have?   2,900
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0025348 4.7000 4.7000 3.4900 5.4800 Neuse River Neuse River (10-1)

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 23,850 27,280 31,740 36,365
Seasonal Population 0 0 0 0

Residential 2.3440 2.9900 3.4700 3.9500
Commercial 0.9450 1.1300 1.3100 1.6300
Industrial 0.3420 0.3850 0.4200 0.4800
Institutional 0.1750 0.2100 0.2400 0.2500
System Process 0.0000 0.4000 0.4000 0.6000
Unaccounted-for 0.2840 0.3800 0.4000 0.4200
Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
Castle Haynes WTP 04-25-010 Ground 4.0000 2007 Regular
Castle Haynes WTP Expansion 04-25-010 Ground 2.0000 2012 Regular
Well No. 6 04-25-010 Ground 0.8460 2004 Regular
Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 4.8600 4.8600 4.8600 4.8600
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 4.8460 6.8460 6.8460
Total Available Supply (MGD) 4.8600 9.7060 14.4691 14.4691
Service Area Demand 4.0900 5.4950 6.2400 7.3300
Sales 0.0370 0.0980 0.0980 0.0980
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 4.1270 5.5930 6.3380 7.4280
Demand as Percent of Supply 85% 58% 44% 51%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 98 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
