Caldwell Co (Addison Lane)

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Caldwell Co (Addison Lane)   PWSID: 10-14-001
Mailing Address:1385 Fairview Drive SW
Lenoir, NC 28645		Ownership:County

Contact Person:Barry CallowayTitle:Director
Phone:828-757-5757Cell/Mobile:828-217-1889

Secondary Contact:Sierra Wade Phone:828-757-5758
Mailing Address:PO Box 2200
Lenoir, NC 28645		Cell/Mobile:828-217-1889
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Polyvinyl Chloride 2 20.00 %
Polyvinyl Chloride 6 80.00 %
What are the estimated total miles of distribution system lines?   5 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   2
How old are the oldest meters in this system?   9 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Quarterly
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Catawba River (03-1)100 %
County(s)% of Service Population
Caldwell100 %
What was the year-round population served in 2025?   155
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 60 0.0051 0 0.0000
Commercial 0 0.0000 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0003 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0048 May 0.0059 Sep 0.0068
Feb 0.0056 Jun 0.0048 Oct 0.0057
Mar 0.0053 Jul 0.0059 Nov 0.0047
Apr 0.0065 Aug 0.0096 Dec 0.0048

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Alexander County 01-02-020 0.0061 365 0.1000 Yes Yes 2 & 6 Regular
Granite Falls 01-14-030 0.0000 365 0.0000 Yes Yes 6 Emergency

The City of Hickory provides the water via the Alexander County Water System. The contract numbers are based on Caldwell County's agreement with The City of Hickory. In case of emergency, we can receive water from the Town of Granite Falls via our Southeast system.

There is not a specific volume of water committed to the Addison Lane system by the Town of Granite Falls in the event of an emergency.

4. Wastewater Information

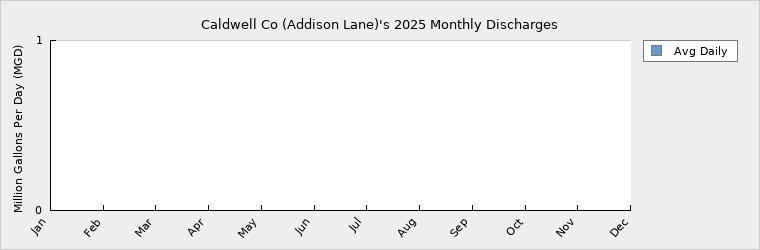

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0000 May 0.0000 Sep 0.0000
Feb 0.0000 Jun 0.0000 Oct 0.0000
Mar 0.0000 Jul 0.0000 Nov 0.0000
Apr 0.0000 Aug 0.0000 Dec 0.0000

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   60
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 155 163 166 169 172 175
Seasonal Population 0 0 0 0 0 0

Residential 0.0051 0.0057 0.0058 0.0059 0.0060 0.0061
Commercial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003
Unaccounted-for 0.0007 0.0007 0.0007 0.0007 0.0007 0.0007
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.1000 0.1000 0.1000 0.1000 0.1000 0.1000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.1000 0.1000 0.1000 0.1000 0.1000 0.1000
Service Area Demand 0.0061 0.0067 0.0068 0.0069 0.0070 0.0071
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0061 0.0067 0.0068 0.0069 0.0070 0.0071
Demand as Percent of Supply 6% 7% 7% 7% 7% 7%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 33 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    NO CHANGES

Are there other demand management practices you will implement to reduce your future supply needs?   In the future, we may consider implementing water-use restrictions during peak flow in summer months by adopting restrictions similar to our Stage 2 drought restrictions, giving certain time frames for high-consumption activities such as lawn watering, pool filling, etc.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   NONE

How does the water system intend to implement the demand management and supply planning components above?   To implement these restrictions, we would have to increase our print budget to send inserts with our April bills, notating that these restrictions will begin on the first day of May in the referenced year. Additionally, we would make this information available on our webpage and social media pages via our County Public Information Officer. These guidelines would be enforced in conjunction with our County law enforcement officers, and we would monitor consumption through our monthly reading system.

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
