Linville Land Harbor

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Linville Land Harbor   PWSID: 01-06-104
Mailing Address:P.O. Box 160
Linville, NC 28646		Ownership:Non-Profit

Contact Person:Scott CarpenterTitle:General Manager
Phone:828-733-8300Cell/Mobile:828-387-7548

Secondary Contact:Cecil L Lewis Phone:828-387-5206
Mailing Address:Po Box 160
Linville, NC 28646		Cell/Mobile:828-387-7548
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Ductile Iron 6-12 10.00 %
Polyvinyl Chloride 2-24 90.00 %
What are the estimated total miles of distribution system lines?   23 Miles
How many feet of distribution lines were replaced during 2024?   40 Feet
How many feet of new water mains were added during 2024?   0 Feet
How many meters were replaced in 2024?   20
How old are the oldest meters in this system?   28 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.2000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Monthly
Does this system have a valve exercise program?   Yes, Monthly
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Other
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Catawba River (03-1)100 %
County(s)% of Service Population
Avery100 %
What was the year-round population served in 2024?   520
What was the seasonal population and months served in 2024? (if applicable)   3,000 ( May Jun Jul Aug Sep )
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 1,488 0.2422 16 0.0001
Commercial 0 0.0000 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0001 MGD

Well #7 meter wasn't working for oct, nov. and dec. We used the information from 2023 water report to fill in an average reading for those months.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.2338 0.3656 May 0.2868 0.3907 Sep 0.2354 0.3178
Feb 0.2743 0.4499 Jun 0.3006 0.4025 Oct 0.2553 0.4656
Mar 0.2480 0.3396 Jul 0.2717 0.3140 Nov 0.2139 0.2845
Apr 0.2741 0.4227 Aug 0.2728 0.4077 Dec 0.2170 0.2654

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
10 0.0352 366 0.0800 0.0720 Regular
3 0.0240 366 0.0324 0.0500 Regular
4 0.0436 366 0.1086 0.0680 Regular
6 0.0542 366 0.1179 0.1000 Regular
7 0.0551 366 0.093 0.1080 Regular
8 0.0442 366 0.1179 0.0630 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
10 500 0 0 0 6 399 Yes
3 240 0 0 0 6 168 Yes
4 200 0 0 0 6 126 Yes
6 400 79 0 0 6 147 Yes
7 490 65 0 0 6 462 Yes
8 700 87 0 0 6 441 Yes
Are ground water levels monitored?   No, As Needed
Does this system have a wellhead protection program?   Yes

Well #7 meter wasn't working for oct, nov. and dec. We used the information from 2023 water report to fill in an average reading for those months.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Linville Land Harbor 0.3130 Yes No Groundwater
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

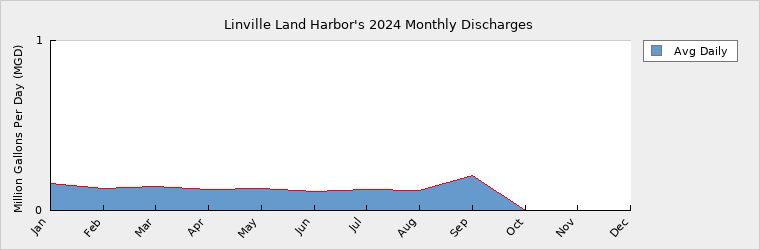

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.1600 May 0.1310 Sep 0.2040
Feb 0.1270 Jun 0.1120 Oct 0.0000
Mar 0.1390 Jul 0.1260 Nov 0.0000
Apr 0.1260 Aug 0.1190 Dec 0.0000

How many sewer connections does this system have?   1,395
How many water service connections with septic systems does this system have?   17
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

Due to hurricane Helene in September the flow recorder equipment was washed away. We are currently building back the building and having the new flow recording equipment installed. This is the reason for the 0 readings for nov, oct, and dec of 2024.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0022756 WWTP 0.2250 0.3000 0.1040 1.2000 Linville River Catawba River (03-1)

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 520 650 650 650 650 650
Seasonal Population 3,000 2,950 2,950 2,950 2,950 2,950

Residential 0.2423 0.2850 0.2850 0.2850 0.2850 0.2850
Commercial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0001 0.0050 0.0050 0.0050 0.0050 0.0050
Unaccounted-for 0.0139 0.0290 0.0290 0.0290 0.0290 0.0290

Well #7 meter wasn't working for oct, nov. and dec. We used the information from 2023 water report to fill in an average reading for those months.

Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.4610 0.4610 0.4610 0.4610 0.4610 0.4610
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.4610 0.4610 0.4610 0.4610 0.4610 0.4610
Service Area Demand 0.2563 0.3190 0.3190 0.3190 0.3190 0.3190
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.2563 0.3190 0.3190 0.3190 0.3190 0.3190
Demand as Percent of Supply 56% 69% 69% 69% 69% 69%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 466 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
