High Shoals

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: High Shoals   PWSID: 01-36-075
Mailing Address:P0 BOX 6
High Shoals, NC 28077		Ownership:Municipality

Contact Person:Brandi StrangeTitle:Public Works Director
Phone:704-735-1651Cell/Mobile:--

Secondary Contact:Brandi Strange Phone:704-735-1651
Mailing Address:PO Box 6
High Shoals, NC 28077		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-12 20.00 %
Ductile Iron 6 40.00 %
Polyvinyl Chloride 3/4 40.00 %
What are the estimated total miles of distribution system lines?   7 Miles
How many feet of distribution lines were replaced during 2024?   0 Feet
How many feet of new water mains were added during 2024?   4,782 Feet
How many meters were replaced in 2024?   0
How old are the oldest meters in this system?   2 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes

NCRWA is used for leak detection as needed.

Water Conservation
What type of rate structure is used?   Flat/Fixed
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
South Fork Catawba River (03-2)100 %
County(s)% of Service Population
Gaston100 %
What was the year-round population served in 2024?   729
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 252 0.0275 0 0.0000
Commercial 8 0.0059 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 2 0.0044 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0010 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0400 May 0.0430 Sep 0.0450
Feb 0.0400 Jun 0.0490 Oct 0.0430
Mar 0.0500 Jul 0.0510 Nov 0.0410
Apr 0.0500 Aug 0.0520 Dec 0.0390

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Lincoln County 01-55-035 0.0450 366 0.1000 2022 Yes Yes 12 Regular

4. Wastewater Information

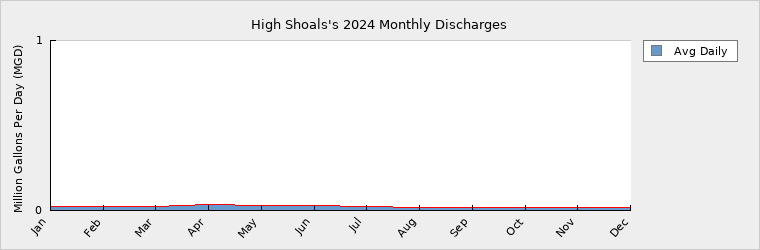

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0225 May 0.0313 Sep 0.0199
Feb 0.0234 Jun 0.0292 Oct 0.0185
Mar 0.0252 Jul 0.0215 Nov 0.0179
Apr 0.0351 Aug 0.0205 Dec 0.0189

How many sewer connections does this system have?   115
How many water service connections with septic systems does this system have?   85
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Two Rivers Utilities 01-36-010 Discharging 0.0236 366 0.1000

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 729 769 801 832 865 890
Seasonal Population 0 0 0 0 0 0

Residential 0.0275 0.0290 0.0304 0.0316 0.0329 0.0338
Commercial 0.0059 0.0062 0.0068 0.0070 0.0074 0.0079
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0044 0.0044 0.0044 0.0044 0.0044 0.0044
System Process 0.0010 0.0010 0.0010 0.0010 0.0010 0.0010
Unaccounted-for 0.0062 0.0065 0.0069 0.0074 0.0080 0.0085
Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.1000 0.1000 0.1000 0.1000 0.1000 0.1000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.1000 0.1000 0.1000 0.1000 0.1000 0.1000
Service Area Demand 0.0450 0.0471 0.0495 0.0514 0.0537 0.0556
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0450 0.0471 0.0495 0.0514 0.0537 0.0556
Demand as Percent of Supply 45% 47% 50% 51% 54% 56%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 38 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   n/a

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   n/a

How does the water system intend to implement the demand management and supply planning components above?   n/a

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
