Robbinsville

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Incomplete

Water System Name: Robbinsville   PWSID: 01-38-010
Mailing Address:P.O. Box 126
Robbinsville, NC 28771		Ownership:Municipality

Contact Person:Lamar WilliamsTitle:ORC
Phone:828-479-2886Cell/Mobile:828-735-0809
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6" 2.00 %
Cast Iron 6-10 15.00 %
Polyvinyl Chloride 2-12 83.00 %
What are the estimated total miles of distribution system lines?   28 Miles
How many feet of distribution lines were replaced during 2002?   7,000 Feet
How many feet of new water mains were added during 2002?   3,500 Feet
How many meters were replaced in 2002?   100
How old are the oldest meters in this system?   5 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.7500 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Once a Month
Does this system have a valve exercise program?   Yes, Monthly
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Other
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Little Tennessee River (07-1)0 %
County(s)% of Service Population
Graham0 %
What was the year-round population served in 2002?   2,800
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 965 0.2030 19 0.0070
Commercial 145 0.0800 7 0.0080
Industrial 5 0.0800 0 0.0000
Institutional 12 0.0300 3 0.0010

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0160 MGD

After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.4160 0.5070 May 0.3960 0.5230 Sep 0.4430 0.4830
Feb 0.4120 0.5540 Jun 0.4390 0.4640 Oct 0.4210 0.4630
Mar 0.4280 0.4720 Jul 0.4290 0.4680 Nov 0.4100 0.4930
Apr 0.4070 0.5030 Aug 0.4590 0.5400 Dec 0.4360 0.5180

After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn.

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Burgan Creek 0.0000 365 0.0000 0.0700 F 0.0000
Long Creek 0.0000 365 0.0000 0.0900 F 0.0000
Rock Creek 0.3720 365 0.0000 0.0400 F 0.0000
Tallulah Creek 0.0450 365 0.5000 0.9000 F 0.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Burgan Creek 1 Yes Little Tennessee River (07-1) Graham Regular
Long Creek 1 Yes Little Tennessee River (07-1) Graham Regular
Rock Creek 1 Yes Little Tennessee River (07-1) Graham Regular
Tallulah Creek 15 Yes Little Tennessee River (07-1) Graham Regular
What is this system's off-stream raw water supply storage capacity?   1 Million gallons
Are surface water sources monitored?   ,
Are you required to maintain minimum flows downstream of its intake or dam?   No
Does this system anticipate transferring surface water between river basins?   No

Long, Burgan and Rock Creek flows to a 2 mg impoundment. Long and Burgan Creek impoundment capacity is unknown. This serves the treatment plant which is the primary plant.The Tallulah plant is operated 2 hours per day so it can stay online for emergency use. After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Robbinsville 1 Plant 0.5000 Yes Yes Long, Bergin & Rock Creek
Robbinsville 2 Plant 0.5000 Yes Yes Tallulah Creek
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2002?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2002?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

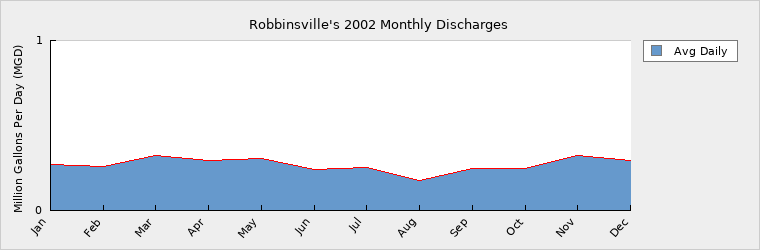

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.2680 May 0.3060 Sep 0.2470
Feb 0.2560 Jun 0.2410 Oct 0.2460
Mar 0.3250 Jul 0.2540 Nov 0.3210
Apr 0.2920 Aug 0.1740 Dec 0.2960

How many sewer connections does this system have?   607
How many water service connections with septic systems does this system have?   520
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0025879 0.6300 0.6300 0.2610 0.6840 Long Creek Little Tennessee River (07-1)
NC0083071 0.0000 0.0100 0.0080 0.0000 Rock Creek Little Tennessee River (07-1)

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 2,800 2,814 2,844 2,900
Seasonal Population 0 0 0 0

Residential 0.2100 0.2120 0.2150 0.2200
Commercial 0.0880 0.0890 0.0900 0.0950
Industrial 0.0800 0.0820 0.0830 0.0850
Institutional 0.0310 0.0320 0.0330 0.0350
System Process 0.0160 0.0170 0.0180 0.0200
Unaccounted-for -0.008 0.1060 0.1070 0.1100
Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 1.1000 1.1000 1.1000 1.1000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 1.1000 1.1000 1.1000 1.1000
Service Area Demand 0.4170 0.5380 0.5460 0.5650
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.4170 0.5380 0.5460 0.5650
Demand as Percent of Supply 38% 49% 50% 51%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 75 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
