Lake Santeetlah

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Incomplete

Water System Name: Lake Santeetlah   PWSID: 01-38-105
Mailing Address:16 Marina Drive
Robbinsville, NC 28771		Ownership:Municipality

Contact Person:Lamar WilliamsTitle:PWD
Phone:828-479-8190Cell/Mobile:--

Secondary Contact:Kim Matheson Phone:828-479-8190
Mailing Address:16 Marnia Drive
Robbinsville, NC 28771		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Ductile Iron 6 1.00 %
Polyvinyl Chloride 2-6 99.00 %
What are the estimated total miles of distribution system lines?   8 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   0 Feet
How many meters were replaced in 2002?   0
How old are the oldest meters in this system?   10 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.1260 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

Ductile Iron = 0.5%, PVC = 99.5%

Programs
Does this system have a program to work or flush hydrants?   Yes, 2-6 Months
Does this system have a valve exercise program?   No, None
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Flat
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Little Tennessee River (07-1)0 %
County(s)% of Service Population
Graham0 %
What was the year-round population served in 2002?   60
What was the seasonal population and months served in 2002? (if applicable)   520 ( Jun Jul Aug )
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 165 0.0090 0 0.0000
Commercial 0 0.0000 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0010 MGD

System Process Water = 40,000 to 50,000 gallons per month

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0260 0.0280 May 0.0270 0.0360 Sep 0.0270 0.0350
Feb 0.0180 0.0230 Jun 0.0240 0.0350 Oct 0.0260 0.0320
Mar 0.0230 0.0330 Jul 0.0270 0.0360 Nov 0.0270 0.0340
Apr 0.0270 0.0350 Aug 0.0260 0.0360 Dec 0.0270 0.0330

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.0120 365 0.018 0.0360 Regular
2 0.0000 0 0.000 0.0270 Regular
3 0.0060 365 0.008 0.0180 Regular
4 0.0000 0 0.000 0.0180 Regular
5 0.0070 365 0.010 0.0190 Regular
6 0.0000 0 0.000 0.0290 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 307 52 0 0 6 276 Yes
2 287 52 0 0 6 254 Yes
3 407 52 0 0 6 380 Yes
4 407 52 0 0 6 380 Yes
5 547 52 0 0 6 486 Yes
6 567 65 0 0 6 520 Yes
Are ground water levels monitored?   Yes, Semi-Annually
Does this system have a wellhead protection program?   No

4. Wastewater Information

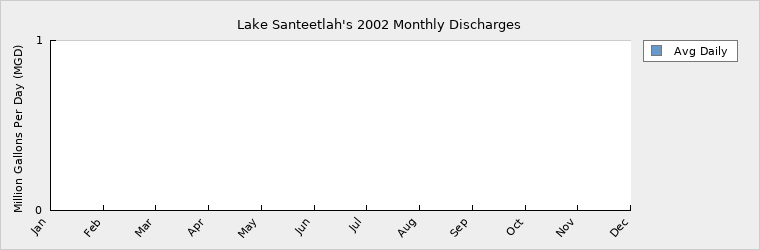

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0000 May 0.0000 Sep 0.0000
Feb 0.0000 Jun 0.0000 Oct 0.0000
Mar 0.0000 Jul 0.0000 Nov 0.0000
Apr 0.0000 Aug 0.0000 Dec 0.0000

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   165
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 60 65 70 80
Seasonal Population 520 566 616 671

Residential 0.0090 0.0100 0.0110 0.0120
Commercial 0.0000 0.0000 0.0000 0.0000
Industrial 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000
System Process 0.0010 0.0010 0.0010 0.0020
Unaccounted-for 0.0150 0.0170 0.0180 0.0190
Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.1470 0.1470 0.1470 0.1470
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.1470 0.1470 0.1470 0.1470
Service Area Demand 0.0250 0.0280 0.0300 0.0330
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0250 0.0280 0.0300 0.0330
Demand as Percent of Supply 17% 19% 20% 22%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 150 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

See notes on well #1 which is not figured into the supply.

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?  Monthly water usage reports, billing reports.

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
