Bakersville

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Bakersville   PWSID: 01-61-015
Mailing Address:P O Box 53
Bakersville, NC 28705		Ownership:Municipality

Contact Person:Charles E. VinesTitle:Mayor
Phone:828-688-2113Cell/Mobile:--

Secondary Contact:Troy Burleson Phone:828-385-0868
Mailing Address:1428 Cub Creek Rd
Bakersville, NC 28705		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Ductile Iron 6-8 15.00 %
Other 1-2 5.00 %
Polyvinyl Chloride 2-8 80.00 %
What are the estimated total miles of distribution system lines?   10 Miles
How many feet of distribution lines were replaced during 2024?   0 Feet
How many feet of new water mains were added during 2024?   0 Feet
How many meters were replaced in 2024?   5
How old are the oldest meters in this system?   6 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   6
What is this system's finished water storage capacity?   0.2660 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, 2 Years or More
Does this system have a valve exercise program?   Yes, 2 Years or More
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Nolichucky River (05-1)100 %
County(s)% of Service Population
Mitchell100 %
What was the year-round population served in 2024?   464
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 230 0.0200 0 0.0000
Commercial 60 0.0060 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 10 0.0020 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0336 May 0.0356 Sep 0.0306
Feb 0.0336 Jun 0.0355 Oct 0.0403
Mar 0.0316 Jul 0.0372 Nov 0.0250
Apr 0.0368 Aug 0.0354 Dec 0.0242

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Linda Ln. Well W04 0.0040 240 0.0510 Regular
Reservoir Well W01 0.0082 300 0.0150 Regular
Willis Cove Well W07 0.0225 366 0.3000 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Linda Ln. Well W04 500 360 Yes
Reservoir Well W01 900 21 0 0 8 360 Yes
Willis Cove Well W07 Yes
Are ground water levels monitored?   Yes, Daily
Does this system have a wellhead protection program?   Yes
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Linda Ln. Well W04 0.1080 Yes Yes ground water, chlorinated
Reservoir Well W01 0.0360 Yes Yes ground water, chlorinated
Willis Cove Well W07 0.1500 Yes Yes ground water, chlorinated and polyphosphate
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

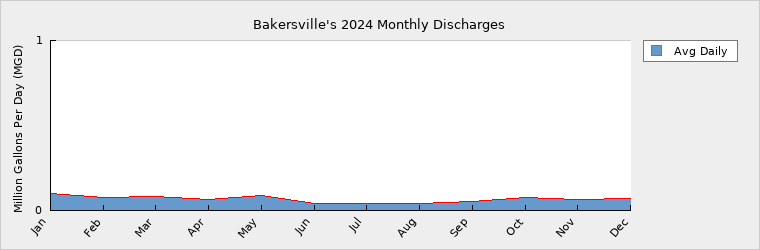

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.1020 May 0.0860 Sep 0.0540
Feb 0.0750 Jun 0.0420 Oct 0.0770
Mar 0.0800 Jul 0.0420 Nov 0.0620
Apr 0.0660 Aug 0.0390 Dec 0.0690

How many sewer connections does this system have?   237
How many water service connections with septic systems does this system have?   35
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0025461 WWTP 0.2000 0.2000 0.0667 0.4000 Cane Creek French Broad River (05-2)

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 464 480 500 520 540 560
Seasonal Population 0 0 0 0 0 0

Residential 0.0200 0.0240 0.0250 0.0260 0.0270 0.0280
Commercial 0.0060 0.0060 0.0061 0.0062 0.0062 0.0063
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0020 0.0020 0.0020 0.0021 0.0021 0.0021
System Process 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.0038 0.0080 0.0083 0.0086 0.0088 0.0091
Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.3660 0.3660 0.3660 0.3660 0.3660 0.3660
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.3660 0.3660 0.3660 0.3660 0.3660 0.3660
Service Area Demand 0.0318 0.0400 0.0414 0.0429 0.0441 0.0455
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0318 0.0400 0.0414 0.0429 0.0441 0.0455
Demand as Percent of Supply 9% 11% 11% 12% 12% 12%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 43 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
