Jonesville

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Jonesville   PWSID: 02-99-010
Mailing Address:1503 North Carolina Hwy 67
Jonesville, NC 28642		Ownership:Municipality

Contact Person:Schyler RameyTitle:Water Plant ORC
Phone:336-835-2250Cell/Mobile:336-401-1127

Secondary Contact:Schyler Ramey/ORC Phone:336-835-2250
Mailing Address:399 Shaw Street
Jonesville, NC 28642		Cell/Mobile:336-401-1127
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-8 20.00 %
Cast Iron 2-8 30.00 %
Ductile Iron 6-12 15.00 %
Galvanized Iron 2 2.00 %
Polyvinyl Chloride 2-12 33.00 %
What are the estimated total miles of distribution system lines?   50 Miles
How many feet of distribution lines were replaced during 2024?   0 Feet
How many feet of new water mains were added during 2024?   0 Feet
How many meters were replaced in 2024?   53
How old are the oldest meters in this system?   29 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   7
What is this system's finished water storage capacity?   1.5400 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   No, As Needed
Does this system have a valve exercise program?   No, As Needed
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes

NCRWA is used for leak detection.

Water Conservation
What type of rate structure is used?   Flat/Fixed
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Yadkin River (18-1)100 %
County(s)% of Service Population
Yadkin100 %
What was the year-round population served in 2024?   2,332
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 1,067 0.0899 0 0.0000
Commercial 134 0.0699 0 0.0000
Industrial 5 0.0100 0 0.0000
Institutional 23 0.0470 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0050 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Elkin 02-86-020 0.0000 0 0.0000 2047 No Yes 6 Emergency
Yadkin County 30-99-029 0.0430 366 0.2000 2047 Yes Yes 12 -8 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.4600 0.0000 May 0.4500 0.0000 Sep 0.4390 0.0000
Feb 0.4390 0.0000 Jun 0.4620 0.0000 Oct 0.4370 0.0000
Mar 0.4250 0.0000 Jul 0.4770 0.0000 Nov 0.4110 0.0000
Apr 0.4390 0.0000 Aug 0.4910 0.0000 Dec 0.4160 0.0000

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Yadkin River 0.4460 366 0.0000 40.8240 F 0.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Yadkin River 866 No Yadkin River (18-1) Yadkin Regular
What is this system's off-stream raw water supply storage capacity?   8 Million gallons
Are surface water sources monitored?   Yes, Daily
Are you required to maintain minimum flows downstream of its intake or dam?   No
Does this system anticipate transferring surface water between river basins?   No
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Town of Elkin 02-86-020 0.0000 0 0.0000 2047 No Yes 8-12 Emergency
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Jonesville WP 1.0000 No Yes Yadkin River
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

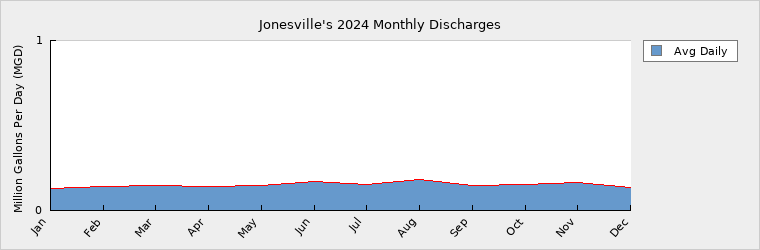

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.1290 May 0.1480 Sep 0.1490
Feb 0.1400 Jun 0.1730 Oct 0.1550
Mar 0.1460 Jul 0.1550 Nov 0.1660
Apr 0.1430 Aug 0.1810 Dec 0.1380

How many sewer connections does this system have?   1,041
How many water service connections with septic systems does this system have?   30
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0089389 WTP 1.0000 1.0000 0.0000 Yadkin River (18-1) Yadkin River (18-1)
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Yadkin Valley Sewer Authority 00-00-000 Discharging 0.1520 366 0.5000

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 2,332 2,369 2,431 2,488 2,547 2,607
Seasonal Population 0 0 0 0 0 0

Residential 0.0899 0.0913 0.0937 0.0959 0.0981 0.1000
Commercial 0.0699 0.0709 0.0729 0.0746 0.0763 0.0781
Industrial 0.0100 0.0100 0.0100 0.0100 0.0100 0.0100
Institutional 0.0470 0.0477 0.0489 0.0501 0.0513 0.0525
System Process 0.0050 0.0050 0.0050 0.0050 0.0050 0.0050
Unaccounted-for 0.1812 -0.2087 -0.2139 -0.2186 -0.2233 -0.2279
Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 40.8240 40.8240 40.8240 40.8240 40.8240 40.8240
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 40.8240 40.8240 40.8240 40.8240 40.8240 40.8240
Service Area Demand 0.4030 0.0162 0.0166 0.0170 0.0174 0.0177
Sales 0.0430 0.2000 0.2000 0.2000 0.2000 0.2000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.4460 0.2162 0.2166 0.2170 0.2174 0.2177
Demand as Percent of Supply 1% 1% 1% 1% 1% 1%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 39 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
