Dublin

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Dublin   PWSID: 03-09-025
Mailing Address:P.O. Box 36
Dublin, NC 28332		Ownership:Municipality

Contact Person:Jonathan WardTitle:Public Works Director
Phone:910-862-4301Cell/Mobile:--

Secondary Contact:Paul Langfield Phone:336-309-9363
Mailing Address:
, 		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Cast Iron 6 80.00 %
Galvanized Iron 6 20.00 %
What are the estimated total miles of distribution system lines?   8 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   0 Feet
How many meters were replaced in 2002?   20
How old are the oldest meters in this system?   30 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   6
What is this system's finished water storage capacity?   0.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, 2-6 Months
Does this system have a valve exercise program?   Yes, Every 6 Months
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Cape Fear River (02-3)0 %
Lumber River (09-1)0 %
County(s)% of Service Population
Bladen0 %
What was the year-round population served in 2002?   447
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 226 0.0270 0 0.0000
Commercial 31 0.0010 0 0.0000
Industrial 3 0.0070 0 0.0000
Institutional 8 0.0030 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

Service connections and population based on NC PWSS information. Water use by type and supply from wells is estimated.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0350 0.0590 May 0.0370 0.1160 Sep 0.0380 0.0590
Feb 0.0340 0.0700 Jun 0.0370 0.0570 Oct 0.0340 0.0970
Mar 0.0350 0.0570 Jul 0.0360 0.0660 Nov 0.0490 0.2610
Apr 0.0350 0.0610 Aug 0.0440 0.1670 Dec 0.0320 0.0530

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Well 2 0.0400 365 0.000 0.0500 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Well 2 449 35 0 0 8 0 Yes
Are ground water levels monitored?   Yes, Annually
Does this system have a wellhead protection program?   Und

Emergency water supply for Dublin is a 8 inch interconnection with Bladen County. Average daily withdrawal from well #3 is estimated, Dublin estimates the 12-hour supply is 50,000 gpd.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Bladen Co WD (West Bladen) 03-09-055 0.0000 0 0.0000 8 Emergency

4. Wastewater Information

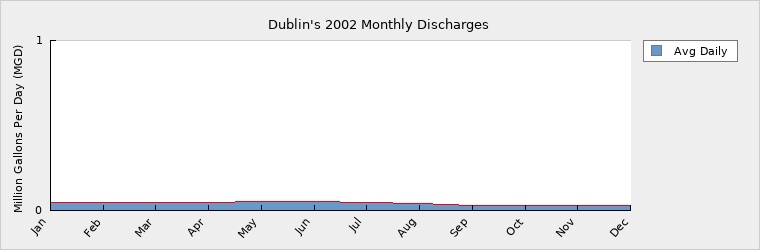

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0460 May 0.0530 Sep 0.0310
Feb 0.0490 Jun 0.0550 Oct 0.0320
Mar 0.0480 Jul 0.0490 Nov 0.0310
Apr 0.0490 Aug 0.0430 Dec 0.0300

How many sewer connections does this system have?   230
How many water service connections with septic systems does this system have?   38
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

Dublin wasterwater discharge to Elizabethtown is estimated based on Elizabethtown WWTP information.

Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Town of Elizabethtown 03-09-010 Discharging 0.0430 365 0.0600

Wasterwater discharge estimated based on Elizabethtown WWTP information.

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 447 450 450 450
Seasonal Population 0 0 0 0

Residential 0.0270 0.0270 0.0280 0.0290
Commercial 0.0010 0.0030 0.0040 0.0050
Industrial 0.0070 0.0070 0.0080 0.0090
Institutional 0.0030 0.0030 0.0030 0.0030
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.0020 0.0020 0.0020 0.0020

Unaccounted for water projected to be about 5 percent.

Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0500 0.0500 0.0500 0.0500
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.0500 0.0500 0.0500 0.0500
Service Area Demand 0.0400 0.0420 0.0450 0.0480
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0400 0.0420 0.0450 0.0480
Demand as Percent of Supply 80% 84% 90% 96%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 60 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Town of Dublin is working to develop additional water supply for regular use.

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
