White Lake

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: White Lake   PWSID: 03-09-030
Mailing Address:PMB 7250 1879 White Lake Drive
White Lake, NC 28337		Ownership:Municipality

Contact Person:Kevin TaylorTitle:PWD
Phone:910-862-4800Cell/Mobile:--

Secondary Contact:John Malone Phone:--
Mailing Address:
, NC 		Cell/Mobile:336-780-0786
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-8 32.00 %
Ductile Iron 6 4.00 %
Galvanized Iron 2 33.00 %
Polyvinyl Chloride 2-6 31.00 %
What are the estimated total miles of distribution system lines?   18 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   0 Feet
How many meters were replaced in 2002?   75
How old are the oldest meters in this system?   6 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.1250 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   No, None
Does this system have a valve exercise program?   No, None
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Cape Fear River (02-3)0 %
County(s)% of Service Population
Bladen0 %
What was the year-round population served in 2002?   529
What was the seasonal population and months served in 2002? (if applicable)   3,500 ( Jun Jul Aug )
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 893 0.0860 0 0.0000
Commercial 74 0.1100 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 2 0.0110 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

Population served (529) year-round based on 2000 census. Population serve(1010) reported in the 1997 LWSP was in error.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.1220 0.1830 May 0.2650 0.5120 Sep 0.2040 0.3150
Feb 0.1080 0.1560 Jun 0.3690 0.4550 Oct 0.1720 0.2580
Mar 0.1140 0.1700 Jul 0.4120 0.7310 Nov 0.1270 0.1430
Apr 0.1920 0.3000 Aug 0.2910 0.4510 Dec 0.1240 0.1490

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Well 100 A 0.0660 365 0.209 0.2950 Regular
Well L 0.0610 365 0.351 0.2950 Regular
Well P 0.0850 365 0.259 0.3600 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Well 100 A 395 210 210 392 8 190 Yes
Well L 395 268 168 363 8 148 Yes
Well P 356 154 154 349 10 140 Yes
Are ground water levels monitored?   Yes, Annually
Does this system have a wellhead protection program?   No
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Bladen Co WD (East Bladen) 03-09-060 0.0000 0 0.0000 8 Emergency

4. Wastewater Information

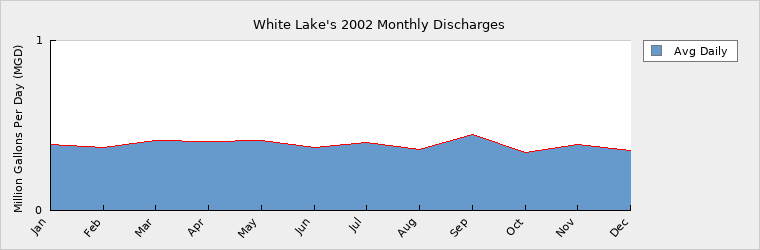

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.3880 May 0.4100 Sep 0.4450
Feb 0.3700 Jun 0.3700 Oct 0.3400
Mar 0.4100 Jul 0.4000 Nov 0.3900
Apr 0.4070 Aug 0.3600 Dec 0.3550

How many sewer connections does this system have?   967
How many water service connections with septic systems does this system have?   2
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 529 581 640 704
Seasonal Population 3,500 3,500 3,500 3,500

Residential 0.0860 0.1670 0.1670 0.1670
Commercial 0.1100 0.2140 0.2140 0.2140
Industrial 0.0000 0.0000 0.0000 0.0000
Institutional 0.0110 0.0210 0.0210 0.0210
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.0050 0.0100 0.0100 0.0100

Projected water demand based on summer demand for the month of July 2002. Projected water demand based on summer use for the month of July 2002 (0.412 mgd) and seasonal popuiation of 3500.

Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
Well 4 03-09-030 Ground 0.0000 2004 Regular
Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.9500 0.9500 0.9500 0.9500
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.9500 0.9500 0.9500 0.9500
Service Area Demand 0.2120 0.4120 0.4120 0.4120
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.2120 0.4120 0.4120 0.4120
Demand as Percent of Supply 22% 43% 43% 43%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 163 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Projected water demand based on summer use for the month of July 2002 (0.412 mgd) with seasonal popuiation continuing to be 3500.

Proposed well #4 to be completed by 2004.

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   Need another well to offset peak demand requirements.

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
