Smithfield

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Smithfield   PWSID: 03-51-010
Mailing Address:PO Box 761
Smithfield, NC 27577		Ownership:Municipality

Contact Person:Ted CredleTitle:Public Utility Director
Phone:919-934-2798Cell/Mobile:--

Secondary Contact:Steve Lane Phone:919-934-2661
Mailing Address:515 N. 2nd Street
Smithfield, NC 27577		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-16 22.40 %
Cast Iron 6-8 21.80 %
Ductile Iron 6-24 24.10 %
Galvanized Iron 1-2 7.60 %
Polyvinyl Chloride 2-12 24.10 %
What are the estimated total miles of distribution system lines?   119 Miles
How many feet of distribution lines were replaced during 2024?   500 Feet
How many feet of new water mains were added during 2024?   18,275 Feet
How many meters were replaced in 2024?   128
How old are the oldest meters in this system?   21 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   75
What is this system's finished water storage capacity?   3.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

We have 2 Clear well's ( 1mil each) and 3 water tanks in the system that equals (1 mil).

Programs
Does this system have a program to work or flush hydrants?   Yes, Weekly
Does this system have a valve exercise program?   Yes, As Needed
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Neuse River (10-1)100 %
County(s)% of Service Population
Johnston100 %
What was the year-round population served in 2024?   12,900
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 4,035 0.5090 0 0.0000
Commercial 592 0.5425 0 0.0000
Industrial 16 0.0297 0 0.0000
Institutional 58 0.0210 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0675 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Johnston County Utilities 03-51-070 2.9600 366 3.5000 2033 Yes Yes 16 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 4.5290 5.7460 May 5.0750 6.0790 Sep 4.5560 5.6170
Feb 4.4670 6.0250 Jun 5.0800 6.5240 Oct 4.5950 6.3000
Mar 4.2930 5.2440 Jul 5.2590 6.1540 Nov 4.0120 4.9840
Apr 4.8010 5.8960 Aug 5.1460 6.3390 Dec 4.4650 5.9740

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Neuse River Peal Reservoir 4.6900 366 6.3390 8.3000 T 16.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Neuse River Peal Reservoir 1,200 Yes Neuse River (10-1) Johnston Regular
What is this system's off-stream raw water supply storage capacity?   24 Million gallons
Are surface water sources monitored?   Yes, Daily
Are you required to maintain minimum flows downstream of its intake or dam?   No
Does this system anticipate transferring surface water between river basins?   No
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Johnston County 03-51-070 0.0000 0 0.0000 2033 Yes No 8 Emergency

We didn't purchase any for this system this year.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Smithfield Water Plant 8.3000 Yes Yes Neuse River
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

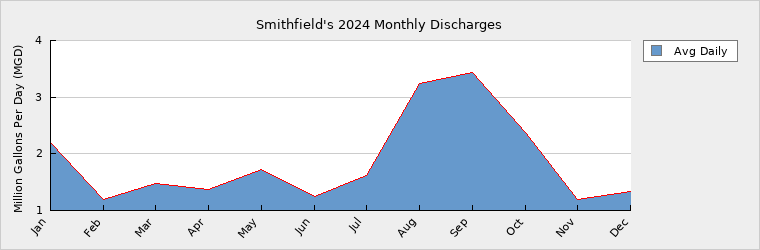

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 2.1940 May 1.7290 Sep 3.4430
Feb 1.2020 Jun 1.2520 Oct 2.3680
Mar 1.4780 Jul 1.6150 Nov 1.1970
Apr 1.3720 Aug 3.2390 Dec 1.3380

How many sewer connections does this system have?   5,282
How many water service connections with septic systems does this system have?   123
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

We pipe our sewer to Johnston County Sewer Plant and they just built a new Waste Water Plant

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0083348 WTP 0.1870 0.3000 0.1089 0.2730 Buffalo Creek Neuse River (10-1)

Permit NC0083348 is specific to the Smithfield WTP process water discharged into Buffalo Creek. Any amount associated with this permit should not be included in any calculation or flow value sent to JoCo waste plant. It is not included in the monthly averages.

Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Johnston County 03-51-070 Discharging 1.8689 366 3.5000

If we need more discharge we can get it .Johnston County has a new sewer plant in operation.

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 12,900 14,190 15,609 17,170 18,886 20,775
Seasonal Population 0 0 0 0 0 0

Residential 0.5090 0.5397 0.5937 0.6531 0.7184 0.7902
Commercial 0.5425 0.5696 0.5980 0.6114 0.6726 0.7398
Industrial 0.0297 0.0312 0.0327 0.0343 0.0360 0.0378
Institutional 0.0210 0.0229 0.0252 0.0278 0.0305 0.0336
System Process 0.0675 0.0708 0.0720 0.0730 0.0740 0.0750
Unaccounted-for 0.5603 0.5777 0.6181 0.6584 0.7197 0.7871
Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 8.3000 8.3000 8.3000 8.3000 8.3000 8.3000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 8.3000 8.3000 8.3000 8.3000 8.3000 8.3000
Service Area Demand 1.7300 1.8119 1.9397 2.0580 2.2512 2.4635
Sales 2.9600 3.5000 3.5000 3.5000 3.5000 3.5000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 4.6900 5.3119 5.4397 5.5580 5.7512 5.9635
Demand as Percent of Supply 57% 64% 66% 67% 69% 72%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 39 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    no changes for now.

Are there other demand management practices you will implement to reduce your future supply needs?   no we increased our Water Plant from 6.2 to 8.3 to meet any demand on Smithfield for the future.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   none at this time.

How does the water system intend to implement the demand management and supply planning components above?   Johnston County is building a new plant so if we have to decrease sales we can.

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?  none

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   Working on water quality issues like Pfas and Pfoa. We may need a GAC unit,still in planning stages.
