Moore County Public Utilities-Seven Lakes

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Moore County Public Utilities-Seven Lakes   PWSID: 03-63-117
Mailing Address:P.O. Box 1927
Carthage, NC 28327		Ownership:County

Contact Person:Randy G. Gould, PETitle:Public Works Director
Phone:910-947-4300Cell/Mobile:--

Secondary Contact:Jon Horne Phone:910-947-4314
Mailing Address:P.O. Box 1927
Carthage, NC 28327		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 12 1.00 %
Ductile Iron 6-12 3.00 %
Polyvinyl Chloride 2-8 96.00 %
What are the estimated total miles of distribution system lines?   60 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   52,800 Feet
How many meters were replaced in 2002?   24
How old are the oldest meters in this system?   30 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   1,888
What is this system's finished water storage capacity?   0.3000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Once a Month
Does this system have a valve exercise program?   Yes, 2-5 Years
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Increasing
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Cape Fear River (02-3)0 %
Lumber River (09-1)0 %
Deep River (02-2)0 %
County(s)% of Service Population
Moore0 %
What was the year-round population served in 2002?   3,567
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 1,795 0.3030 0 0.0000
Commercial 86 0.0140 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 7 0.0020 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0010 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.2530 0.2790 May 0.4670 0.6580 Sep 0.2610 0.3110
Feb 0.2540 0.3200 Jun 0.5190 0.6540 Oct 0.2590 0.3350
Mar 0.2700 0.3460 Jul 0.4360 0.5490 Nov 0.2530 0.2910
Apr 0.4000 0.5740 Aug 0.3410 0.6290 Dec 0.2570 0.3220

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
02 0.0000 0 0.000 0.0140 1997 Emergency
01 0.0290 365 0.068 0.0300 Regular
13 0.0000 0 0.000 0.0080 2001 Emergency
03 0.0260 365 0.061 0.0300 Regular
04 0.0070 365 0.017 0.0080 Regular
05 0.0000 0 0.000 0.0060 2001 Emergency
05A 0.0000 0 0.000 0.0030 2001 Emergency
06 0.0340 362 0.075 0.0400 Regular
06A 0.0130 356 0.024 0.0150 Regular
07A 0.0210 365 0.038 0.0240 Regular
08 0.0100 365 0.018 0.0150 Regular
09 0.0000 0 0.000 0.0060 2001 Emergency
10 0.0000 0 0.000 0.0290 1996 Emergency
11 0.0130 365 0.024 0.0150 Regular
11A 0.0260 365 0.047 0.0300 Regular
12 0.0120 365 0.024 0.0150 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
02 136 73 73 121 6 126 Yes
01 135 71 71 117 6 107 Yes
13 131 76 76 123 6 126 Yes
03 170 60 60 150 6 126 Yes
04 140 60 60 120 4 80 Yes
05 158 59 59 137 6 100 Yes
05A 100 77 77 92 6 95 Yes
06 290 75 75 193 6 170 Yes
06A 145 53 53 81 6 84 Yes
07A 133 75 75 118 6 80 Yes
08 100 66 66 81 6 70 Yes
09 121 109 109 121 6 105 Yes
10 96 65 65 75 6 75 Yes
11 113 85 85 100 6 85 Yes
11A 127 90 90 112 6 88 Yes
12 147 124 124 134 6 126 Yes
Are ground water levels monitored?   Yes, Semi-Annually
Does this system have a wellhead protection program?   No

These wells are for emergency use only.
Wells 2,5,5A,9,9A,10,13 off line.
Wells 2 & 10 off line due to undesirable water quality (iron & manganese)
Wells 5,5A,9,9A & 13 off line in 2001 due to very low safe yield(total of 40 gpm)and 211 booster station on line.
Observation wells only.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Moore Co. Pub. Util.-Pinehurst 03-63-108 0.1400 365 0.2500 12 Regular

No contract, each system is owned by Moore County.

4. Wastewater Information

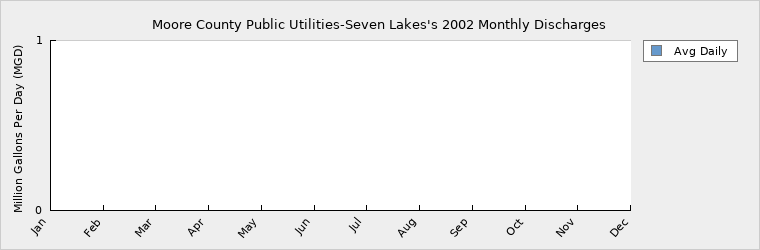

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0000 May 0.0000 Sep 0.0000
Feb 0.0000 Jun 0.0000 Oct 0.0000
Mar 0.0000 Jul 0.0000 Nov 0.0000
Apr 0.0000 Aug 0.0000 Dec 0.0000

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   1,888
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

None all septic tanks.

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 3,567 4,096 5,860 7,624
Seasonal Population 0 0 0 0

Residential 0.3030 0.3420 0.4450 0.5790
Commercial 0.0140 0.0160 0.0210 0.0270
Industrial 0.0000 0.0000 0.0000 0.0000
Institutional 0.0020 0.0020 0.0030 0.0040
System Process 0.0010 0.0010 0.0010 0.0010
Unaccounted-for 0.0104 0.0120 0.0160 0.0210

No industrial.

Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
Northwest Moore Water District 00-00-000 Purchase 0.3750 2010 Regular
Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.2220 0.2220 0.2220 0.2220
Purchases 0.2500 0.2500 0.2500 0.2500
Future Supplies 0.3750 0.3750 0.3750
Total Available Supply (MGD) 0.4720 0.8470 0.8470 0.8470
Service Area Demand 0.3304 0.3730 0.4860 0.6320
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.3304 0.3730 0.4860 0.6320
Demand as Percent of Supply 70% 44% 57% 75%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 85 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  Yes

What major water supply reports or studies were used for planning?  1995 Water Resources Study by Hazen and Sawyer
1998 Analysis of Water Resources of Moore County by Hobbs, Upchurch & Associates

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   More water storage by 2030.
