Lumberton

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Lumberton   PWSID: 03-78-010
Mailing Address:1451 Lowery St.
Lumberton, NC 28358		Ownership:Municipality

Contact Person:Henry HarperTitle:Chief Operator
Phone:910-671-3857Cell/Mobile:910-301-1278
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 4-16 20.00 %
Cast Iron 2-16 25.00 %
Ductile Iron 6-24 15.00 %
Galvanized Iron 1-2 5.00 %
Polyvinyl Chloride 2-12 35.00 %
What are the estimated total miles of distribution system lines?   251 Miles
How many feet of distribution lines were replaced during 2024?   5,438 Feet
How many feet of new water mains were added during 2024?   0 Feet
How many meters were replaced in 2024?   171
How old are the oldest meters in this system?   37 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   469
What is this system's finished water storage capacity?   7.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, As Needed
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Flat/Fixed
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Lumber River (09-1)100 %
County(s)% of Service Population
Robeson100 %
What was the year-round population served in 2024?   19,000
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 7,887 1.2382 0 0.0000
Commercial 1,720 0.7568 0 0.0000
Industrial 6 0.0883 0 0.0000
Institutional 8 0.0234 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   2.2000 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Robeson Co 03-78-055 0.0000 0 0.5000 2029 Yes Yes 8 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 4.7000 6.3000 May 4.3000 5.4000 Sep 4.3000 5.4000
Feb 4.2000 4.8000 Jun 4.9000 5.8000 Oct 4.3000 5.1000
Mar 4.3000 5.1000 Jul 5.0000 5.9000 Nov 4.4000 5.2000
Apr 4.3000 5.1000 Aug 4.9000 5.7000 Dec 4.4000 5.7000

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.0000 0 0 0.1080 2025 Emergency
2 0.0000 0 0 0.0000 2018 Regular
3 0.0000 0 0 0.0000 2000 Regular
4 0.5843 140 0.58 0.2880 Regular
5 0.8651 183 0.84 0.5760 Regular
6 0.0000 0 0 0.3600 Regular
7 0.6405 183 0.6527 0.4896 Regular
8 0.2022 140 0.22 0.4320 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 104 40 70 90 12 0 Yes
2 90 40 65 115 10 0 No
3 122 27 0 0 12 0 No
4 160 40 70 150 12 0 Yes
5 163 40 70 155 12 0 Yes
6 160 40 70 150 12 0 Yes
7 162 40 70 155 12 0 Yes
8 138 84 84 134 12 Yes
Are ground water levels monitored?   No,
Does this system have a wellhead protection program?   No
Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Lumber River none 3.5000 366 6.3000 16.0000 F 0.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Lumber River none 714 Yes Lumber River (09-1) Robeson Regular
What is this system's off-stream raw water supply storage capacity?   16 Million gallons
Are surface water sources monitored?   Yes, Daily
Are you required to maintain minimum flows downstream of its intake or dam?   No
Does this system anticipate transferring surface water between river basins?   No
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Robeson Co 03-78-055 0.0000 0 0.5000 2029 Yes Yes 8 Emergency
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
City of Lumberton Water Plant 16.0000 Yes Yes Lumber River
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

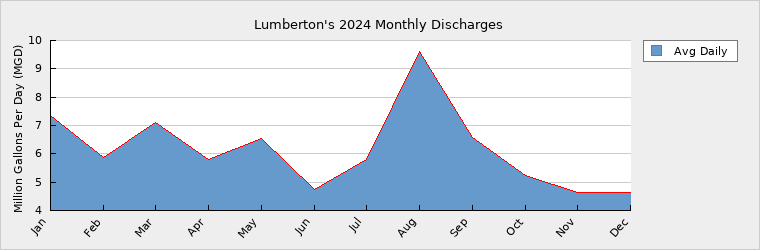

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 7.3600 May 6.5400 Sep 6.5700
Feb 5.8800 Jun 4.7400 Oct 5.2300
Mar 7.1000 Jul 5.7900 Nov 4.6500
Apr 5.7900 Aug 9.6100 Dec 4.6400

How many sewer connections does this system have?   9,631
How many water service connections with septic systems does this system have?   384
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0024571 WWTP 20.0000 20.0000 6.2000 17.0000 Lumber River Lumber River (09-1)
NCG110000 WTP 0.0000 0.0000 0.0000 0.0000 Lumber River (09-1) Lumber River (09-1)
WQ0000672 WWTP 0.0310 0.0310 0.0000 0.0000 Land Application Lumber River (09-1)

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 19,000 22,000 23,000 24,000 25,000 26,000
Seasonal Population 0 0 0 0 0 0

Residential 1.2382 1.3200 1.3800 1.4400 1.5000 1.5600
Commercial 0.7568 1.0000 1.1000 1.2000 1.3000 1.4000
Industrial 0.0883 0.0200 0.0300 0.0400 0.0500 0.0600
Institutional 0.0234 0.0360 0.0390 0.0410 0.0430 0.0460
System Process 2.2000 3.0000 3.1000 3.2000 3.3000 3.4000
Unaccounted-for 0.2469 0.3500 0.3600 0.3700 0.3800 0.4000
Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 16.0000 16.0000 16.0000 16.0000 16.0000 16.0000
Ground Water Supply 2.1456 2.1456 2.1456 2.1456 2.1456 2.1456
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 18.1456 18.1456 18.1456 18.1456 18.1456 18.1456
Service Area Demand 4.5536 5.7260 6.0090 6.2910 6.5730 6.8660
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 4.5536 5.7260 6.0090 6.2910 6.5730 6.8660
Demand as Percent of Supply 25% 32% 33% 35% 36% 38%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 65 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    no changes, plant is a 16MGD expandable to 32 MGD by the insertion of plates in in pulsator basins to convert from a pulsator to a super pulsator plant, which will double the dention time, 2 quads of filters are already on site and functional capable of filtering 32 MGD

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   na
