Fairmont

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Incomplete

Water System Name: Fairmont   PWSID: 03-78-025
Mailing Address:PO Box 248
Fairmont, NC 28340		Ownership:Municipality

Contact Person:Ronnie SealsTitle:Public Works Director
Phone:910-628-0064Cell/Mobile:--

Secondary Contact:Paul Langfield Phone:336-309-9363
Mailing Address:
, NC 		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 2-12 23.00 %
Cast Iron 2-12 23.00 %
Ductile Iron 2-12 25.00 %
Polyvinyl Chloride 2-12 27.00 %
What are the estimated total miles of distribution system lines?   18 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   0 Feet
How many meters were replaced in 2002?   54
How old are the oldest meters in this system?   9 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   6
What is this system's finished water storage capacity?   0.8000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, 2-6 Months
Does this system have a valve exercise program?   Yes, 2-5 Years
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Decreasing
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Lumber River (09-1)0 %
County(s)% of Service Population
Robeson0 %
What was the year-round population served in 2002?   2,600
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 1,180 0.2990 0 0.0000
Commercial 210 0.0350 0 0.0000
Industrial 3 0.0050 0 0.0000
Institutional 1 0.0080 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.3860 0.4840 May 0.4100 0.5190 Sep 0.4000 0.4630
Feb 0.4400 0.5290 Jun 0.4230 0.5290 Oct 0.3500 0.4210
Mar 0.3800 0.6290 Jul 0.4060 0.4630 Nov 0.4000 0.5210
Apr 0.3730 0.4450 Aug 0.4200 0.4690 Dec 0.3800 0.6130

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Gertrude 0.1240 365 0.720 0.7200 Regular
Marion Stage 0.1580 365 0.864 0.4320 Regular
Morro 0.1180 365 0.648 0.6480 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Gertrude 280 158 158 172 8 0 Yes
Marion Stage 275 160 160 166 8 0 Yes
Morro 256 144 144 244 10 0 Yes
Are ground water levels monitored?   Yes, Annually
Does this system have a wellhead protection program?   No

Pump intake depth is unknown. Maximum day withdrawal unavailable.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Robeson Co 03-78-055 0.0000 0 0.0000 8 Emergency

Connection to Robeson Co is for emergency use only.

4. Wastewater Information

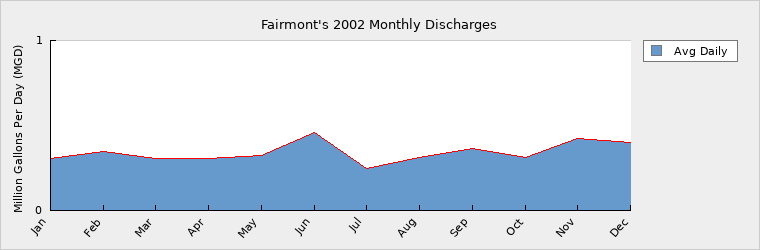

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.3030 May 0.3220 Sep 0.3650
Feb 0.3450 Jun 0.4600 Oct 0.3090
Mar 0.3080 Jul 0.2460 Nov 0.4240
Apr 0.3030 Aug 0.3120 Dec 0.4000

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   0
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

January through June discharged under NPDES Permit NC0021059. June through December discharged under NPDES Permit NC0086550.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0021059 0.5000 0.5000 0.1860 0.0000 Pitman Mill Branch (Machine) Lumber River (09-1)
NC0086550 1.7500 1.7500 0.1550 0.4200 Lumber River Lumber River (09-1)

New regional wastewater treatment facility came on line in 2002 (NPDES NC0086550). January through June discharged under NPDES Permit NC0021059. June through December discharged under NPDES Permit NC0086550.

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 2,600 2,746 2,844 2,958
Seasonal Population 0 0 0 0

Residential 0.2990 0.3160 0.3270 0.3400
Commercial 0.0350 0.0450 0.0500 0.0600
Industrial 0.0050 0.0500 0.3000 0.4000
Institutional 0.0080 0.0090 0.0100 0.0110
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.0530 0.0600 0.0670 0.0730

Fairmont anticipates a large increase in indsutrial usage by 2020 but no additional details provided.

Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 1.8000 1.8000 1.8000 1.8000
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 1.8000 1.8000 1.8000 1.8000
Service Area Demand 0.4000 0.4800 0.7540 0.8840
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.4000 0.4800 0.7540 0.8840
Demand as Percent of Supply 22% 27% 42% 49%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 115 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   Need for additional elevated tank/well for future growth conciderations.
