Maxton

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Maxton   PWSID: 03-78-035
Mailing Address:PO BOX 99 - 201 McCaskill Avenue
Maxton, NC 28364		Ownership:Municipality

Contact Person:Angela PitchfordTitle:Town Manager
Phone:910-844-5231Cell/Mobile:--

Secondary Contact:Dennis Freeman Phone:910-740-3647
Mailing Address:PO Box 99
Maxton, NC 28364		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-12 24.00 %
Cast Iron 6-12 5.00 %
Ductile Iron 6-12 15.00 %
Galvanized Iron 6-12 10.00 %
Polyvinyl Chloride 2-12 46.00 %
What are the estimated total miles of distribution system lines?   30 Miles
How many feet of distribution lines were replaced during 2024?   30 Feet
How many feet of new water mains were added during 2024?   0 Feet
How many meters were replaced in 2024?   15
How old are the oldest meters in this system?   13 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   8
What is this system's finished water storage capacity?   200.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Quarterly
Does this system have a valve exercise program?   Yes, Semi-Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Big Shoe Heel Creek (09-2)100 %
County(s)% of Service Population
Robeson100 %
What was the year-round population served in 2024?   2,311
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 1,039 0.1584 0 0.0000
Commercial 77 0.0241 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 39 0.0385 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0600 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Robeson Co 03-78-055 0.0000 0 0.0000 No No 10,6, Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.3330 May 0.2830 Sep 0.3840
Feb 0.2700 Jun 0.3050 Oct 0.3150
Mar 0.2370 Jul 0.3180 Nov 0.3160
Apr 0.2430 Aug 0.3890 Dec 0.3890

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
2 0.3156 365 0.5040 Regular
I 0.0000 0 0.3760 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
2 204 65 85 155 10 90 Yes
I 172 135 82 165 10 90 Yes
Are ground water levels monitored?   Yes, Quarterly
Does this system have a wellhead protection program?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Laurinburg-Maxton Airport 03-83-107 0.0463 70 Yes Yes 10 Emergency
Robeson Co 03-78-055 0.0330 7 No Yes 10,6 Emergency

Water from Robeson County wasn't purchased but we got it from their system. We have a connection with Robeson County were we get water from them and they get water from us when needed in emergencies.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Maxton WTP 0.7500 Yes No Wells
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

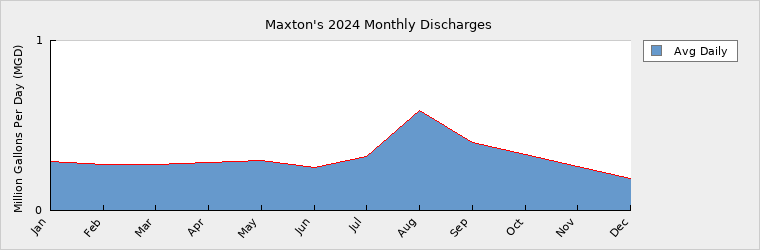

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.2898 May 0.2914 Sep 0.3973
Feb 0.2733 Jun 0.2526 Oct 0.3267
Mar 0.2723 Jul 0.3178 Nov 0.2565
Apr 0.2820 Aug 0.5907 Dec 0.1901

How many sewer connections does this system have?   1,091
How many water service connections with septic systems does this system have?   15
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0027120 WWTP 0.5000 0.6000 0.3100 1.4000 Little Shoe Heel Creek Big Shoe Heel Creek (09-2)

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 2,311 2,449 2,574 2,692 2,816 2,945
Seasonal Population 0 0 0 0 0 0

Residential 0.1584 0.1669 0.1745 0.1839 0.1924 0.2009
Commercial 0.0241 0.0247 0.0260 0.0272 0.0284 0.0297
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0385 0.0400 0.0418 0.0436 0.0454 0.0472
System Process 0.0600 0.0600 0.0600 0.0600 0.0600 0.0600
Unaccounted-for 0.0432 0.0513 0.0528 0.0546 0.0564 0.0585
Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.8800 0.8800 0.8800 0.8800 0.8800 0.8800
Purchases 0.0463 0.0463 0.0463 0.0463 0.0463 0.0463
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.9263 0.9263 0.9263 0.9263 0.9263 0.9263
Service Area Demand 0.3242 0.3429 0.3551 0.3693 0.3826 0.3963
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.3242 0.3429 0.3551 0.3693 0.3826 0.3963
Demand as Percent of Supply 35% 37% 38% 40% 41% 43%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 69 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes.

Are there other demand management practices you will implement to reduce your future supply needs?   No Changes.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   No Changes.

How does the water system intend to implement the demand management and supply planning components above?   No Changes.

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
