Parkton

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Incomplete

Water System Name: Parkton   PWSID: 03-78-045
Mailing Address:PO Box 55
Parkton, NC 28371		Ownership:Municipality

Contact Person:Benton RogersTitle:Water ORC
Phone:910-374-8780Cell/Mobile: - -

Secondary Contact:John Malone Phone:--
Mailing Address:
, 		Cell/Mobile:336-780-0786
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 8 1.00 %
Ductile Iron 6-8 5.00 %
Polyvinyl Chloride 6-8 94.00 %
What are the estimated total miles of distribution system lines?   6 Miles
How many feet of distribution lines were replaced during 2002?   20,700 Feet
How many feet of new water mains were added during 2002?   0 Feet
How many meters were replaced in 2002?   182
How old are the oldest meters in this system?   40 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   1
What is this system's finished water storage capacity?   0.0750 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, 12 Months or more
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Flat
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Lumber River (09-1)0 %
County(s)% of Service Population
Robeson0 %
What was the year-round population served in 2002?   487
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 183 0.0280 0 0.0000
Commercial 22 0.0040 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 6 0.0040 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn.

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Robeson Co 03-78-055 0.0000 0 0.0000 6 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0640 0.1290 May 0.1010 0.1930 Sep 0.0410 0.0740
Feb 0.0520 0.0990 Jun 0.0590 0.1840 Oct 0.0450 0.1440
Mar 0.0530 0.1150 Jul 0.0450 0.0670 Nov 0.0390 0.0600
Apr 0.0670 0.1720 Aug 0.0440 0.0820 Dec 0.0350 0.0620

After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn.

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.0400 365 0.058 0.1440 Regular
3 0.0400 365 0.058 0.1440 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 343 225 0 0 6 192 Yes
3 190 170 10 20 8 69 Yes
Are ground water levels monitored?   No, None
Does this system have a wellhead protection program?   Yes

After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Robeson Co 03-78-055 0.0000 0 0.0000 6 Emergency

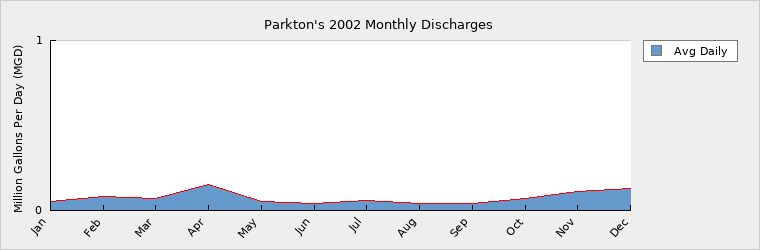

4. Wastewater Information

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0500 May 0.0500 Sep 0.0400
Feb 0.0800 Jun 0.0400 Oct 0.0700
Mar 0.0700 Jul 0.0600 Nov 0.1100
Apr 0.1500 Aug 0.0400 Dec 0.1300

How many sewer connections does this system have?   180
How many water service connections with septic systems does this system have?   19
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0026921 0.2000 0.2000 0.0700 0.2100 Marsh Swamp Lumber River (09-1)

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 487 491 496 501
Seasonal Population 0 0 0 0

Residential 0.0280 0.0300 0.0330 0.0360
Commercial 0.0040 0.0040 0.0040 0.0040
Industrial 0.0000 0.0000 0.0000 0.0000
Institutional 0.0040 0.0050 0.0070 0.0080
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.0440 0.0180 0.0180 0.0180
Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
2 Well 03-78-045 Ground 0.0000 2004 Regular
4 Well 03-78-045 Ground 0.0000 2005 Regular

Well 2 replaced Well 3.

Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.2880 0.2880 0.2880 0.2880
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.2880 0.2880 0.2880 0.2880
Service Area Demand 0.0800 0.0570 0.0620 0.0660
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0800 0.0570 0.0620 0.0660
Demand as Percent of Supply 28% 20% 22% 23%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 57 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?  None

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   Need another elevated tank and two wells.
