Oak Island

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Incomplete

Water System Name: Oak Island   PWSID: 04-10-020
Mailing Address:4601 E. Oak Island Dr.
Oak Island, NC 28465		Ownership:Municipality

Contact Person:Scott HaasTitle:Water Superintendent
Phone:910-523-0437Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 4-14" 95.00 %
Polyvinyl Chloride 2-6" 5.00 %
What are the estimated total miles of distribution system lines?   100 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   0 Feet
How many meters were replaced in 2002?   200
How old are the oldest meters in this system?   50 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   50
What is this system's finished water storage capacity?   0.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, 2-6 Months
Does this system have a valve exercise program?   Yes, 2-5 Years
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   One-Charge
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Cape Fear River (02-3)0 %
Shallotte River (09-4)0 %
County(s)% of Service Population
Brunswick0 %
What was the year-round population served in 2002?   13,700
What was the seasonal population and months served in 2002? (if applicable)   31,000 ( Jun Jul Aug )
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 6,737 0.8200 0 0.0000
Commercial 74 0.0410 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.5840 0.0000 May 0.8700 0.0000 Sep 0.9760 0.0000
Feb 0.5850 0.0000 Jun 1.3320 0.0000 Oct 0.7640 0.0000
Mar 0.5210 0.0000 Jul 1.3800 0.0000 Nov 0.7320 0.0000
Apr 0.8090 0.0000 Aug 1.3100 0.0000 Dec 0.5550 0.0000

did not have records for maximum day use

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Brunswick County 04-10-045 0.9790 365 1.3800 12,16 Regular

Purchase contract with Brunswick County that expires in 2020 is assumed to be renewed and contunue.

4. Wastewater Information

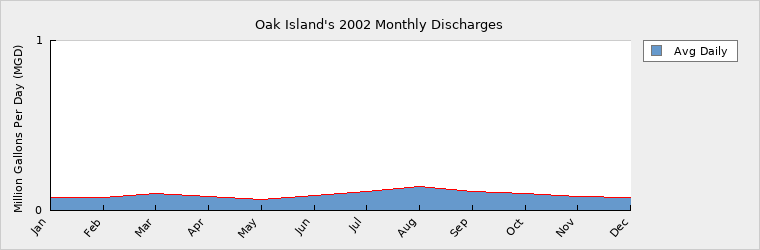

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0740 May 0.0630 Sep 0.1130
Feb 0.0770 Jun 0.0910 Oct 0.1010
Mar 0.0990 Jul 0.1140 Nov 0.0850
Apr 0.0850 Aug 0.1420 Dec 0.0740

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   0
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 13,700 14,700 15,700 16,700
Seasonal Population 31,000 32,000 33,500 35,000

Residential 0.8200 1.2060 1.2630 1.3190
Commercial 0.0410 0.0600 0.0630 0.0660
Industrial 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.1180 0.1740 0.1820 0.1900

Seasonal population served is based on 45 gallons per day per person in July Average Daily Service Area Demand based on max month Summer Demand in 2002 using 45 gpdpc and estimated summer population during maximum month.

Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
Brunswick County 04-10-045 Purchase 0.1100 2050 Regular
Brunswick County 04-10-045 Purchase 0.1100 2040 Regular
Brunswick County 04-10-045 Purchase 0.0700 2030 Regular
Brunswick County 04-10-045 Purchase 0.0700 2020 Regular
Brunswick County 04-10-045 Purchase 0.0600 2010 Regular

Available water from Brunswick County is assumed to be the projected max month demand for Oak island.

Specific plan for additional water assumes Oak Island will be able to purchased water as may be needed from Brunswick County.

Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000
Purchases 1.3800 1.3800 1.3800 1.3800
Future Supplies 0.0600 0.1300 0.2000
Total Available Supply (MGD) 1.3800 1.4400 1.5100 1.5800
Service Area Demand 0.9790 1.4400 1.5080 1.5750
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.9790 1.4400 1.5080 1.5750
Demand as Percent of Supply 71% 100% 100% 100%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 60 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Average daily demand (AAD) in 2002 is based on 365 day average.

Projected Average Daily Service Area Demand of 45 gpdpc during summer months is based on the max month demand (July) in 2002 and the estimated total summer population.

Specific plan for additional water assumes Oak Island will be able to purchased water as may be needed from Brunswick County.

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
