Newport

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Newport   PWSID: 04-16-020
Mailing Address:P.O. Box 1869
Newport, NC 28570		Ownership:Municipality

Contact Person:Bernard C. HallTitle:Public Utilities Director
Phone:252-223-4418Cell/Mobile:252-723-3808

Secondary Contact:Mike Houston Phone:919-812-6088
Mailing Address:
, NC 28525		Cell/Mobile:252-723-3808
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Ductile Iron 6-12 10.00 %
Polyvinyl Chloride 2-12 90.00 %
What are the estimated total miles of distribution system lines?   19 Miles
How many feet of distribution lines were replaced during 2024?   0 Feet
How many feet of new water mains were added during 2024?   7,000 Feet
How many meters were replaced in 2024?   77
How old are the oldest meters in this system?   14 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   10
What is this system's finished water storage capacity?   0.7500 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, As Needed
Does this system have a valve exercise program?   Yes, 2 Years or More
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes

Employees look for leaks while out in the field and we also utilize NCRWA on and as needed basis.

Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
White Oak River (17-1)100 %
County(s)% of Service Population
Carteret100 %
What was the year-round population served in 2024?   4,829
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 1,885 0.1698 0 0.0000
Commercial 150 0.0453 0 0.0000
Industrial 5 0.0024 0 0.0000
Institutional 9 0.0403 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.2150 MGD

The WTP is losing 50 75 gallons per minute through backwash valves. The WTP is in need of a total rebuild or rehabiltation. The use and connections have changed as a result of new billing software.

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Morehead City 04-16-015 0.0000 0 0.0000 2525 Yes Yes 12 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.4731 0.6590 May 0.5254 0.6600 Sep 0.5204 0.6260
Feb 0.4663 0.6550 Jun 0.5636 0.8800 Oct 0.5007 0.9700
Mar 0.4811 0.6310 Jul 0.5535 0.7240 Nov 0.5025 0.9530
Apr 0.4900 0.6640 Aug 0.5094 0.7530 Dec 0.4803 0.6360

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
3 0.2398 366 0.4570 0.2880 CUA0 Regular
4 0.2665 365 0.6360 0.3204 CUA0 Regular
5 0.0000 0 0.0000 0.1800 CUA0 2023 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
3 123 104 123 8 95 Yes
4 167 66 162 10 60 Yes
5 135 73 125 8 109 Yes
Are ground water levels monitored?   Yes, Monthly
Does this system have a wellhead protection program?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Morehead City 04-16-015 0.0000 0 0.0000 2525 Yes Yes 12 Emergency
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Newport Water Plant 0.9360 Yes Yes three wells [listed]
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

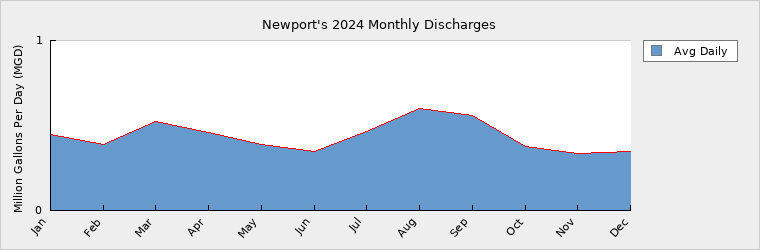

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.4448 May 0.3909 Sep 0.5559
Feb 0.3882 Jun 0.3475 Oct 0.3773
Mar 0.5250 Jul 0.4648 Nov 0.3367
Apr 0.4566 Aug 0.6029 Dec 0.3447

How many sewer connections does this system have?   2,028
How many water service connections with septic systems does this system have?   185
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0021555 WWTP 1.2000 1.2000 0.4363 Newport River White Oak River (17-1)

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 4,829 7,101 7,273 7,372 7,472 7,574
Seasonal Population 0 0 0 0 0 0

Residential 0.1698 0.2498 0.2558 0.2592 0.2627 0.2662
Commercial 0.0453 0.0666 0.0682 0.0691 0.0700 0.0710
Industrial 0.0024 0.0024 0.0024 0.0024 0.0024 0.0024
Institutional 0.0403 0.0593 0.0607 0.0615 0.0627 0.0632
System Process 0.2150 0.2169 0.2221 0.2251 0.2281 0.2311
Unaccounted-for 0.0328 0.0413 0.0423 0.0428 0.0434 0.0440

Growth is expected to increase dramatically over the next 3-5 years, due to multiple housing projects. We anticipate the growth to level off to a normal level after that time.

Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 1.3925 1.3925 1.3925 1.3925 1.3925 1.3925
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 1.3925 1.3925 1.3925 1.3925 1.3925 1.3925
Service Area Demand 0.5056 0.6363 0.6515 0.6601 0.6693 0.6779
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.5056 0.6363 0.6515 0.6601 0.6693 0.6779
Demand as Percent of Supply 36% 46% 47% 47% 48% 49%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 35 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   No Changes

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   No Changes

How does the water system intend to implement the demand management and supply planning components above?   No Changes

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, CCPCUA

What major water supply reports or studies were used for planning?  CCPCUA

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:    Additional sources of water. New elevated storage tower(s). Current water treatment facility needs major upgrades or construction of new facility. All these needs are required in order to better position the Town to sustain the growth expected in the next 10 years.
