Whiteville

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Incomplete

Water System Name: Whiteville   PWSID: 04-24-010
Mailing Address:P.O. Box 607
Whiteville, NC 28472		Ownership:Municipality

Contact Person:Nathan GuytonTitle:WWTP Director
Phone:910-642-5818Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-12 19.00 %
Cast Iron 6-8 2.50 %
Ductile Iron 6-12 37.00 %
Polyvinyl Chloride 2-12 41.00 %
What are the estimated total miles of distribution system lines?   66 Miles
How many feet of distribution lines were replaced during 2002?   1,500 Feet
How many feet of new water mains were added during 2002?   1,500 Feet
How many meters were replaced in 2002?   150
How old are the oldest meters in this system?   30 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   50
What is this system's finished water storage capacity?   0.6000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, 2-6 Months
Does this system have a valve exercise program?   No, None
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Waccamaw River (09-3)0 %
County(s)% of Service Population
Columbus0 %
What was the year-round population served in 2002?   8,000
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 2,465 0.7410 0 0.0000
Commercial 369 0.0850 0 0.0000
Industrial 8 0.0900 0 0.0000
Institutional 8 0.0740 13 0.0320

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 1.1500 1.4930 May 1.2670 1.5850 Sep 1.0770 1.3630
Feb 1.1650 1.7050 Jun 1.2920 1.8050 Oct 1.0880 1.5230
Mar 1.1650 1.5950 Jul 1.2300 1.6880 Nov 1.0010 1.3660
Apr 1.1950 1.5880 Aug 1.1780 1.6690 Dec 0.9730 1.5660

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.0000 365 0.000 0.2880 Regular
3 0.0000 365 0.000 0.2380 Regular
4 0.0000 365 0.000 0.3820 Regular
5 0.0000 365 0.000 0.5760 Regular
6 0.0000 365 0.000 0.4540 Regular
7 0.0000 365 0.000 0.6120 Regular
Combined Well Withdrawal 1.1480 365 1.805 0.0000 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 278 278 123 258 8 161 Yes
3 333 333 140 257 10 160 Yes
4 298 298 154 282 8 156 Yes
5 363 363 162 360 10 203 Yes
6 303 303 158 279 10 182 Yes
7 335 335 210 210 12 210 Yes
Combined Well Withdrawal 0 0 0 0 0 0 Yes
Are ground water levels monitored?   Yes, Semi-Annually
Does this system have a wellhead protection program?   No

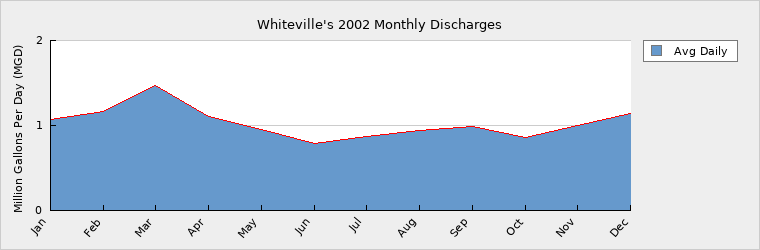

4. Wastewater Information

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 1.0700 May 0.9500 Sep 0.9900
Feb 1.1700 Jun 0.7900 Oct 0.8600
Mar 1.4700 Jul 0.8700 Nov 1.0000
Apr 1.1100 Aug 0.9400 Dec 1.1400

How many sewer connections does this system have?   2,845
How many water service connections with septic systems does this system have?   45
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0021920 3.0000 3.0000 1.0300 2.8300 Whitemarsh Swamp Waccamaw River (09-3)
WQ0000048 0.0000 0.0000 0.0000 0.0000 Land Application Waccamaw River (09-3)

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 8,000 8,960 10,160 11,600
Seasonal Population 0 0 0 0

Residential 0.7410 0.8350 0.9450 1.0850
Commercial 0.0850 0.0950 0.1100 0.1270
Industrial 0.0900 0.1040 0.1200 0.1380
Institutional 0.1060 0.1200 0.1380 0.1590
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.1260 0.1420 0.1600 0.1850
Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
2 04-24-010 Ground 0.5040 2020 Regular
8 04-24-010 Ground 0.5040 2040 Regular
Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 2.5500 2.5500 2.5500 2.5500
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.5040 0.5040
Total Available Supply (MGD) 2.5500 2.5500 3.0540 3.0540
Service Area Demand 1.1480 1.2960 1.4730 1.6940
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 1.1480 1.2960 1.4730 1.6940
Demand as Percent of Supply 45% 51% 48% 55%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 93 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

average peak days = 2002 =1.750mgd, 2010 = 1.900mgd, 2020 = 2.168mgd, 2030 = 2.394mgd, 2040 = 2.634mgd, 2050 = 2.904mgd

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?  Water System Analysis - 201 Facility Plan

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   need an additional elevated storage tank (install in 2006)
