Dare Co. Cape Hatteras

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Incomplete

Water System Name: Dare Co. Cape Hatteras   PWSID: 04-28-025
Mailing Address:PO Box 578
Buxton, NC 27920		Ownership:County

Contact Person:Elliott MidgettTitle:Plant Superintendent
Phone:252-475-5770Cell/Mobile:252-423-0425

Secondary Contact:Jessica King Phone:252-475-5606
Mailing Address:600 Mustian Street
Kill Devil Hills, NC 27948		Cell/Mobile:252-423-1700
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-8 30.00 %
Ductile Iron 16 2.00 %
Polyvinyl Chloride 2-12 68.00 %
What are the estimated total miles of distribution system lines?   156 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   4,800 Feet
How many meters were replaced in 2002?   73
How old are the oldest meters in this system?   20 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   4.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, 12 Months or more
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Increasing
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Albemarle Sound (12-1)0 %
County(s)% of Service Population
Dare0 %
What was the year-round population served in 2002?   8,341
What was the seasonal population and months served in 2002? (if applicable)   27,500 ( May Jun Jul Aug Sep )
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 3,688 0.6130 0 0.0000
Commercial 241 0.0390 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 34 0.0050 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn. Discrepancy may be due to unaccounted-for reject water from the RO plant.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.4390 0.5240 May 0.8360 1.1360 Sep 0.7920 0.8930
Feb 0.4420 0.5710 Jun 1.0770 1.2270 Oct 0.6690 0.7780
Mar 0.5390 0.7950 Jul 1.1990 1.4310 Nov 0.5300 0.7630
Apr 0.6660 0.9210 Aug 1.1660 1.2730 Dec 0.4020 0.5440

After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn. Discrepancy may be due to unaccounted-for reject water from the RO plant.

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
RO 1 0.0150 365 0.5900 Regular
RO 2 0.1880 365 0.6480 Regular
RO 3 0.1890 365 0.3600 Regular
RO 4 0.3930 365 0.5180 Regular
SW 3 0.0800 365 0.108 0.0540 Regular
SW10 0.0550 365 0.094 0.0470 Regular
SW11 0.0800 365 0.108 0.0540 Regular
SW12 0.0800 365 0.108 0.0540 Regular
SW13 0.0800 365 0.108 0.0540 Regular
SW15 0.0740 365 0.103 0.0510 Regular
SW16 0.0800 365 0.108 0.0540 Regular
SW17 0.0720 365 0.102 0.0510 Regular
SW19 0.0700 365 0.101 0.0500 Regular
SW22 0.0800 365 0.108 0.0540 Regular
SW4 0.0530 365 0.092 0.0460 Regular
SW5 0.0540 365 0.092 0.0460 Regular
SW6 0.0550 365 0.094 0.0470 Regular
SW7 0.0580 365 0.100 0.0500 Regular
SW8 0.0560 365 0.096 0.0480 Regular
SW9 0.0590 365 0.086 0.0430 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
RO 1 260 243 0 0 12 40 Yes
RO 2 276 248 0 0 10 40 Yes
RO 3 308 270 0 0 12 100 Yes
RO 4 308 245 0 0 12 100 Yes
SW 3 90 70 70 90 6 60 Yes
SW10 75 60 60 75 6 35 Yes
SW11 90 70 70 90 6 60 Yes
SW12 90 70 70 90 6 60 Yes
SW13 90 70 70 90 6 60 Yes
SW15 90 70 70 90 6 60 Yes
SW16 90 70 70 90 6 60 Yes
SW17 90 70 70 90 6 60 Yes
SW19 90 70 70 90 6 60 Yes
SW22 90 70 70 90 6 60 Yes
SW4 75 60 60 75 6 35 Yes
SW5 75 60 60 75 6 35 Yes
SW6 75 63 63 75 6 35 Yes
SW7 75 62 62 75 6 35 Yes
SW8 72 62 62 72 6 35 Yes
SW9 75 60 60 75 6 35 Yes
Are ground water levels monitored?   Yes, Monthly
Does this system have a wellhead protection program?   No

After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn. Discrepancy may be due to unaccounted-for reject water from the RO plant.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Cape Hatteras Water 2.0000 Yes Yes Wells
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2002?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2002?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

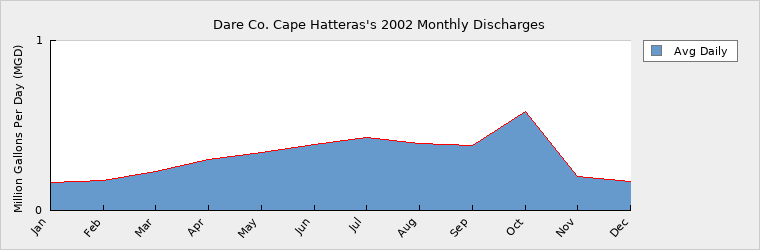

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.1650 May 0.3390 Sep 0.3830
Feb 0.1770 Jun 0.3880 Oct 0.5830
Mar 0.2280 Jul 0.4310 Nov 0.2020
Apr 0.2990 Aug 0.3950 Dec 0.1730

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   3,963
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0085707 1.8000 0.6000 0.3150 0.0000 Pamlico Sound Albemarle Sound (12-1)

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 8,341 11,020 13,177 15,022
Seasonal Population 27,500 39,149 46,813 53,367

Residential 0.6130 1.3680 1.6360 1.8650
Commercial 0.0390 0.0870 0.1040 0.1190
Industrial 0.0000 0.0000 0.0000 0.0000
Institutional 0.0050 0.0110 0.0130 0.0150
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 1.2140 0.1670 0.2000 0.2250

Demand projections (2010-2030) based on peak usage for summer months of June, July, and August (1.147 mgd) and the seasonal population provided.

Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 2.9190 2.9190 2.9190 2.9190
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 2.9190 2.9190 2.9190 2.9190
Service Area Demand 1.8710 1.6330 1.9530 2.2240
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 1.8710 1.6330 1.9530 2.2240
Demand as Percent of Supply 64% 56% 67% 76%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 73 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Demand projections (2010-2030) based on peak usage for summer months of June, July, and August (1.147 mgd) and the seasonal population provided.

Additional Information

Has this system participated in regional water supply or water use planning?  Yes

What major water supply reports or studies were used for planning?  Preliminary Design Report--RO Water Treatment Plant (5-24-98)
Missimer International--RO Well Field Study (10-14-98)

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
