La Grange

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: La Grange   PWSID: 04-54-015
Mailing Address:PO Box 368
La Grange, NC 28551		Ownership:Municipality

Contact Person:Shawn CondonTitle:Town Manager
Phone:252-566-3186Cell/Mobile:--

Secondary Contact:Mike Houston Phone:919-812-6088
Mailing Address:
, NC 		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Cast Iron 6-12 60.00 %
Ductile Iron 6-12 20.00 %
Polyvinyl Chloride 6-12 20.00 %
What are the estimated total miles of distribution system lines?   30 Miles
How many feet of distribution lines were replaced during 2024?   19,500 Feet
How many feet of new water mains were added during 2024?   0 Feet
How many meters were replaced in 2024?   48
How old are the oldest meters in this system?   3 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   85
What is this system's finished water storage capacity?   0.7000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Semi-Annually
Does this system have a valve exercise program?   Yes, As Needed
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes

Water audit monthly and as employees ride throughout the system they look for leaks. We also utilize NCRWA as needed.

Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Neuse River (10-1)100 %
County(s)% of Service Population
Lenoir100 %
What was the year-round population served in 2024?   3,167
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 1,484 0.1503 0 0.0000
Commercial 139 0.0215 0 0.0000
Industrial 7 0.0001 0 0.0000
Institutional 16 0.0003 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0600 MGD

Flushing & process has increased dramatically since 2023, due to major distribution upgrades and projects through the system.

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
North Lenoir Water Corporation 04-54-025 0.0000 0 0.0000 2050 Yes Yes 8 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.2702 0.6140 May 0.2812 0.5360 Sep 0.3137 0.8020
Feb 0.2630 0.3020 Jun 0.3089 0.6210 Oct 0.2829 0.4700
Mar 0.2608 0.5160 Jul 0.2814 0.5560 Nov 0.2922 0.5410
Apr 0.2774 0.4340 Aug 0.2762 0.3890 Dec 0.2803 0.3770

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
2 0.2508 186 0.2040 CUA25 Regular
3 0.0000 0 0.1200 CUA25 Emergency
4 0.2385 179 0.2400 CUA25 Regular
5-Mooring 0.0963 114 0.1170 CUA0 Regular
6-Taylor 0.0000 0 0.1560 CUA0 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
2 364 200 354 10 195 Yes
3 384 216 373 10 200 No
4 368 180 368 10 157 Yes
5-Mooring 118 93 113 8 65 Yes
6-Taylor 140 100 135 8 86 Yes
Are ground water levels monitored?   Yes, Monthly
Does this system have a wellhead protection program?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
North Lenoir Water Corporation 04-54-025 0.0000 0 0.0000 2020 Yes Yes 8 Emergency

4. Wastewater Information

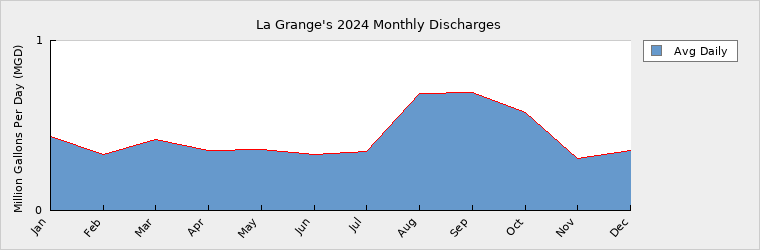

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.4370 May 0.3610 Sep 0.6920
Feb 0.3300 Jun 0.3320 Oct 0.5790
Mar 0.4200 Jul 0.3450 Nov 0.3080
Apr 0.3520 Aug 0.6890 Dec 0.3540

How many sewer connections does this system have?   1,326
How many water service connections with septic systems does this system have?   24
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes

An upgrade of the current WWTP is currently in the bid process. Updates include... install recirculation pumps on the return activated sludge line, rebuild clarifiers, and install an additional oxidation ditch.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0021644 WWTP 0.7500 1.5000 0.4333 Unnamed tributary of Mosely Cr Neuse River (10-1)

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 3,167 3,362 3,714 4,061 4,442 4,858
Seasonal Population 0 0 0 0 0 0

Residential 0.1503 0.1594 0.1755 0.1915 0.2092 0.2286
Commercial 0.0215 0.0228 0.0251 0.0274 0.0299 0.0327
Industrial 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001
Institutional 0.0003 0.0003 0.0004 0.0004 0.0004 0.0005
System Process 0.0600 0.0630 0.0690 0.0750 0.0820 0.0890
Unaccounted-for 0.0419 0.0395 0.0434 0.0473 0.0517 0.0564
Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 1.9624 1.9624 1.9624 1.9624 1.9624 1.9624
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 1.9624 1.9624 1.9624 1.9624 1.9624 1.9624
Service Area Demand 0.2741 0.2851 0.3135 0.3417 0.3733 0.4073
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.2741 0.2851 0.3135 0.3417 0.3733 0.4073
Demand as Percent of Supply 14% 15% 16% 17% 19% 21%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 47 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   No Changes

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   No Changes

How does the water system intend to implement the demand management and supply planning components above?   No Changes

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, NRWASA

What major water supply reports or studies were used for planning?  NRWASA, PER for Town comparing water supply options.

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   N/A
