Williamston

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Williamston   PWSID: 04-59-010
Mailing Address:PO Box 506
Williamston, NC 27892		Ownership:Municipality

Contact Person:Jason CampbellTitle:Water System Operator
Phone:252-792-1024Cell/Mobile:252-661-0737

Secondary Contact:Stacy Stalls Phone:252-792-1024
Mailing Address:PO Box 506
Williamston, NC 27892		Cell/Mobile:252-661-0737
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-8 4.00 %
Cast Iron 3-12 15.00 %
Ductile Iron 3-12 0.80 %
Other 6-12 0.20 %
Polyvinyl Chloride 2-12 80.00 %
What are the estimated total miles of distribution system lines?   69 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   2,000 Feet
How many meters were replaced in 2002?   118
How old are the oldest meters in this system?   40 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   13
What is this system's finished water storage capacity?   1.4750 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

"Other" represents HDPE.

Programs
Does this system have a program to work or flush hydrants?   Yes, 2-6 Months
Does this system have a valve exercise program?   Yes, 2-5 Years
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   One-Charge
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Roanoke River (14-1)0 %
County(s)% of Service Population
Martin0 %
What was the year-round population served in 2002?   6,584
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 2,344 0.3990 0 0.0000
Commercial 360 0.2440 0 0.0000
Industrial 5 0.1530 0 0.0000
Institutional 83 0.0410 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Martin Co WSD 1 60-59-003 0.0000 0 0.0330 2040 8 Emergency

Williamston has a contract to provide auxiliary emergency water supply to Martin Co WSD No. 1 in an amount not to exceed 0.033 MGD. This sale of water is rarely utilized.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.7910 1.0270 May 1.0660 1.7630 Sep 0.9570 1.1180
Feb 0.8130 1.0480 Jun 1.1000 1.3710 Oct 0.9200 1.1870
Mar 0.8460 1.1680 Jul 0.9810 1.1870 Nov 0.8500 1.0870
Apr 0.8880 1.2370 Aug 1.0300 1.2970 Dec 0.8220 1.2150

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Carolina Avenue 0.2150 365 0.544 0.3890 CUA25 Regular
Church Street 0.1020 365 0.596 0.3340 CUA25 Regular
Factory Street 0.0840 365 0.261 0.1230 CUA25 Regular
Henderson Street 0.2000 365 0.642 0.4320 CUA25 Regular
Northside 0.1630 365 0.580 0.4320 CUA25 Regular
Willow Drive 0.1590 365 0.423 0.3960 CUA25 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Carolina Avenue 441 285 285 425 12 240 Yes
Church Street 470 148 148 452 12 0 Yes
Factory Street 358 272 272 338 12 0 Yes
Henderson Street 406 399 349 394 12 290 Yes
Northside 463 463 290 453 12 277 Yes
Willow Drive 408 340 340 398 12 0 Yes
Are ground water levels monitored?   Yes, Monthly
Does this system have a wellhead protection program?   Yes

4. Wastewater Information

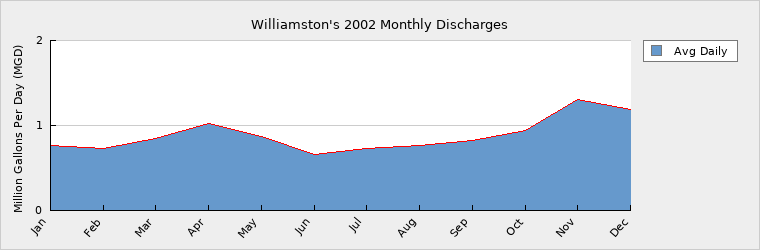

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.7650 May 0.8670 Sep 0.8260
Feb 0.7290 Jun 0.6580 Oct 0.9420
Mar 0.8470 Jul 0.7300 Nov 1.3020
Apr 1.0180 Aug 0.7650 Dec 1.1920

How many sewer connections does this system have?   2,439
How many water service connections with septic systems does this system have?   297
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0020044 2.4000 2.4000 0.8860 2.3040 Roanoke River Roanoke River (14-1)

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 6,584 9,143 9,875 10,725
Seasonal Population 0 0 0 0

Residential 0.3990 0.5550 0.6000 0.6500
Commercial 0.2440 0.3400 0.3650 0.4000
Industrial 0.1530 0.2100 0.2300 0.2500
Institutional 0.0410 0.0600 0.0600 0.0650
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.0860 0.1200 0.1300 0.1400

Service populations include out-of-town areas served by Williamston.

Future Water Sales
Purchaser PWSID Contract Pipe Size(s) (Inches) Use Type
MGD Year Begin Year End
Martin Co WSD 2 40-59-998 0.0330 2006 8 Emergency

There is a planned future connection to proposed Martin Co WSD No. 2 for the provision of auxiliary emergency water supply. Amounts have not been confirmed.

Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 2.1060 1.5795 0.5265 0.5265
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 2.1060 1.5795 0.2697 0.2697
Service Area Demand 0.9230 1.2850 1.3850 1.5050
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.9230 1.2850 1.3850 1.5050
Demand as Percent of Supply 44% 81% 514% 558%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 61 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Williamston is a stakeholder in a proposed Martin County Water Resource Study that will evaluate options for water providers regarding deficiencies resulting from compliance with Central Coastal Plains Capacity Use Area rule. Williamston is actively working to develop a feasible supply plan that will address the increasing future demand (81% Demand as Percent of Supply by 2010). As of this time, a final plan has not been submitted.

Additional Information

Has this system participated in regional water supply or water use planning?  Yes

What major water supply reports or studies were used for planning?  Town of Williamston Water Study, 1995
Town of Williamston Water Supply Plan, 1997

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   Williamston is within the 25% reduction zone as delineated by the CCPCUA rule, although significant decline in water resource static levels not apparent.
