Jamesville

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Jamesville   PWSID: 04-59-030
Mailing Address:PO Box 215
Jamesville, NC 27846		Ownership:Municipality

Contact Person:Samuel LilleyTitle:Supervisor
Phone:252-792-5006Cell/Mobile:--

Secondary Contact:Mike Houston Phone:919-812-6088
Mailing Address:
, NC 28525		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Polyvinyl Chloride 2-12 100.00 %
What are the estimated total miles of distribution system lines?   8 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   0 Feet
How many meters were replaced in 2002?   8
How old are the oldest meters in this system?   25 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.1000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, 12 Months or more
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Flat
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Roanoke River (14-1)0 %
County(s)% of Service Population
Martin0 %
What was the year-round population served in 2002?   502
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 159 0.0270 0 0.0000
Commercial 13 0.0060 0 0.0000
Industrial 1 0.0020 0 0.0000
Institutional 10 0.0040 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

Residential = 0.027 mgd, Commercial = 0.00635 mgd, Industrial = 0.00218 mgd, Institutional = 0.00396 mgd. After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0370 0.0490 May 0.0440 0.1210 Sep 0.0390 0.0590
Feb 0.0380 0.0500 Jun 0.0430 0.0690 Oct 0.0380 0.0480
Mar 0.0400 0.0550 Jul 0.0390 0.0590 Nov 0.0370 0.0560
Apr 0.0430 0.0820 Aug 0.0430 0.0590 Dec 0.0370 0.0460

Tank was drained and refilled in May due to inspection by Utility Services Co. Inc. After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn.

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Well 1 0.0540 183 0.080 0.1440 Regular
Well 2 0.0540 183 0.080 0.1080 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Well 1 450 430 285 350 8 50 Yes
Well 2 420 420 280 345 8 50 Yes
Are ground water levels monitored?   Yes, Weekly
Does this system have a wellhead protection program?   No

Jamesville has one entry point. Jamesville can pump 180 gpm. After initial review of plan and further discussion it appears there may be an error between monthly-metered water connections and the amount of water withdrawn.

4. Wastewater Information

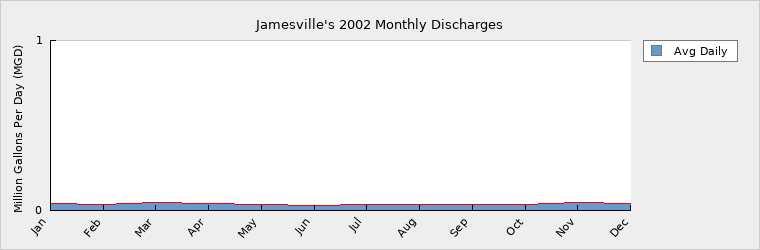

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0430 May 0.0340 Sep 0.0360
Feb 0.0350 Jun 0.0310 Oct 0.0350
Mar 0.0450 Jul 0.0380 Nov 0.0450
Apr 0.0410 Aug 0.0370 Dec 0.0430

How many sewer connections does this system have?   182
How many water service connections with septic systems does this system have?   0
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0035858 0.1500 0.1500 0.0390 0.0810 Roanoke River Roanoke River (14-1)

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 502 527 553 581
Seasonal Population 0 0 0 0

Residential 0.0270 0.0290 0.0310 0.0330
Commercial 0.0060 0.0060 0.0060 0.0060
Industrial 0.0020 0.0020 0.0020 0.0020
Institutional 0.0040 0.0040 0.0040 0.0040
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.0151 0.0010 0.0010 0.0010
Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.2520 0.2520 0.2520 0.2520
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.2520 0.2520 0.2520 0.2520
Service Area Demand 0.0541 0.0420 0.0440 0.0460
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0541 0.0420 0.0440 0.0460
Demand as Percent of Supply 21% 17% 17% 18%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 54 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
