Rocky Mount

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Rocky Mount   PWSID: 04-64-010
Mailing Address:PO Box 1180
Rocky Mount, NC 27802		Ownership:Municipality

Contact Person:Jim ConnollyTitle:Superintendent, Water Treatment
Phone:252-972-1336Cell/Mobile:252-343-3211
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 4-8 0.90 %
Cast Iron 6-20 0.02 %
Ductile Iron 4-30 87.68 %
Galvanized Iron 1-16 5.80 %
Other 1-16 0.10 %
Polyvinyl Chloride 1-12 5.50 %
What are the estimated total miles of distribution system lines?   499 Miles
How many feet of distribution lines were replaced during 2024?   1,800 Feet
How many feet of new water mains were added during 2024?   2,888 Feet
How many meters were replaced in 2024?   1,908
How old are the oldest meters in this system?   40 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   1,390
What is this system's finished water storage capacity?   10.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

A Meter installed in 1985 is currently the oldest meter.

Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, 2 Years or More
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes

Rocky Mount leak detection consists of call center dispatch and use of the Aqua Scope leak detection tool. Log book describes location, pipe size,and
materials of broken and leaky pipes. Utility business monitors overall loss.

Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Tar River (15-1)100 %
County(s)% of Service Population
Nash74 %
Edgecombe26 %
What was the year-round population served in 2024?   54,750
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 21,950 2.9200 0 0.0000
Commercial 1,800 0.9800 0 0.0000
Industrial 53 1.4500 0 0.0000
Institutional 505 0.3100 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.8600 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Central Nash WSD 40-64-005 0.4480 366 0.4500 2048 Yes Yes 12,16 Regular
Edgecombe Co WSD 1 04-33-050 0.5611 366 0.6000 2036 Yes Yes 16 Regular
Nashville 04-64-020 0.5390 366 0.7500 2060 Yes Yes 16 Regular
Northern Nash 40-64-035 0.1080 366 0.1150 2048 Yes Yes 12 Regular
Sharpsburg 04-64-040 0.1580 366 0.2000 2056 Yes Yes 12 Regular
Whitakers 04-33-040 0.0570 36 0.1000 2023 Yes Yes 16 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 8.3000 9.0000 May 9.5600 11.6000 Sep 8.9700 10.5000
Feb 7.6800 9.4000 Jun 10.8700 13.4000 Oct 9.1500 11.4000
Mar 8.2800 11.0000 Jul 10.5600 12.8000 Nov 8.6600 11.5000
Apr 8.4900 10.2000 Aug 9.7100 10.9000 Dec 8.4800 15.7000

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Tar River Run of river 5.2300 85 12.0000 18.0000 F 0.0000
Tar River Tar River Reservoir 8.7100 336 12.0000 12.9000 SY50 2,700.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Tar River Run of river 790 Yes Tar River (15-1) Nash Regular
Tar River Tar River Reservoir 770 Yes Tar River (15-1) Nash Regular
What is this system's off-stream raw water supply storage capacity?   0 Million gallons
Are surface water sources monitored?   Yes, As Needed
Are you required to maintain minimum flows downstream of its intake or dam?   Yes
Does this system anticipate transferring surface water between river basins?   No
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Wilson 04-98-010 0.0000 0 1.5000 2100 No Yes 12 Emergency
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Sunset Ave. WTP 18.0000 Yes Yes Tar River
Tar River Reservoir WTP 12.0000 Yes Yes Tar River Reservoir
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

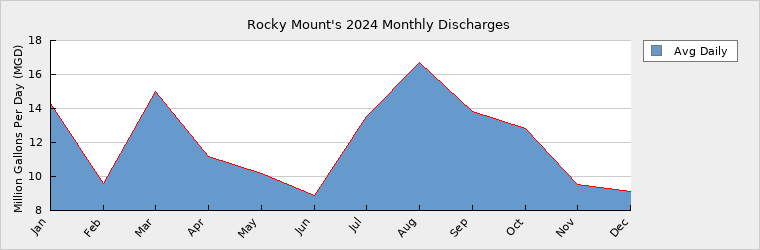

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 14.3000 May 10.2000 Sep 13.8000
Feb 9.6000 Jun 8.9000 Oct 12.8000
Mar 15.0000 Jul 13.5000 Nov 9.5000
Apr 11.2000 Aug 16.7000 Dec 9.1000

How many sewer connections does this system have?   23,601
How many water service connections with septic systems does this system have?   830
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

Monthly discharges are for the WWTP.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0030317 WWTP 21.0000 21.0000 12.1000 26.9000 Tar River Tar River (15-1)
NC0072125 WTP 0.0000 0.0000 0.4530 2.3100 Tar River Tar River (15-1)
NC0072133 WTP 0.0000 0.0000 0.0000 0.0000 Tar River Tar River (15-1)
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Central Nash WSD 40-64-005 Receiving 0.0241 366 0.3000
Edgecombe Co WSD 1 04-33-050 Receiving 0.0617 366 0.2400
Nashville 04-64-020 Receiving 0.8470 366 0.9000
Northern Nash 40-64-035 Receiving 0.0150 366 0.0450
Red Oak 00-00-000 Receiving 0.0101 366 0.0500
Sharpsburg 04-64-040 Receiving 0.3100 366 0.3500
Whitakers 04-33-040 Receiving 0.1190 366 0.1500

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 54,750 56,700 60,100 63,700 67,500 71,600
Seasonal Population 0 0 0 0 0 0

Residential 2.9200 3.0200 3.2000 3.3900 3.5900 3.8100
Commercial 0.9800 1.0100 1.0700 1.1300 1.2000 1.2700
Industrial 1.4500 2.5000 2.6500 2.8100 2.9800 3.1600
Institutional 0.3100 0.3300 0.3500 0.3700 0.3900 0.4100
System Process 0.8600 0.9500 0.9500 0.1000 1.0500 1.1000
Unaccounted-for 0.8710 1.0433 1.0981 1.0420 1.2304 1.3025

Battery manufacturer has announced a plant near Tarboro. Assume extra 1 mgd by 2030

Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 30.9000 30.9000 30.9000 30.9000 30.9000 30.9000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 30.9000 30.9000 30.9000 30.9000 30.9000 30.9000
Service Area Demand 7.3910 8.8533 9.3181 8.8420 10.4404 11.0525
Sales 1.8197 2.2150 2.2150 2.2150 2.2150 2.2150
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 9.2107 11.0683 11.5331 11.0570 12.6554 13.2675
Demand as Percent of Supply 30% 36% 37% 36% 41% 43%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 53 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No changes

Are there other demand management practices you will implement to reduce your future supply needs?   NA

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   NA

How does the water system intend to implement the demand management and supply planning components above?   No

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?  NA

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   NA
