Columbia

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Incomplete

Water System Name: Columbia   PWSID: 04-89-010
Mailing Address:P. O. Box 361
Columbia, NC 27925		Ownership:Municipality

Contact Person:Monica MauffreyTitle:Manager
Phone:252-796-2781Cell/Mobile:--

Secondary Contact:William T. Davenport jr Phone:252-394-0165
Mailing Address:155 Bulls Bay Road
Columbia, NC 27925		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 3-12 98.00 %
Ductile Iron 6-8 0.05 %
Polyvinyl Chloride 6-8 1.50 %
What are the estimated total miles of distribution system lines?   6 Miles
How many feet of distribution lines were replaced during 2002?   1,500 Feet
How many feet of new water mains were added during 2002?   0 Feet
How many meters were replaced in 2002?   20
How old are the oldest meters in this system?   39 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.2000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, 12 Months or more
Does this system have a valve exercise program?   No, None
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   One-Charge
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Albemarle Sound (12-1)0 %
County(s)% of Service Population
Tyrrell0 %
What was the year-round population served in 2002?   1,000
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 456 0.0900 0 0.0000
Commercial 2 0.0050 0 0.0000
Industrial 2 0.0570 0 0.0000
Institutional 2 0.0050 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0020 MGD

ALL CUSTOMERS ARE CHARGED THE SAME RATE FOR WATER REGARDLESS OF THE SIZE OF THE METER. BEING THAT ALL CUSTOMERS ARE CHARGED THE SAME RATE, ONLY TWO COMMERCIAL ARE USED FOR SAMPLING, THE HIGHEST USERS.

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Tyrrell Co 04-89-015 0.0040 365 0.0000 6 Regular

THERE IS NO CONTRACT AMOUNT,THE AVERAGE DAILY AMOUNT IS SO SMALL.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.2070 0.4620 May 0.1420 0.2210 Sep 0.1940 0.3000
Feb 0.1640 0.2870 Jun 0.2140 0.3660 Oct 0.1800 0.2510
Mar 0.1400 0.2740 Jul 0.2480 0.3660 Nov 0.1480 0.2340
Apr 0.1460 0.2130 Aug 0.2230 0.3190 Dec 0.1330 0.2090

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.0890 365 0.200 0.1620 Regular
2 0.0890 365 0.200 0.1300 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 133 128 116 128 10 0 Yes
2 125 125 65 125 8 0 Yes
Are ground water levels monitored?   No, None
Does this system have a wellhead protection program?   No

WELL #1 = 225 gpm, WELL #2 = 180-200 gpm.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Tyrrell Co 04-89-015 0.0000 0 0.0000 4 Emergency
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Columbia 0.4000 Yes Yes Groundwater
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2002?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2002?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

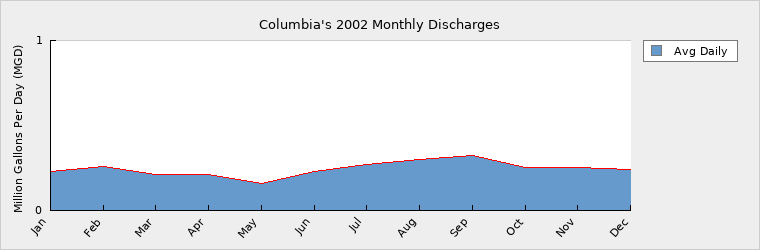

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.2280 May 0.1560 Sep 0.3210
Feb 0.2580 Jun 0.2280 Oct 0.2540
Mar 0.2140 Jul 0.2730 Nov 0.2550
Apr 0.2110 Aug 0.2980 Dec 0.2390

How many sewer connections does this system have?   465
How many water service connections with septic systems does this system have?   0
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0007510 0.0000 0.0000 0.0130 0.0000 SCUPPERNONG RIVER Albemarle Sound (12-1)
NC0020443 0.3000 0.3000 0.2320 0.3890 SCUPPERNONG RIVER Albemarle Sound (12-1)

PERMIT NC0007510 IS FOR WATER PLANT BACKWASH - NO PERMIT CAPACITY.

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 1,000 1,100 1,200 1,300
Seasonal Population 0 0 0 0

Residential 0.0900 0.1000 0.1100 0.1200
Commercial 0.0050 0.0050 0.0050 0.0060
Industrial 0.0570 0.0630 0.0630 0.0690
Institutional 0.0050 0.0050 0.0060 0.0060
System Process 0.0020 0.0030 0.0030 0.0040
Unaccounted-for 0.0150 0.0180 0.0200 0.0220

PROJECTIONS DO NOT TAKE INTO ACCOUNT SALES TO OTHER SYSTEMS.

Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.2920 0.2920 0.2920 0.2920
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.2920 0.2920 0.2920 0.2920
Service Area Demand 0.1740 0.1940 0.2070 0.2270
Sales 0.0040 0.0040 0.0040 0.0040
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.1780 0.1980 0.2110 0.2310
Demand as Percent of Supply 61% 68% 72% 79%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 90 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  Yes

What major water supply reports or studies were used for planning?  N/A

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
