Creswell

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Incomplete

Water System Name: Creswell   PWSID: 04-94-020
Mailing Address:PO Box 68
Creswell, NC 27928		Ownership:Municipality

Contact Person:Ryan SwainTitle:Water and Sewer Supt.
Phone:252-796-7957Cell/Mobile:252-796-7957
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Polyvinyl Chloride 2-6 99.00 %
What are the estimated total miles of distribution system lines?   20 Miles
How many feet of distribution lines were replaced during 2002?   5,000 Feet
How many feet of new water mains were added during 2002?   2,000 Feet
How many meters were replaced in 2002?   12
How old are the oldest meters in this system?   20 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.1000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

All PVC

Programs
Does this system have a program to work or flush hydrants?   Yes, 2-6 Months
Does this system have a valve exercise program?   No, None
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Albemarle Sound (12-1)0 %
County(s)% of Service Population
Washington0 %
What was the year-round population served in 2002?   450
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 180 0.0300 0 0.0000
Commercial 19 0.0060 2 0.0000
Industrial 1 0.0020 0 0.0000
Institutional 2 0.0030 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

Back wash system not metered. Non-metered comemrcial connections are for Firehouse and Town Hall which do not use a large amount of water.

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Washington Co 04-94-025 0.0000 0 0.0000 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0530 0.0960 May 0.0530 0.1820 Sep 0.0530 0.1510
Feb 0.0470 0.0860 Jun 0.0460 0.0730 Oct 0.0490 0.0740
Mar 0.0500 0.0750 Jul 0.0520 0.0720 Nov 0.0490 0.0830
Apr 0.0440 0.0850 Aug 0.0490 0.0720 Dec 0.0490 0.0910

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
001 0.0250 365 0.000 0.3000 CUA0 Regular
002 0.0250 365 0.000 0.3000 CUA0 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
001 67 100 90 110 6 67 Yes
002 67 120 89 119 6 67 Yes
Are ground water levels monitored?   No, None
Does this system have a wellhead protection program?   No

Can only run one well at a time.
The ground water level monitor is broke.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Washington Co 04-94-025 0.0000 0 0.0000 Emergency
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Creswell 0.2080 Yes No Wells
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2002?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2002?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

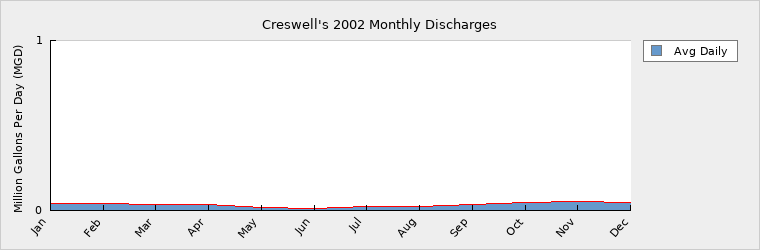

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0440 May 0.0170 Sep 0.0380
Feb 0.0400 Jun 0.0090 Oct 0.0460
Mar 0.0330 Jul 0.0210 Nov 0.0530
Apr 0.0380 Aug 0.0230 Dec 0.0460

How many sewer connections does this system have?   207
How many water service connections with septic systems does this system have?   2
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0027600 0.0000 0.0000 0.0040 0.0110 Scuppernong Albemarle Sound (12-1)
NC0048861 0.0640 0.0640 0.0320 0.0000 Scuppernong Albemarle Sound (12-1)

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 450 450 450 450
Seasonal Population 0 0 0 0

Residential 0.0300 0.0300 0.0300 0.0300
Commercial 0.0060 0.0060 0.0060 0.0060
Industrial 0.0020 0.0020 0.0020 0.0020
Institutional 0.0030 0.0030 0.0030 0.0030
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.0090 0.0090 0.0090 0.0090

Population projection appears to be declinging through 2030. Population and Deman projections were kept constant as a conservative estimate. Population projection appears to be declinging through 2030. Population and Deman projections were kept constant as a conservative estimate.

Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.6000 0.6000 0.6000 0.6000
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.6000 0.6000 0.2880 0.2880
Service Area Demand 0.0500 0.0500 0.0500 0.0500
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0500 0.0500 0.0500 0.0500
Demand as Percent of Supply 8% 8% 17% 17%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 67 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Our population is forcase to decrease for next 50 years.

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?  1997 LWSP

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
