Scotland County Water (Barnes Bridge)

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Scotland County Water (Barnes Bridge)   PWSID: 50-83-003
Mailing Address:P.O. Box 489
Laurinburg, NC 28353		Ownership:County

Contact Person:April SneadTitle:County Manager
Phone:910-277-2410Cell/Mobile:--

Secondary Contact:John Malone Phone:--
Mailing Address:
, NC 		Cell/Mobile:336-780-0786
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Polyvinyl Chloride 2-12 100.00 %
What are the estimated total miles of distribution system lines?   14 Miles
How many feet of distribution lines were replaced during 2024?   0 Feet
How many feet of new water mains were added during 2024?   0 Feet
How many meters were replaced in 2024?   12
How old are the oldest meters in this system?   20 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, As Needed
Does this system have a valve exercise program?   No
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Big Shoe Heel Creek (09-2)100 %
County(s)% of Service Population
Scotland100 %
What was the year-round population served in 2024?   493
Has this system acquired another system since last report?   No

Population was reduced from 584 to 493 based on the number of active connections (194) x 2.54 persons / Connection.

Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 194 0.0334 0 0.0000
Commercial 0 0.0000 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0010 MGD

All connection types are show as residential. The Billing / Operations contractor does not break down connections by type in the Billing system. No records are maintained on system process water use so the 0.0010 mgd reported here is an estimate.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0327 May 0.0327 Sep 0.0443
Feb 0.0348 Jun 0.0300 Oct 0.0411
Mar 0.0318 Jul 0.0363 Nov 0.0966
Apr 0.0249 Aug 0.0364 Dec 0.0755

Withdrawals are based on Master Meter readings provided by the City of Laurinburg.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Laurinburg 03-83-010 0.0432 366 0.1000 2025 Yes Yes Regular

No maximum purchase limit in contract, contract renews annually, a contract maximum of 0.1000 MGD is shown to keep the demand less than 80% of the supply. Per email from Dixon Medlin, with the City of Laurinburg, the City confirms that they have excess capacity to supply up to 0.1000 MGD to the Barnes Bridge water system.

4. Wastewater Information

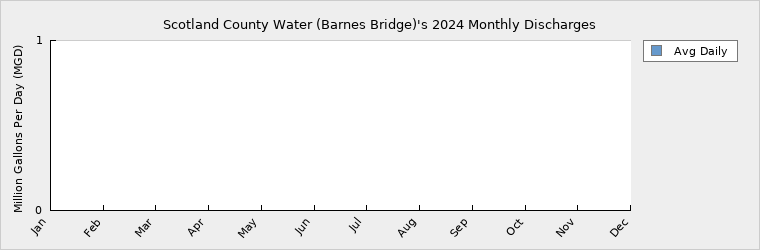

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0000 May 0.0000 Sep 0.0000
Feb 0.0000 Jun 0.0000 Oct 0.0000
Mar 0.0000 Jul 0.0000 Nov 0.0000
Apr 0.0000 Aug 0.0000 Dec 0.0000

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   194
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

Scotland County - Barnes Bridge water district does not operate a Sanitary Sewer Collection system.

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 493 478 452 427 404 382
Seasonal Population 0 0 0 0 0 0

Residential 0.0334 0.0325 0.0307 0.0290 0.0274 0.0259
Commercial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0010 0.0010 0.0010 0.0010 0.0010 0.0010
Unaccounted-for 0.0088 0.0083 0.0079 0.0074 0.0070 0.0067

The Barnes Bridge Water System is located near the City of Laurinburg. The City of Laurinburg has experienced a negative 6.3% growth rate over the last 10 years per the 2020 census. A negative annual growth rate of -0.62% was applied to the adjusted population (584 down to 493) based on 194 active accounts.

Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.1000 0.1000 0.1000 0.1000 0.1000 0.1000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.1000 0.1000 0.1000 0.1000 0.1000 0.1000
Service Area Demand 0.0432 0.0418 0.0396 0.0374 0.0354 0.0336
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0432 0.0418 0.0396 0.0374 0.0354 0.0336
Demand as Percent of Supply 43% 42% 40% 37% 35% 34%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 68 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   No Changes

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   None

How does the water system intend to implement the demand management and supply planning components above?   None

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   None
