Stumpy Point WSD

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Stumpy Point WSD   PWSID: 60-28-002
Mailing Address:P.O. Box 1000
Manteo, NC 27954		Ownership:County

Contact Person:Robert WernockTitle:Superintendent
Phone:252-475-5808Cell/Mobile:--

Secondary Contact:Jessica King Phone:252-475-5601
Mailing Address:600 Mustian Street
Kill Devil Hills, NC 27948		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Polyvinyl Chloride 2-10 100.00 %
What are the estimated total miles of distribution system lines?   4 Miles
How many feet of distribution lines were replaced during 2002?   0 Feet
How many feet of new water mains were added during 2002?   0 Feet
How many meters were replaced in 2002?   0
How old are the oldest meters in this system?   1 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.0850 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

The Stumpy Point system came on line January 2003, therefore there are no records available for 2002.

Programs
Does this system have a program to work or flush hydrants?   Yes, Once a Month
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   One-Charge
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Albemarle Sound (12-1)0 %
County(s)% of Service Population
Dare0 %
What was the year-round population served in 2002?   0
Has this system acquired another system since last report?
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 0 0.0000 0 0.0000
Commercial 0 0.0000 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

The Stumpy Point system came on line January 2003, therefore there are no records available for 2002.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0000 0.0000 May 0.0000 0.0000 Sep 0.0000 0.0000
Feb 0.0000 0.0000 Jun 0.0000 0.0000 Oct 0.0000 0.0000
Mar 0.0000 0.0000 Jul 0.0000 0.0000 Nov 0.0000 0.0000
Apr 0.0000 0.0000 Aug 0.0000 0.0000 Dec 0.0000 0.0000

The Stumpy Point system came on line January 2003, therefore there are no records available for 2002.

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Stumpy 1 0.0000 0 0.000 0.0500 Regular
Stumpy 2 0.0000 0 0.000 0.0500 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Stumpy 1 200 170 170 190 6 80 Yes
Stumpy 2 230 170 170 190 4 80 Yes
Are ground water levels monitored?   Yes, Monthly
Does this system have a wellhead protection program?   No

The Stumpy Point system came on line January 2003, therefore there are no records available for 2002.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Stumpy Point Water Plant 0.0600 Yes Yes Ground Water Wells
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2002?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2002?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

The Stumpy Point system came on line January 2003, therefore there are no records available for 2002.

4. Wastewater Information

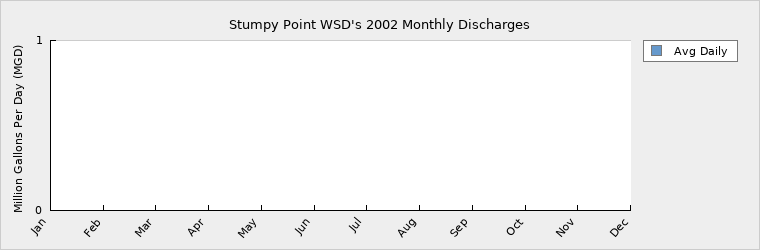

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0000 May 0.0000 Sep 0.0000
Feb 0.0000 Jun 0.0000 Oct 0.0000
Mar 0.0000 Jul 0.0000 Nov 0.0000
Apr 0.0000 Aug 0.0000 Dec 0.0020

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   0
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes

The Stumpy Point system came on line January 2003, therefore there are no records available for 2002.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0086932 0.0430 0.0360 0.0000 0.0000 Stumpy Point Bay Pamlico River & Sound (15-3)

The Stumpy Point system came on line January 2003, therefore there are no records available for 2002.

5. Planning

Projections
  2002 2010 2020 2030
Year-Round Population 0 180 230 300
Seasonal Population 0 0 0 0

Residential 0.0000 0.0250 0.0400 0.0500
Commercial 0.0000 0.0000 0.0000 0.0000
Industrial 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000
System Process 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.0000 0.0030 0.0040 0.0050

The Stumpy Point system came on line January 2003, therefore there are no records available for 2002. The expected growth of the community is due to the planned Wastewater Plant which will allow for full buildout of the system's lots. The Stumpy Point system came on line January 2003, therefore there are no records available for 2002. System Process Water (Backwash) estimated to be 200 gpd for 2010-2030. Unaccounted-for water estimated to be 10% of usage.

Demand v/s Percent of Supply
  2002 2010 2020 2030
Surface Water Supply 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.1000 0.1000 0.1000 0.1000
Purchases 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.1000 0.1000 0.1000 0.1000
Service Area Demand 0.0000 0.0280 0.0440 0.0550
Sales 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0000 0.0280 0.0440 0.0550
Demand as Percent of Supply 0% 28% 44% 55%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is unavailable until we receive population data for 2002 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

The Stumpy Point system came on line January 2003, therefore there are no records available for 2002.

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
