Stumpy Point WSD

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Stumpy Point WSD   PWSID: 60-28-002
Mailing Address:P.O. Box 1000
Manteo, NC 27954		Ownership:County

Contact Person:Robert WernockTitle:Superintendent
Phone:252-475-9140Cell/Mobile:--

Secondary Contact:William Nash Phone:252-475-5606
Mailing Address:600 Mustian Street
Kill Devil Hills, NC 27948		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Polyvinyl Chloride 2-10 100.00 %
What are the estimated total miles of distribution system lines?   3 Miles
How many feet of distribution lines were replaced during 2024?   10 Feet
How many feet of new water mains were added during 2024?   0 Feet
How many meters were replaced in 2024?   0
How old are the oldest meters in this system?   5 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.0850 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Albemarle Sound (12-1)100 %
County(s)% of Service Population
Dare100 %
What was the year-round population served in 2024?   269
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 140 0.0157 0 0.0000
Commercial 3 0.0004 0 0.0000
Industrial 1 0.0009 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0060 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0207 0.0900 May 0.0231 0.1053 Sep 0.0246 0.1140
Feb 0.0197 0.0949 Jun 0.0280 0.1258 Oct 0.0255 0.0979
Mar 0.0216 0.1251 Jul 0.0266 0.1015 Nov 0.0294 0.1273
Apr 0.0237 0.1049 Aug 0.0288 0.1330 Dec 0.0348 0.1586

Wells are not used on a daily basis but are used intermittently to fill elevated tank. Pumping records are stored electronically and have been verified. The system only operates one well at a time. At certain times based on use, leaks, etc., we must process longer than 12 hours per day. We choose to operate on a selected well for the entire process run. Starting and stopping wells tend to stir up sediment in the well and cause fouling issues in the pre-treatment process and the start/stop process causing shifting in the membranes in the RO equipment which increases the possibility of an O-ring or brine seal failure. Being each well usually rests 2-3 days between use it is more favorable to extend the run on the well than risk equipment failure in the plant.

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Stumpy 1 0.0880 55 0.156 0.0500 Regular
Stumpy 2 0.0880 53 0.205 0.0490 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Stumpy 1 200 170 170 190 6 80 Yes
Stumpy 2 230 170 170 190 4 80 Yes
Are ground water levels monitored?   Yes, Monthly
Does this system have a wellhead protection program?   Yes

Wells are not used on a daily basis but are used intermittently to fill elevated tank. Pumping records are stored electronically and have been verified. The system only operates one well at a time. At certain times based on use, leaks, etc., we must process longer than 12 hours per day. We choose to operate on a selected well for the entire process run. Starting and stopping wells tend to stir up sediment in the well and cause fouling issues in the pre-treatment process and the start/stop process causing shifting in the membranes in the RO equipment which increases the possibility of an O-ring or brine seal failure. Being each well usually rests 2-3 days between use it is more favorable to extend the run on the well than risk equipment failure in the plant.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Stumpy Point Water Plant 0.0600 Yes Yes Ground Water Wells
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2024?  No
     If yes, was any water conservation implemented?  No
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

Wells are not used on a daily basis but are used intermittently to fill elevated tank. Pumping records are stored electronically and have been verified. The system only operates one well at a time. At certain times based on use, leaks, etc., we must process longer than 12 hours per day. We choose to operate on a selected well for the entire process run. Starting and stopping wells tend to stir up sediment in the well and cause fouling issues in the pre-treatment process and the start/stop process causing shifting in the membranes in the RO equipment which increases the possibility of an O-ring or brine seal failure. Being each well usually rests 2-3 days between use it is more favorable to extend the run on the well than risk equipment failure in the plant.

4. Wastewater Information

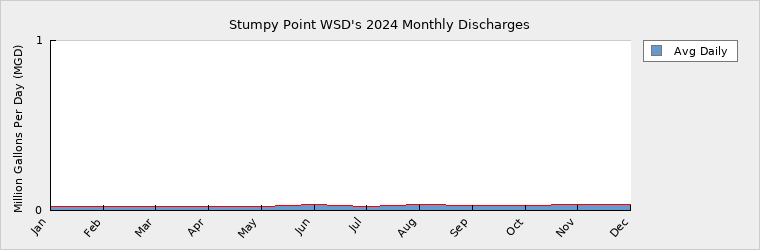

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0226 May 0.0251 Sep 0.0317
Feb 0.0234 Jun 0.0329 Oct 0.0307
Mar 0.0246 Jul 0.0240 Nov 0.0337
Apr 0.0254 Aug 0.0353 Dec 0.0357

How many sewer connections does this system have?   127
How many water service connections with septic systems does this system have?   0
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0086932 WTP 0.0430 0.0360 0.0293 0.1000 Stumpy Point Bay Albemarle Sound (12-1)

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 269 270 275 285 290 300
Seasonal Population 0 0 0 0 0 0

Residential 0.0157 0.0162 0.0163 0.0165 0.0175 0.0180
Commercial 0.0004 0.0073 0.0076 0.0080 0.0084 0.0088
Industrial 0.0009 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0060 0.0060 0.0061 0.0062 0.0063 0.0064
Unaccounted-for 0.0030 0.0038 0.0039 0.0040 0.0042 0.0043
Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0990 0.0990 0.0990 0.0990 0.0990 0.0990
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.0990 0.0990 0.0990 0.0990 0.0990 0.0990
Service Area Demand 0.0260 0.0333 0.0339 0.0347 0.0364 0.0375
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0260 0.0333 0.0339 0.0347 0.0364 0.0375
Demand as Percent of Supply 26% 34% 34% 35% 37% 38%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 58 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   None at this Time

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   None at this Time

How does the water system intend to implement the demand management and supply planning components above?   No plans at this time

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
