Martin County Water and Sewer District 1

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Martin County Water and Sewer District 1   PWSID: 60-59-003
Mailing Address:P.O. Box 706
Williamston, NC 27892		Ownership:District

Contact Person:Robbie WhitakerTitle:Martin County Water System Manager
Phone:252-799-7310Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Cast Iron 2-8 5.00 %
Galvanized Iron 2 2.00 %
Polyvinyl Chloride 2-10 93.00 %
What are the estimated total miles of distribution system lines?   120 Miles
How many feet of distribution lines were replaced during 2024?   50 Feet
How many feet of new water mains were added during 2024?   0 Feet
How many meters were replaced in 2024?   15
How old are the oldest meters in this system?   24 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.3250 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, As Needed
Does this system have a valve exercise program?   Yes, As Needed
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Uniform
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Roanoke River (14-1)80 %
Tar River (15-1)20 %
County(s)% of Service Population
Martin100 %
What was the year-round population served in 2024?   2,500
Has this system acquired another system since last report?   No

Project to complete an upgraded ARC GIS system is ongoing.

Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 840 0.0950 0 0.0000
Commercial 37 0.0041 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 22 0.0008 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0100 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Hamilton 04-59-025 0.0000 0 0.4500 2037 No Yes 8 Emergency
Williamston 04-59-010 0.0000 0 0.0330 2040 No Yes 8 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.1077 0.0000 May 0.1186 0.0000 Sep 0.1212 0.0000
Feb 0.1045 0.0000 Jun 0.1172 0.0000 Oct 0.1284 0.0000
Mar 0.1022 0.0000 Jul 0.1088 0.0000 Nov 0.1265 0.0000
Apr 0.1127 0.0000 Aug 0.1186 0.0000 Dec 0.1169

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.0000 0 0.0 0.0000 CUA10 Emergency
2 0.0000 0 0.0000 CUA10 Emergency
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 308 256 296 12 235 Yes
2 340 310 335 8 160 Yes
Are ground water levels monitored?   Yes, Monthly
Does this system have a wellhead protection program?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Hamilton 04-59-025 0.0000 0 0.4500 2037 No Yes 8 Emergency
Martin County Regional Water and Sewer Authority 60-59-018 0.1153 365 0.1350 2055 No Yes 6 Regular
Williamston 04-59-010 0.0000 0 0.0330 2040 No Yes 8 Emergency

4. Wastewater Information

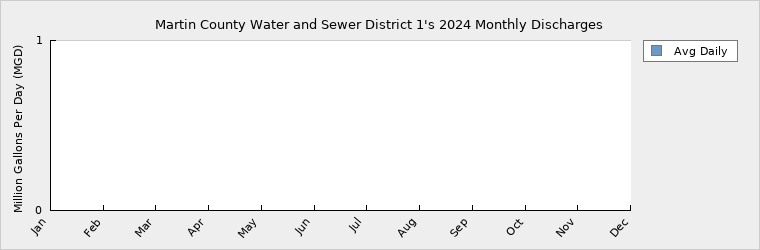

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0000 May 0.0000 Sep 0.0000
Feb 0.0000 Jun 0.0000 Oct 0.0000
Mar 0.0000 Jul 0.0000 Nov 0.0000
Apr 0.0000 Aug 0.0000 Dec 0.0000

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   1,150
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

5. Planning

Projections
  2024 2030 2040 2050 2060 2070
Year-Round Population 2,500 2,499 2,499 2,499 2,499 2,499
Seasonal Population 0 0 0 0 0 0

Residential 0.0950 0.0990 0.0990 0.0990 0.0990 0.0990
Commercial 0.0041 0.0038 0.0038 0.0038 0.0038 0.0038
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0008 0.0007 0.0007 0.0007 0.0007 0.0007
System Process 0.0100 0.0100 0.0100 0.0100 0.0100 0.0100
Unaccounted-for 0.0051 0.0100 0.0100 0.0100 0.0100 0.0100
Demand v/s Percent of Supply
  2024 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.1568 0.1568 0.1568 0.1568 0.1568 0.1568
Purchases 0.1350 0.1350 0.1350 0.1350 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.2918 0.2918 0.2918 0.2918 0.1568 0.1568
Service Area Demand 0.1150 0.1235 0.1235 0.1235 0.1235 0.1235
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.1150 0.1235 0.1235 0.1235 0.1235 0.1235
Demand as Percent of Supply 39% 42% 42% 42% 79% 79%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 38 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    The demand as Percent of Supply should be adequate for the long-term water demand until 2060. The district will be able to renegotiate an agreement with the Water Authority to supply 150,000 gpd or more, after the current contract expires in 2055.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?    MCWSDI is a member entity of the Martin County Regional Water and Sewer Authority. The MCRWASA WTP was designed for 2.0 MCD with an estimated average daily demand of 149,000 gpd for District 1. Contracted purchases are adjusted on July 1 of each year to match the "Full Water Requirements" of each member for the previous calendar year. Additional water may be contracted to purchase as needed in future years. The WTP could be expanded to 6.0 MGD to meet future demands of the member entities. If this 149,000 gpd supply is added back into the projections for 2060 and 2070, then the projected 'Demand as Percent of Supply will decrease well below 70%.

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, Yes, Martin County Water Districts 1 and 2 are members of the Martin County. Regional Water and Sewer Authority, which constructed a transfer line interconnection between the Town of Robersonville Water System and the Town of Williamston. a new well in the District 1 area with a projected capacity of 350 gpm to supply Martin County Water District 1, (online in 2016), and a 2.0 MGD. Surface Water Treatment Plant with withdrawal from the Roanoke River to supply water to Martin County Water District 2 (online 2016).

What major water supply reports or studies were used for planning?  The Wooten company completed "The Martin County Water Resources Plan" in March of 2005 which addressed future water needs of Martin County.

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
