Black Mountain

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Black Mountain   PWSID: 01-11-020
Mailing Address:160 Midland Ave
Black Mountain, NC 28711		Ownership:Municipality

Contact Person:Jorden BrownTitle:Water Quality Operator
Phone:828-713-098 Cell/Mobile:828-713-0988

Secondary Contact:Bobby Cavenaugh Phone:--
Mailing Address:
, NC 		Cell/Mobile:828-713-0988
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-10 12.00 %
Cast Iron 4-8 13.00 %
Ductile Iron 4-12 5.00 %
Galvanized Iron 3/4-2 30.00 %
Polyvinyl Chloride 2-6 40.00 %
What are the estimated total miles of distribution system lines?   60 Miles
How many feet of distribution lines were replaced during 2025?   100 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   2,000
How old are the oldest meters in this system?   50 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   32
What is this system's finished water storage capacity?   2.9000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Uniform
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
French Broad River (05-2)100 %
County(s)% of Service Population
Buncombe100 %
What was the year-round population served in 2025?   11,976
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 3,872 0.5560 0 0.0000
Commercial 345 0.2158 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 34 0.0100 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0500 MGD

Due to continue repairs from Hurricane Helen, main breaks and hydrant flushing, the process water is higher.

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Christmont 01-11-108 0.0030 48 0.0500 Yes No 6 Regular
Ridgecrest 01-11-118 0.0238 335 0.0500 Yes Yes 6 Regular
Town of Montreat 01-11-484 0.0000 0 0.0500 Yes Yes 6 Emergency

Water sales to Christmont and Ridgecrest were adjusted to Regular since sales were for more than 30 days.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 1.2720 May 0.8166 Sep 1.0568
Feb 1.3300 Jun 0.9280 Oct 0.9349
Mar 0.9047 Jul 0.9755 Nov 0.8389
Apr 0.9928 Aug 1.0100 Dec 0.8649

All wells are pumped into a transmission header line prior to treatment. This header is metered prior to treatment. The monthly average MGD is the total of water purchased from Asheville and master meter on the header. The wells are not metered.

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.2858 365 0.0210 2020 Regular
10 0.0000 0 0.0460 Regular
11 0.0000 0 0.0380 Regular
13 0.0000 0 0.0320 Regular
16 0.0000 0 0.0350 Regular
17 0.0000 0 0.0860 Regular
18 0.0000 0 0.0520 Regular
19 0.0000 0 0.0390 Regular
20 0.0000 0 0.0190 Regular
3 0.0000 0 0.0620 Regular
4 0.0000 0 0.0610 Regular
5 0.0000 0 0.0470 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 340 98 0 0 6 340 Yes
10 405 40 0 0 7 378 Yes
11 460 40 0 0 7 378 Yes
13 565 25 0 0 6 500 Yes
16 505 53 0 0 6 310 Yes
17 505 80 0 0 6 320 Yes
18 505 92 0 0 6 400 Yes
19 505 90 0 0 6 460 Yes
20 505 90 0 0 6 460 Yes
3 485 69 0 0 6 378 Yes
4 505 25 0 0 6 394 Yes
5 500 102 0 0 7 286 Yes
Are ground water levels monitored?   No,
Does this system have a wellhead protection program?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Asheville 01-11-010 0.7057 365 0.8000 Yes Yes 8 Regular
Montreat 01-11-484 0.0000 0 0.0500 Yes Yes 6 Emergency

The average daily MGD is taken from invoices from Asheville.

The existing purchase contract for Asheville is 0.44 MGD and the average daily purchase is currently at 0.705 MGD. The Town will be upgrading in the near future.

Asheville plan shows sales contract to Black Mountain is 0.800 MGD.

4. Wastewater Information

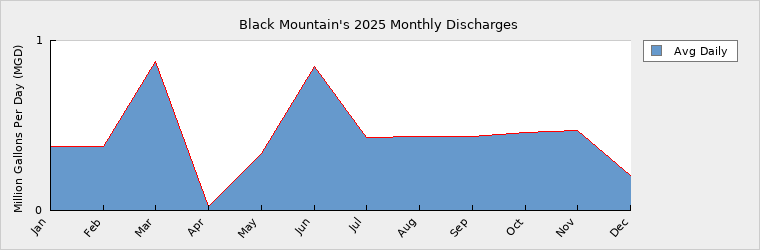

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.3787 May 0.3367 Sep 0.4337
Feb 0.3767 Jun 0.8481 Oct 0.4572
Mar 0.8764 Jul 0.4313 Nov 0.4706
Apr 0.0247 Aug 0.4370 Dec 0.2042

How many sewer connections does this system have?   3,575
How many water service connections with septic systems does this system have?   755
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 11,976 12,968 14,325 15,667 17,135 18,740
Seasonal Population 0 0 0 0 0 0

Residential 0.5560 0.6020 0.6649 0.7270 0.7950 0.8696
Commercial 0.2158 0.2330 0.2580 0.2820 0.3080 0.3370
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0100 0.0108 0.0119 0.0130 0.0143 0.0156
System Process 0.0500 0.0250 0.0200 0.0200 0.0200 0.0200
Unaccounted-for 0.1375 0.1439 0.1578 0.1722 0.1880 0.2053
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.5380 0.5170 0.5170 0.5170 0.5170 0.5170
Purchases 0.8000 0.8000 0.8000 0.8000 0.8000 0.8000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 1.3380 1.3170 1.3170 1.3170 1.3170 1.3170
Service Area Demand 0.9693 1.0147 1.1126 1.2142 1.3253 1.4475
Sales 0.0222 0.1000 0.1000 0.1000 0.1000 0.1000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.9915 1.1147 1.2126 1.3142 1.4253 1.5475
Demand as Percent of Supply 74% 85% 92% 100% 108% 118%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 46 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    no change

Are there other demand management practices you will implement to reduce your future supply needs?   no change

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   no change

How does the water system intend to implement the demand management and supply planning components above?   no change

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
