Harrisburg

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Harrisburg   PWSID: 01-13-025
Mailing Address:PO Box 100
Harrisburg, NC 28075		Ownership:Municipality

Contact Person:Larry AldridgeTitle:ORC
Phone:704-455-4669Cell/Mobile:704-886-8863

Secondary Contact:Andrew Ulrich Phone:704-455-0729
Mailing Address:P.O. Box 100, Suite 100
Harrisburg, NC 28075		Cell/Mobile:704-886-8863
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Ductile Iron 6-16 2.00 %
Polyvinyl Chloride 2-16 98.00 %
What are the estimated total miles of distribution system lines?   133 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   6,800 Feet
How many meters were replaced in 2025?   1,108
How old are the oldest meters in this system?   15 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   444
What is this system's finished water storage capacity?   1.4000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

Replacing old meters with ultrasonic meter, the Town of Harrisburg has the ability yo monitor leaks through the Ready Management System.

Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes

Replacing meters with ultrasonic meters, the Town has the ability to monitor leaks through the Ready Management System. A valve exercise program is in place and our goal is to exercise 10% annually. Flushed dead end lines quarterly and the Fire Department has flowed all hydrants.

Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Rocky River (18-4)100 %
County(s)% of Service Population
Cabarrus100 %
What was the year-round population served in 2025?   21,539
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 8,480 1.3084 0 0.0000
Commercial 331 0.2631 0 0.0000
Industrial 29 0.0973 0 0.0000
Institutional 37 0.0366 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0807 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Rocky River Plantation S/D 01-13-220 0.0910 15 Yes 8 Emergency
Weatherstone S/D 01-13-193 0.0125 365 Yes Yes 2 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 2.3469 May 1.9659 Sep 2.3785
Feb 2.0565 Jun 2.1189 Oct 2.2378
Mar 1.8143 Jul 2.2693 Nov 2.0182
Apr 1.9035 Aug 1.9319 Dec 1.7251

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Heatherstone 0.0647 365 0.2860 Regular
Well #3 Stallings 0.1112 365 0.2900 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Heatherstone 730 62 8 357 Yes
Well #3 Stallings 390 116 8 231 Yes
Are ground water levels monitored?   Yes, Daily
Does this system have a wellhead protection program?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Charlotte-Mecklenburg Utility 01-60-010 4.6200 15 0.0000 2025 No Yes 10 Regular
City of Concord 01-13-010 1.6705 365 2.0000 2024 Yes Yes 12 Regular

The City of Concord shall make available to The Town of Harrisburg up to 2MGD. Upon mutual agreement, the City of Concord shall increase availability to 3MGD. At this time the Town of Harrisburg has no contract with the city of Charlotte.

4. Wastewater Information

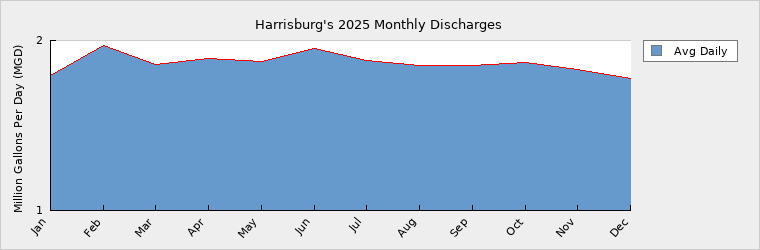

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 1.7970 May 1.8780 Sep 1.8520
Feb 1.9690 Jun 1.9520 Oct 1.8730
Mar 1.8580 Jul 1.8800 Nov 1.8300
Apr 1.8920 Aug 1.8500 Dec 1.7770

How many sewer connections does this system have?   8,342
How many water service connections with septic systems does this system have?   16
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

There are several neighborhoods the the Town supplies sewer to but does not supply water to , water is supplied by other entities that hence the large discrepancy between water connections and sewer connections.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
WQCS00328 CS 0.0000 0.0000 0.0000 Rocky River Rocky River (18-4)
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
WSACC 01-13-999 Discharging 1.9000 365

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 21,539 24,834 30,272 36,901 44,983 54,834
Seasonal Population 0 0 0 0 0 0

Residential 1.3084 1.4615 1.7815 2.1717 2.6473 3.2270
Commercial 0.2631 0.2896 0.3530 0.4304 0.5246 0.6395
Industrial 0.0973 0.0989 0.1206 0.1470 0.1792 0.2185
Institutional 0.0366 0.0476 0.0882 0.1075 0.1310 0.1600
System Process 0.0807 0.2488 0.3018 0.3739 0.4558 0.6056
Unaccounted-for 0.2340 0.2488 0.3018 0.3739 0.4558 0.5398

Adjusted 2040 commercial demand from 0.0353 MGD to 0.353 MGD.
Adjusted 2030 institutional demand from 0.4760 MGD to 0.0476 MGD.
Adjusted 2070 institutional demand from 0.5945 MGD to 0.160 MGD to maintain the 2% annual growth rate.

Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
Charlotte-Mecklenburg 01-60-010 Purchase 2.0000 2030 Regular
Charlotte-Mecklenburg 01-60-010 Purchase 3.0000 2050 Regular
Charlotte-Mecklenburg 01-60-010 Purchase 3.0000 2050 Regular
Charlotte-Mecklenburg 01-60-010 Purchase 4.0000 2070 Regular

The Town of Harrisburg is negotiating contracts with the City of Charlotte and the City of Concord, conducting studies to identify alternate water sources (Wells) increasing production capacity of existing wells.

Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.5760 0.5760 0.5760 0.5760 0.5760 0.5760
Purchases 6.6200 2.0000 2.0000 2.0000 2.0000 2.0000
Future Supplies 2.0000 2.0000 8.0000 8.0000 12.0000
Total Available Supply (MGD) 7.1960 4.5760 4.5760 10.5760 10.5760 14.5760
Service Area Demand 2.0201 2.3952 2.9469 3.6044 4.3937 5.3904
Sales 0.0162 0.0125 0.0125 0.0125 0.0125 0.0125
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 2.0363 2.4077 2.9594 3.6169 4.4062 5.4029
Demand as Percent of Supply 28% 53% 65% 34% 42% 37%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 61 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
