McAdenville

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: McAdenville   PWSID: 01-36-045
Mailing Address:P.O. Box 9
McAdenville, NC 28101		Ownership:Municipality

Contact Person:Lesley DellingerTitle:Town Administrator/Clerk
Phone:704-824-3190Cell/Mobile:704-000-0000

Secondary Contact:Bobby Cavenaugh Phone:336-780-0707
Mailing Address:
, NC 		Cell/Mobile: - -
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 10,12 21.00 %
Cast Iron 12 12.00 %
Ductile Iron 6,8 18.00 %
Galvanized Iron 2,4 40.00 %
Polyvinyl Chloride 2,3 9.00 %
What are the estimated total miles of distribution system lines?   6 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   5
How old are the oldest meters in this system?   22 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   71
What is this system's finished water storage capacity?   0.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, As Needed
Does this system have a valve exercise program?   No
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Flat/Fixed, Uniform
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
South Fork Catawba River (03-2)100 %
County(s)% of Service Population
Gaston100 %
What was the year-round population served in 2025?   947
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 342 0.0480 0 0.0000
Commercial 34 0.0114 0 0.0000
Industrial 5 0.0680 0 0.0000
Institutional 9 0.0035 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0197 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.1380 May 0.2289 Sep 0.1900
Feb 0.1588 Jun 0.1804 Oct 0.1754
Mar 0.1574 Jul 0.1903 Nov 0.1788
Apr 0.1690 Aug 0.2000 Dec 0.1440

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Gastonia 01-36-010 0.1758 365 1.0000 2030 Yes Yes 12,10 Regular
Lowell 01-36-060 0.0000 0 0.0000 No No 10 Emergency

4. Wastewater Information

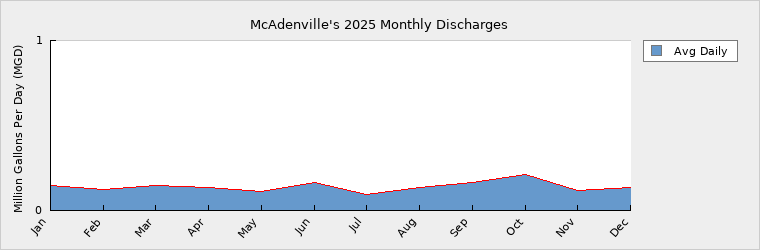

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.1469 May 0.1136 Sep 0.1644
Feb 0.1215 Jun 0.1622 Oct 0.2135
Mar 0.1479 Jul 0.0924 Nov 0.1199
Apr 0.1349 Aug 0.1376 Dec 0.1354

How many sewer connections does this system have?   305
How many water service connections with septic systems does this system have?   80
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Two Rivers Utilities / Gastonia 01-36-010 Discharging 0.1407 365 0.1800

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 947 1,007 1,112 1,217 1,331 1,455
Seasonal Population 0 0 0 0 0 0

Residential 0.0480 0.0487 0.0530 0.0587 0.0641 0.0700
Commercial 0.0114 0.0123 0.0136 0.0149 0.0162 0.0178
Industrial 0.0680 0.0680 0.0680 0.0680 0.0680 0.0680
Institutional 0.0035 0.0032 0.0035 0.0039 0.0042 0.0046
System Process 0.0197 0.0100 0.0100 0.0100 0.0100 0.0100
Unaccounted-for 0.0252 0.0277 0.0289 0.0303 0.0317 0.0332
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 1.0000 1.0000 1.0000 1.0000 1.0000 1.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 1.0000 1.0000 1.0000 1.0000 1.0000 1.0000
Service Area Demand 0.1758 0.1699 0.1770 0.1858 0.1942 0.2036
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.1758 0.1699 0.1770 0.1858 0.1942 0.2036
Demand as Percent of Supply 18% 17% 18% 19% 19% 20%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 51 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No changes.

Are there other demand management practices you will implement to reduce your future supply needs?   No changes.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   No changes.

How does the water system intend to implement the demand management and supply planning components above?   No changes.

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
