Maggie Valley SD

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Maggie Valley SD   PWSID: 01-44-040
Mailing Address:P.O. Box 1029
Maggie Valley, NC 28751		Ownership:District

Contact Person:JASON P HERBERTTitle:District Manager
Phone:828-926-0145Cell/Mobile:828-734-6988
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6 2.00 %
Ductile Iron 6-16 20.00 %
Polyvinyl Chloride 2- 8 78.00 %
What are the estimated total miles of distribution system lines?   113 Miles
How many feet of distribution lines were replaced during 2025?   1,000 Feet
How many feet of new water mains were added during 2025?   1,870 Feet
How many meters were replaced in 2025?   15
How old are the oldest meters in this system?   8 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   1.5600 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

With Hurricane Helene still in our memory, the MVSD is working with Engineers and contractors to replace older infrastructure.

Programs
Does this system have a program to work or flush hydrants?   Yes, Semi-Annually
Does this system have a valve exercise program?   No, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Pigeon River (05-3)100 %
County(s)% of Service Population
Haywood100 %
What was the year-round population served in 2025?   9,629
Has this system acquired another system since last report?   No

MVSD is will be moving forward to update our system to GIS mapping. After receiving some funds for this process the MVSD will be able to work with an engineering firm to help make this happen in the near future.

Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 3,923 0.5501 0 0.0000
Commercial 362 0.2999 0 0.0000
Industrial 2 0.0465 0 0.0000
Institutional 9 0.0535 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.1375 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Junaluska SD 01-44-035 0.0000 0 0.0000 Yes Yes 8 Emergency
Town of Waynesville 01-44-040 0.0000 0 0.0000 No Yes 8 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 1.3550 1.5630 May 1.1860 1.4000 Sep 1.2300 1.4780
Feb 1.2640 1.5250 Jun 1.2470 1.4200 Oct 1.2720 1.4300
Mar 1.1500 1.3080 Jul 1.2950 1.4600 Nov 1.2830 1.4960
Apr 1.1470 1.3840 Aug 1.2340 1.4890 Dec 1.2350 1.5070

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Campbell Creek 1.2410 365 1.5630 1.5000 F 0.0000
Jonathan Creek 0.3500 25 0.3500 3.0000 F 0.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Campbell Creek 7 Yes Pigeon River (05-3) Haywood Regular
Jonathan Creek 14 Yes Pigeon River (05-3) Haywood Regular
What is this system's off-stream raw water supply storage capacity?   0 Million gallons
Are surface water sources monitored?   Yes, As Needed
Are you required to maintain minimum flows downstream of its intake or dam?   Yes
Does this system anticipate transferring surface water between river basins?   No

The Jonathan Creek intake was used for a few days while the Campbell creek flow was minimized due to storm damage from Helene the prior year. during these days we reduced the flow from Campbell creek to work on the damaged intake site.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Waynesville 01-44-010 0.0000 0 0.5000 2020 Yes Yes 8 Emergency

This interconnect with Waynesville of for emergency purposes.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Maggie Valley Water Treatment 3.0000 Yes Yes Campbell Creek/Jonathan Creek
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

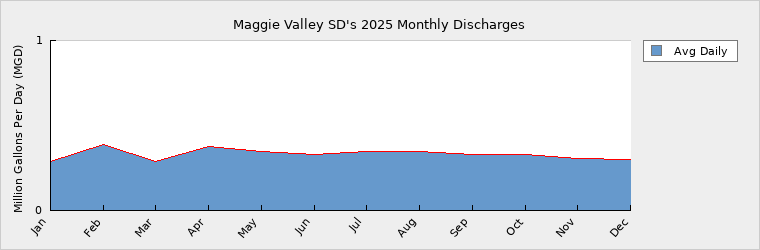

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.2870 May 0.3480 Sep 0.3320
Feb 0.3890 Jun 0.3310 Oct 0.3320
Mar 0.2880 Jul 0.3470 Nov 0.3030
Apr 0.3780 Aug 0.3470 Dec 0.2990

How many sewer connections does this system have?   2,119
How many water service connections with septic systems does this system have?   1,644
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0056561 WWTP 1.0000 1.0000 0.3000 2.1000 Jonathan Creek Pigeon River (05-3)
WQ0010615 CS 0.0000 0.0000 0.0000 0.0000 Jonathan Creek Pigeon River (05-3)
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Waynesville 01-44-010 Discharging 0.0272 365

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 9,629 9,710 9,755 9,810 9,862 9,989
Seasonal Population 0 0 0 0 0 0

Residential 0.5501 0.5384 0.5414 0.5442 0.5472 0.5495
Commercial 0.2999 0.2850 0.3105 0.3225 0.3397 0.3472
Industrial 0.0465 0.0325 0.0395 0.0465 0.0510 0.0525
Institutional 0.0535 0.0525 0.0529 0.0537 0.0548 0.0562
System Process 0.1375 0.1589 0.1665 0.1715 0.2075 0.2194
Unaccounted-for 0.1775 0.2281 0.2323 0.2385 0.2409 0.2436
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 4.5000 4.5000 4.5000 4.5000 4.5000 4.5000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 4.5000 4.5000 4.5000 4.5000 4.5000 4.5000
Service Area Demand 1.2650 1.2954 1.3431 1.3769 1.4411 1.4684
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 1.2650 1.2954 1.3431 1.3769 1.4411 1.4684
Demand as Percent of Supply 28% 29% 30% 31% 32% 33%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 57 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    The MVSD has installed AMR's for residential meters as well as 80% of the commercial meters that has allowed quicker response time to the customers for any leaks or more than usual water consumption.

Are there other demand management practices you will implement to reduce your future supply needs?   Replacing older water mains in our system.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   Implementing wells in our system

How does the water system intend to implement the demand management and supply planning components above?   Updated our CIP plan as well as keeping our Board of Directors engaged with future planning.

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, MVSD and all other water systems in Haywood County are continuing with on-going meetings to look into future Source water needs and reliability of existing interconnections.

What major water supply reports or studies were used for planning?  MVSD stream studies by Fish and Wildlife Association and McGuill Associates study of local water supplies

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   MVSD continues to work on acquiring property to protect water shed for the MVSD. Currently the District ownes 7710 acres in the water shed. We will continue to build relationships with property owners within the water shed to preserve the land and water.
