Mooresville

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Mooresville   PWSID: 01-49-015
Mailing Address:P. O. Box 878
Mooresville, NC 28115		Ownership:Municipality

Contact Person:Todd HammonsTitle:Water Treatment Plant Manager
Phone:704-662-3186Cell/Mobile:--

Secondary Contact:Marissa Houston Phone:704-799-4195
Mailing Address:2523 Charlotte Hwy
Mooresville, NC 28117		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Cast Iron 4-12 6.75 %
Ductile Iron 6-36 56.11 %
Polyvinyl Chloride 2-16 37.14 %
What are the estimated total miles of distribution system lines?   378 Miles
How many feet of distribution lines were replaced during 2025?   2,700 Feet
How many feet of new water mains were added during 2025?   81,259 Feet
How many meters were replaced in 2025?   647
How old are the oldest meters in this system?   27 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   1,463
What is this system's finished water storage capacity?   13.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, As Needed
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Catawba River (03-1)47 %
Rocky River (18-4)38 %
South Yadkin River (18-2)15 %
County(s)% of Service Population
Iredell100 %
What was the year-round population served in 2025?   51,166
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 18,091 3.1000 0 0.0000
Commercial 1,336 1.5900 0 0.0000
Industrial 30 1.9900 0 0.0000
Institutional 174 0.4100 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.2400 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
AQUA Mallard Head 01-49-162 0.0001 365 0.1000 2035 Yes Yes 2 Regular
Carolina Water Service of NC 01-49-185 0.3524 365 0.6560 2033 Yes Yes 8 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 7.6010 8.9810 May 8.3950 9.4940 Sep 8.8250 10.5900
Feb 7.3530 9.1460 Jun 8.8300 10.7700 Oct 8.6260 10.4450
Mar 7.7390 9.1600 Jul 10.0770 11.2180 Nov 7.3280 7.3960
Apr 8.2750 10.3990 Aug 8.7920 10.8480 Dec 5.9470 8.3710

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Catawba River Lake Norman 8.1490 365 11.2180 18.0000 T 10.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Catawba River Lake Norman 1,790 Yes Catawba River (03-1) Iredell Regular
What is this system's off-stream raw water supply storage capacity?   10 Million gallons
Are surface water sources monitored?   Yes, Weekly
Are you required to maintain minimum flows downstream of its intake or dam?   No
Does this system anticipate transferring surface water between river basins?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Town of Hickory 01-18-010 0.0000 0 1.0000 2025 No Yes 16 Emergency
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Mooresville WTP 1 6.2000 Yes Yes Lake Norman/Catawba River
Mooresville WTP 2 12.0000 Yes Yes Lake Norman/Catawba River
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  Yes

4. Wastewater Information

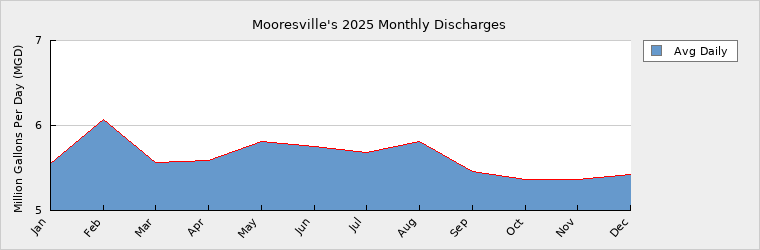

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 5.5540 May 5.8160 Sep 5.4550
Feb 6.0690 Jun 5.7530 Oct 5.3590
Mar 5.5650 Jul 5.6820 Nov 5.3660
Apr 5.5880 Aug 5.8140 Dec 5.4210

How many sewer connections does this system have?   19,250
How many water service connections with septic systems does this system have?   203
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes

A plant expansion was recommended in the Water and Wastewater Comprehensive Master Plan, completed in 2021. We anticipate expanding capacity from the current 7.5 MGD to 12.5 MGD with an anticipated completion in 2032. Currently in planning phase and awaiting approval for Inter Basin Transfer that was submitted 9/26/2026.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0046728 WWTP 7.5000 7.5000 5.6201 10.4150 Dye Creek Rocky River (18-4)
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Troutman 01-49-030 Receiving 0.0739 365 2.0000

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 51,166 58,000 72,500 84,000 84,000 84,000
Seasonal Population 0 0 0 0 0 0

Residential 3.1000 3.3700 4.0100 4.3680 4.3680 4.3680
Commercial 1.5900 1.9152 2.3069 2.7239 2.7239 2.7239
Industrial 1.9900 2.0430 2.2000 2.2000 2.2000 2.2000
Institutional 0.4100 0.5600 0.5810 0.5810 0.5810 0.5810
System Process 0.2400 0.3100 0.4200 0.5500 0.5500 0.5500
Unaccounted-for 0.4665 0.5218 0.6057 0.6633 0.6633 0.6633
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 18.0000 18.0000 18.0000 18.0000 18.0000 18.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 18.0000 18.0000 18.0000 18.0000 18.0000 18.0000
Service Area Demand 7.7965 8.7200 10.1236 11.0862 11.0862 11.0862
Sales 0.3525 0.7560 0.7560 0.7560 0.7560 0.7560
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 8.1490 9.4760 10.8796 11.8422 11.8422 11.8422
Demand as Percent of Supply 45% 53% 60% 66% 66% 66%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 61 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   A more detailed plan will be implemented if our IBT submittal is approved.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   None

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, CATAWBA-WATEREE Drought Management Advisory Group
CWWMG Water Loss Program
CWWMG Integrated Water Resources Plan Inter-basin Transfer Data

What major water supply reports or studies were used for planning?  Water and Wastewater Comprehensive Master Plan, completed in 2021.

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
