Marshall

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Marshall   PWSID: 01-58-015
Mailing Address:P.O. Box 548
Marshall, NC 28753		Ownership:Municipality

Contact Person:James ChandlerTitle:ORC
Phone:828-649-3031Cell/Mobile:828-206-1674
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Cast Iron 6 34.00 %
Ductile Iron 6 33.00 %
Polyvinyl Chloride 2-12 33.00 %
What are the estimated total miles of distribution system lines?   17 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   12
How old are the oldest meters in this system?   31 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   1.1000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

We use rural water and private contractor for leak detection.

Programs
Does this system have a program to work or flush hydrants?   Yes, As Needed
Does this system have a valve exercise program?   Yes, As Needed
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes

We use rural water and private contractor.

Water Conservation
What type of rate structure is used?   Flat/Fixed
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

We are currently building interconnection line from Town of Marshall to the Town of Mars Hill Hopefully completed by the end of 2026.

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
French Broad River (05-2)100 %
County(s)% of Service Population
Madison100 %
What was the year-round population served in 2025?   1,402
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 363 0.0323 0 0.0000
Commercial 78 0.0140 0 0.0000
Industrial 6 0.0298 0 0.0000
Institutional 46 0.0265 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0100 MGD

Due to Hurricane Helene we lost connections.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.1333 0.1658 May 0.1288 0.1465 Sep 0.1575 0.1879
Feb 0.1329 0.1811 Jun 0.1279 0.2130 Oct 0.1483 0.1903
Mar 0.1362 0.1579 Jul 0.1418 0.1675 Nov 0.1344 0.1635
Apr 0.1265 0.1535 Aug 0.1463 0.1810 Dec 0.1522 0.1823

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
2 0.0000 0 0 0.0000 2000 Emergency
6 0.0000 0 0 0.0950 Regular
8 0.0576 358 0.0670 Regular
10 0.0188 324 0.0200 Regular
12 0.0368 365 0.0346 Regular
14 0.0325 349 0.0360 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
2 150 0 0 0 8 145 No
6 400 52 0 0 8 300 Yes
8 400 103 0 0 8 200 Yes
10 374 21 0 0 6 200 Yes
12 605 55 0 0 6 315 Yes
14 525 55 0 0 6 315 Yes
Are ground water levels monitored?   Yes, As Needed
Does this system have a wellhead protection program?   No

Well #6 has been rehabbed and is schedule to be in production in 2026. This well is capable of producing 132gpm and should meet our future demands.

4. Wastewater Information

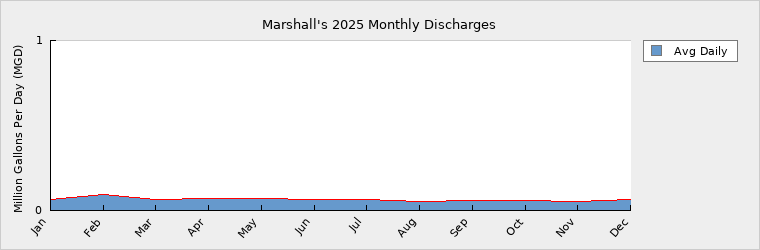

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0651 May 0.0710 Sep 0.0597
Feb 0.0942 Jun 0.0635 Oct 0.0578
Mar 0.0623 Jul 0.0652 Nov 0.0522
Apr 0.0722 Aug 0.0532 Dec 0.0619

How many sewer connections does this system have?   380
How many water service connections with septic systems does this system have?   164
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes

Due from damages from Hurricane Helene at the Wastewater plant the Town is currently looking for site to build a new plant.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0021733 WWTP 0.4000 0.4000 0.0649 FRENCH BROAD RIVER French Broad River (05-2)

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 1,402 1,518 1,677 1,834 2,006 2,194
Seasonal Population 0 0 0 0 0 0

Residential 0.0323 0.0698 0.0775 0.0844 0.0923 0.1009
Commercial 0.0140 0.0195 0.0215 0.0235 0.0257 0.0281
Industrial 0.0298 0.0194 0.0196 0.0198 0.0200 0.0202
Institutional 0.0265 0.0281 0.0311 0.0339 0.0371 0.0406
System Process 0.0100 0.0010 0.0011 0.0013 0.0014 0.0015
Unaccounted-for 0.0285 0.0349 0.0362 0.0412 0.0447 0.0484

Adjusted 2040 residential demand to produce a consumption rate of 46 GPCD.

Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
Town of Mars Hill 01-58-010 Purchase 0.0300 2026 Regular
Town of Marshall 01-58-015 Ground 0.0500 2027 Regular

We will be interconnecting with the Town of Mars Hill.

Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.2526 0.2526 0.2526 0.2526 0.2526 0.2526
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0800 0.0800 0.0800 0.0800 0.0800
Total Available Supply (MGD) 0.2526 0.3326 0.3326 0.3326 0.3326 0.3326
Service Area Demand 0.1411 0.1727 0.1870 0.2041 0.2212 0.2397
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.1411 0.1727 0.1870 0.2041 0.2212 0.2397
Demand as Percent of Supply 56% 52% 56% 61% 67% 72%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 23 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   None

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   None

How does the water system intend to implement the demand management and supply planning components above?   N/A

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?  None

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   None
