Albemarle

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Albemarle   PWSID: 01-84-010
Mailing Address:PO Box 190
Albemarle, NC 28002-0190		Ownership:Municipality

Contact Person:Eric HolzTitle:Water Resources Manager
Phone:704-918-6678Cell/Mobile:704-918-6678
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-16 1.00 %
Cast Iron 6-24 30.00 %
Ductile Iron 4-30 64.00 %
Galvanized Iron 2 1.00 %
Other 20-24 2.00 %
Polyvinyl Chloride 2-8 2.00 %
What are the estimated total miles of distribution system lines?   190 Miles
How many feet of distribution lines were replaced during 2025?   1,409 Feet
How many feet of new water mains were added during 2025?   2,005 Feet
How many meters were replaced in 2025?   1,038
How old are the oldest meters in this system?   41 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   668
What is this system's finished water storage capacity?   10.9000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Daily
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Decreasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Yadkin River (18-1)100 %
County(s)% of Service Population
Stanly100 %
What was the year-round population served in 2025?   17,401
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 7,107 1.2809 0 0.0000
Commercial 1,081 0.0430 0 0.0000
Industrial 21 0.1561 0 0.0000
Institutional 28 0.0288 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.4365 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
City of Concord 01-13-010 4.6136 365 5.0000 2035 Yes Yes 30 Regular
Pfeiffer-North Stanly Water 01-84-025 0.4860 365 0.7500 2044 Yes Yes 12 Regular
Stanly County 01-84-035 2.2311 365 3.0000 2016 Yes Yes 12 Regular

Adjusted water sold to Pfeiffer-North Stanly from 0.0486 MGD to 0.486 MGD.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 10.7700 11.8700 May 10.4900 11.4000 Sep 11.4100 12.5270
Feb 10.2300 11.5800 Jun 10.6000 12.5700 Oct 11.1100 11.9900
Mar 10.1900 11.2900 Jul 10.8900 12.0000 Nov 10.7600 11.8100
Apr 10.2500 11.6900 Aug 10.8500 12.0000 Dec 10.6300 12.2800

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Yadkin River Tuckertown 5.5500 365 6.5560 9.0000 C 40.0000
Yadkin River at Narrows Narrows (Badin Lake) 4.8000 365 6.2700 11.0000 C 11.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Yadkin River Tuckertown 4,080 Yes Yadkin River (18-1) Stanly Regular
Yadkin River at Narrows Narrows (Badin Lake) 4,180 Yes Yadkin River (18-1) Stanly Regular
What is this system's off-stream raw water supply storage capacity?   51 Million gallons
Are surface water sources monitored?   Yes, Daily
Are you required to maintain minimum flows downstream of its intake or dam?   No
Does this system anticipate transferring surface water between river basins?   No
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Jack F Neel Water Treatment Pl 8.0000 Yes Yes Yadkin River - Tuckertown Reservoir
US 52 HWY Water Treatment Plan 10.0000 Yes Yes Yadkin River - Narrows Reservoir (Badin Lake)
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?  No
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

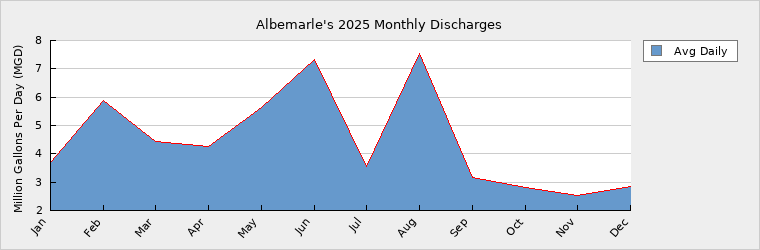

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 3.6900 May 5.6300 Sep 3.1600
Feb 5.8700 Jun 7.3400 Oct 2.8200
Mar 4.4400 Jul 3.5600 Nov 2.5200
Apr 4.2500 Aug 7.5400 Dec 2.8600

How many sewer connections does this system have?   6,266
How many water service connections with septic systems does this system have?   677
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0024244 WWTP 12.0000 12.0000 4.4700 20.3600 Long Creek Rocky River (18-4)
NC0044024 WTP 10.0000 12.0000 0.0000 0.0000 Little Long Creek Rocky River (18-4)
NC0075701 WTP 8.0000 10.0000 0.1750 0.9820 Tuckertown Reservoir Yadkin River (18-1)
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
New London 01-84-025 Receiving 0.0450 365
Stanly County 01-84-035 Receiving 0.2020 365 0.3290

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 17,401 17,840 18,753 19,712 20,720 21,779
Seasonal Population 0 0 0 0 0 0

Residential 1.2809 1.3132 1.3804 1.4510 1.5252 1.6032
Commercial 0.0430 0.0441 0.0463 0.0487 0.0512 0.0538
Industrial 0.1561 0.1600 0.1682 0.1768 0.1859 0.1954
Institutional 0.0288 0.0295 0.0310 0.0326 0.0343 0.0360
System Process 0.4365 0.4475 0.4704 0.4945 0.5198 0.5463
Unaccounted-for 1.0740 1.5495 1.6287 1.7121 1.7997 1.8916
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 20.0000 20.0000 20.0000 20.0000 20.0000 20.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 20.0000 20.0000 20.0000 20.0000 20.0000 20.0000
Service Area Demand 3.0193 3.5438 3.7250 3.9157 4.1161 4.3263
Sales 7.3307 8.7500 8.7500 8.7500 8.7500 8.7500
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 10.3500 12.2938 12.4750 12.6657 12.8661 13.0763
Demand as Percent of Supply 52% 61% 62% 63% 64% 65%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 74 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, Albemarle is an active member of the Yadkin Pee Dee Water Management Group.

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
