Monroe

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name:	Monroe		PWSID:	01-90-010
Mailing Address:	P.O. Box 69 Monroe, NC 28111		Ownership:	Municipality

Contact Person:	David Rankin		Title:	WTP Superintendent
Phone:	704-282-4668		Cell/Mobile:	704-661-2131

Secondary Contact:	Amy F. Cook, PE			Phone:	704-282-4604
Mailing Address:	PO Box 69 Monroe, NC 28111	Cell/Mobile:		704-661-2131

Distribution System

Line Type	Size Range (Inches)	Estimated % of lines
Asbestos Cement	4-16	21.86 %
Cast Iron	2-14	5.68 %
Ductile Iron	2-30	19.14 %
Galvanized Iron	2	0.22 %
Other	6-12	0.40 %
Polyvinyl Chloride	2-12	52.70 %

What are the estimated total miles of distribution system lines? 323 Miles

How many feet of distribution lines were replaced during 2025? 10,085 Feet

How many feet of new water mains were added during 2025? 28,185 Feet

How many meters were replaced in 2025? 912

How old are the oldest meters in this system? 24 Year(s)

How many meters for outdoor water use, such as irrigation, are not billed for sewer services? 732

What is this system's finished water storage capacity? 7.2500 Million Gallons

Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included. No

The City is in the process of "cleaning" duplicates in GIS. Thus, the total distribution pipe quantities are more accurate than previously reported.

Programs

Does this system have a program to work or flush hydrants? Yes, Annually

Does this system have a valve exercise program? Yes, 2 Years or More

Does this system have a cross-connection program? Yes

Does this system have a program to replace meters? Yes

Does this system have a plumbing retrofit program? No

Does this system have an active water conservation public education program? Yes

Does this system have a leak detection program? Yes

Water Conservation

What type of rate structure is used? Increasing Block

How much reclaimed water does this system use? 0.0000 MGD For how many connections? 1

Does this system have an interconnection with another system capable of providing water in an emergency? Yes

2. Water Use Information

Service Area

Sub-Basin(s)	% of Service Population
Rocky River (18-4)	98 %
Catawba River (03-1)	2 %

County(s)	% of Service Population
Union	100 %

What was the year-round population served in 2025? 40,040

Has this system acquired another system since last report? No

Water Use by Type

Type of Use	Metered Connections	Metered Average Use (MGD)
Residential	13,770	2.2100
Commercial	2,108	0.9800
Industrial	52	2.6100
Institutional	100	0.2700

How much water was used for system processes (backwash, line cleaning, flushing, etc.)? 0.7450 MGD

Industrial, institutional and commericial connections include industrial irrigation and fire line connections.

Water Sales

Purchaser	PWSID	Average Daily Sold (MGD)	Days Used	Contract			Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Purchaser	PWSID	Average Daily Sold (MGD)	Days Used	MGD	Expiration	Recurring	Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Union County	01-90-413	0.0000	0	0.0000	2120	Yes	Yes	8-16	Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases

	Average Daily Use (MGD)	Max Day Use (MGD)		Average Daily Use (MGD)	Max Day Use (MGD)		Average Daily Use (MGD)	Max Day Use (MGD)
Jan	6.8400	8.1680	May	7.5290	8.4810	Sep	8.2220	9.5130
Feb	6.5360	7.9950	Jun	7.8890	9.7780	Oct	8.0850	10.5180
Mar	6.5850	7.5580	Jul	8.4800	9.7420	Nov	7.0070	8.6080
Apr	7.2080	8.6560	Aug	7.6940	9.1890	Dec	6.8910	7.9560

Surface Water Sources

Stream	Reservoir	Average Daily Withdrawal		Maximum Day Withdrawal (MGD)	Available Raw Water Supply		Usable On-Stream Raw Water Supply Storage (MG)
Stream	Reservoir	MGD	Days Used	Maximum Day Withdrawal (MGD)	MGD	* Qualifier	Usable On-Stream Raw Water Supply Storage (MG)
Richardson Creek	Lake Lee and Monroe	3.2000	74	0.0000	2.3000	SY50	690.0000
Stewart Creek	Lake Twitty	7.0500	365	9.3720	7.1000	SY50	2,074.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)

Stream	Reservoir	Drainage Area (sq mi)	Metered?	Sub-Basin	County	Year Offline	Use Type
Richardson Creek	Lake Lee and Monroe	52	Yes	Rocky River (18-4)	Union		Regular
Stewart Creek	Lake Twitty	34	Yes	Rocky River (18-4)	Union		Regular

What is this system's off-stream raw water supply storage capacity? 2,760 Million gallons

Are surface water sources monitored? Yes, Daily

Are you required to maintain minimum flows downstream of its intake or dam? No

Does this system anticipate transferring surface water between river basins? No

Lake Monroe flows by gravity to Lake Lee. Pumps transfer water from Lake Lee to the head of Lake Twitty.
Within the year, the City of Monroe will be partnering with a consultant to perform a Source Water Supply Study.

Water Purchases From Other Systems

Seller	PWSID	Average Daily Purchased (MGD)	Days Used	Contract			Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Seller	PWSID	Average Daily Purchased (MGD)	Days Used	MGD	Expiration	Recurring	Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Union County	01-90-413	0.3645	200	1.9900	2099	Yes	No	8-16	Regular

Water Treatment Plants

Plant Name	Permitted Capacity (MGD)	Is Raw Water Metered?	Is Finished Water Ouput Metered?	Source
John Glenn WTP	11.0000	Yes	Yes	Lakes Twitty, Lee, and Monroe

Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025? No

If yes, was any water conservation implemented?

Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025? No

If yes, was any water conservation implemented?

Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years? No

4. Wastewater Information

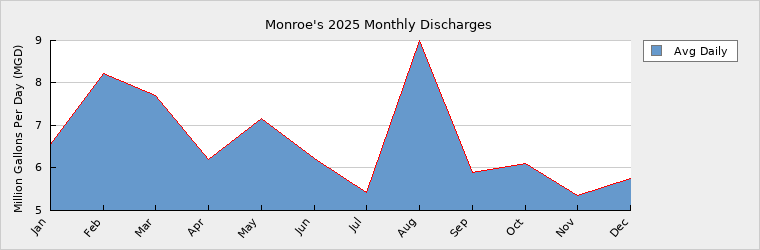

Monthly Discharges

	Average Daily Discharge (MGD)		Average Daily Discharge (MGD)		Average Daily Discharge (MGD)
Jan	6.5470	May	7.1690	Sep	5.8900
Feb	8.2270	Jun	6.2230	Oct	6.0990
Mar	7.7090	Jul	5.4320	Nov	5.3600
Apr	6.1970	Aug	8.9980	Dec	5.7470

How many sewer connections does this system have? 14,010

How many water service connections with septic systems does this system have? 1,100

Are there plans to build or expand wastewater treatment facilities in the next 10 years? Yes

As previously indicated, the City is in the process of cleaning the GIS data. The number of sewer connections and septic systems is an estimate only.
Wastewater treatment plant expansion of 3 MGD (for future treatment capacity of 13.4 MGD) is planned for construction with the next 10 years.

Wastewater Permits

Permit Number	Type	Permitted Capacity (MGD)	Design Capacity (MGD)	Average Annual Daily Discharge (MGD)	Maximum Day Discharge (MGD)	Receiving Stream	Receiving Basin
NC0024333	WWTP	10.4000	10.4000	6.6330	15.0860	Richardson Creek	Rocky River (18-4)
NC0080381	WTP	0.9306	1.4000	0.7450	1.1620	Stewart Creek	Rocky River (18-4)

Wastewater Interconnections

Water System	PWSID	Type	Average Daily Amount		Contract Maximum (MGD)
Water System	PWSID	Type	MGD	Days Used	Contract Maximum (MGD)
Union County	01-90-413	Receiving	1.3700	365	2.6500

5. Planning

Projections

	2025	2030	2040	2050	2060	2070
Year-Round Population	40,040	44,209	53,890	65,692	80,078	97,614
Seasonal Population	0	0	0	0	0	0

Residential	2.2100	2.4400	2.9740	3.6260	4.4200	5.3880
Commercial	0.9800	1.0820	1.3190	1.6080	1.9600	2.3890
Industrial	2.6100	2.6760	2.8130	2.9570	3.1080	3.2670
Institutional	0.2700	0.2980	0.3630	0.4430	0.5400	0.6580
System Process	0.7450	0.8230	1.0030	1.2220	1.4900	1.8160
Unaccounted-for	1.0835	0.0000	0.0000	0.0000	0.0000	0.0000

Population projected to grow at 2% per year.
Residential, commercial and institutional water use projected at 2% annual growth.
Industrial water use projected at 0.5% annual growth.

Demand v/s Percent of Supply

	2025	2030	2040	2050	2060	2070
Surface Water Supply	9.4000	9.4000	9.4000	9.4000	9.4000	9.4000
Ground Water Supply	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000
Purchases	1.9900	1.9900	1.9900	1.9900	1.9900	1.9900
Future Supplies		0.0000	0.0000	0.0000	0.0000	0.0000
Total Available Supply (MGD)	11.3900	11.3900	11.3900	11.3900	11.3900	11.3900
Service Area Demand	7.8985	7.3190	8.4720	9.8560	11.5180	13.5180
Sales	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000
Future Sales		0.0000	0.0000	0.0000	0.0000	0.0000
Total Demand (MGD)	7.8985	7.3190	8.4720	9.8560	11.5180	13.5180
Demand as Percent of Supply	69%	64%	74%	87%	101%	119%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 55 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here. No changes

Are there other demand management practices you will implement to reduce your future supply needs? The City is partnering with an engineering consultant to perform a comprehensive Source Water Supply Study to evaluate the capacity, reliabiity, resilience, regulatory feasibility, and long-term sustainability of the City's existing water supply assets and to identify and assess potential supplemental or alternative water sources capable of meeting current and projected demands.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs? See previous note.

How does the water system intend to implement the demand management and supply planning components above? See previous note.

Additional Information

Has this system participated in regional water supply or water use planning? No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues: The City is partnering with an engineering consultant to perform a comprehensive Source Water Supply Study to evaluate the capacity, reliabiity, resilience, regulatory feasibility, and long-term sustainability of the City's existing water supply assets and to identify and assess potential supplemental or alternative water sources capable of meeting current and projected demands.
