Louisburg

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Louisburg   PWSID: 02-35-015
Mailing Address:110 West Nash St.
Louisburg, NC 27549		Ownership:Municipality

Contact Person:Ray ProctorTitle:Water Plant Superintendent
Phone:919-496-3433Cell/Mobile:252-343-4758

Secondary Contact:Matthew Little Phone:252-446-1766
Mailing Address:110 West Nash Street
Louisburg, NC 27549		Cell/Mobile:252-343-4758
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 8 4.00 %
Cast Iron 6-12 22.00 %
Ductile Iron 4-16 47.00 %
Galvanized Iron 1-2 1.00 %
Polyvinyl Chloride 6-12 26.00 %
What are the estimated total miles of distribution system lines?   37 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   2,980 Feet
How many meters were replaced in 2025?   90
How old are the oldest meters in this system?   17 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   74
What is this system's finished water storage capacity?   0.8500 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Monthly
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Decreasing Block, Flat/Fixed, Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Tar River (15-1)100 %
County(s)% of Service Population
Franklin100 %
What was the year-round population served in 2025?   3,496
Has this system acquired another system since last report?   No

Looked at www.osbm.nc.gov but only info found was 2024 pop.3,329. Last year and this year we looked at Worldpopulation.com which showed 3,404 for 2024 and for 2025 is shows 3,496 and that is the figure we used this year.

Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 1,390 0.1252 0 0.0000
Commercial 359 0.2080 0 0.0000
Industrial 7 0.0120 0 0.0000
Institutional 10 0.0011 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.1140 MGD

We list our largest Water Purchaser as Bulk, which is sold to Franklin Co. and average use in MGD=.322

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Franklin County Public Utilities 02-35-030 0.3220 365 0.5000 2027 Yes No 16 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.9159 1.1970 May 0.8954 1.3230 Sep 0.8720 1.1051
Feb 0.8978 1.1340 Jun 0.9690 1.3020 Oct 0.8490 1.0920
Mar 0.8597 1.0710 Jul 0.9120 1.2810 Nov 0.7110 1.1760
Apr 0.8972 1.1550 Aug 0.8720 1.2810 Dec 0.7650 1.0920

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Tar River 0.8680 365 1.3230 2.0000 T 16.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Tar River 426 Yes Tar River (15-1) Franklin Regular
What is this system's off-stream raw water supply storage capacity?   0 Million gallons
Are surface water sources monitored?   Yes, Daily
Are you required to maintain minimum flows downstream of its intake or dam?   No
Does this system anticipate transferring surface water between river basins?   No

Added this year the amount of Water behind dam as far as 2.5 miles up-stream based off of Hazen & Sawyer Water Shortage Response Plan data showing there is over 16 Million gallons in Tar River in storage behind T.O.L dam.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Franklin County Public Utilities 02-35-030 0.0000 0 0.0000 No No 16 Regular

The Town of Louisburg has made no purchases of Water from Franklin County in 2025.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Louisburg 2.0000 Yes No Tar River
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

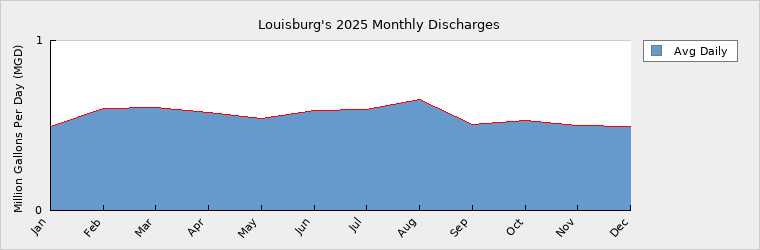

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.4960 May 0.5420 Sep 0.5060
Feb 0.5990 Jun 0.5860 Oct 0.5320
Mar 0.6080 Jul 0.5940 Nov 0.4980
Apr 0.5770 Aug 0.6540 Dec 0.4970

How many sewer connections does this system have?   1,584
How many water service connections with septic systems does this system have?   18
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0020231 WWTP 1.3700 1.5000 0.5570 1.6200 Tar River Tar River (15-1)
WQ0005981 WWTP 1.3700 1.5000 0.0081 0.1190 Land Application Tar River (15-1)

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 3,496 3,573 3,730 3,894 4,066 4,244
Seasonal Population 0 0 0 0 0 0

Residential 0.1252 0.1310 0.1360 0.1420 0.1480 0.1540
Commercial 0.2080 0.2110 0.2200 0.2300 0.2400 0.2510
Industrial 0.0120 0.0130 0.0140 0.0150 0.0160 0.0170
Institutional 0.0011 0.0610 0.0640 0.0670 0.0700 0.0730
System Process 0.1140 0.0550 0.0580 0.0600 0.0630 0.0660
Unaccounted-for 0.0857 0.0877 0.0916 0.0957 0.1000 0.1044
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 2.0000 2.0000 2.0000 2.0000 2.0000 2.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 2.0000 2.0000 2.0000 2.0000 2.0000 2.0000
Service Area Demand 0.5460 0.5587 0.5836 0.6097 0.6370 0.6654
Sales 0.3220 0.5000 0.5000 0.5000 0.5000 0.5000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.8680 1.0587 1.0836 1.1097 1.1370 1.1654
Demand as Percent of Supply 43% 53% 54% 55% 57% 58%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 36 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   No Changes

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   No Changes

How does the water system intend to implement the demand management and supply planning components above?   No Changes

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?  n/a

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   n/a
