Bunn

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Bunn   PWSID: 02-35-025
Mailing Address:P.O. Box 398
Bunn, NC 27508		Ownership:Municipality

Contact Person:Tony LoweryTitle:Public Works Supervisor
Phone:919-497-7819Cell/Mobile:--

Secondary Contact:Paul Langfield Phone:336-731-6963
Mailing Address:
, NC 		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-10 90.00 %
Polyvinyl Chloride 10 10.00 %
What are the estimated total miles of distribution system lines?   11 Miles
How many feet of distribution lines were replaced during 2025?   120 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   8
How old are the oldest meters in this system?   39 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   2
What is this system's finished water storage capacity?   0.2000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Weekly
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes

We use NCRWA for leak detection as needed.

Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Tar River (15-1)100 %
County(s)% of Service Population
Franklin100 %
What was the year-round population served in 2025?   950
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 138 0.0281 0 0.0000
Commercial 39 0.0112 0 0.0000
Industrial 1 0.0009 0 0.0000
Institutional 3 0.0510 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0010 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.1490 May 0.0970 Sep 0.0811
Feb 0.0910 Jun 0.1210 Oct 0.0851
Mar 0.0930 Jul 0.1340 Nov 0.1100
Apr 0.1120 Aug 0.1060 Dec 0.0940

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Franklin Co 02-35-030 0.1061 365 0.5000 2059 Yes Yes 8,12 Regular

4. Wastewater Information

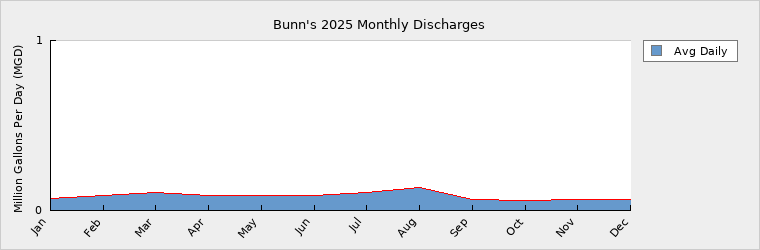

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0680 May 0.0860 Sep 0.0650
Feb 0.0890 Jun 0.0880 Oct 0.0610
Mar 0.1080 Jul 0.1040 Nov 0.0620
Apr 0.0880 Aug 0.1350 Dec 0.0640

How many sewer connections does this system have?   275
How many water service connections with septic systems does this system have?   1
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0042269 WWTP 0.1500 0.1500 0.0850 0.2000 Crooked Creek Tar River (15-1)

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 950 964 1,009 1,055 1,103 1,154
Seasonal Population 0 0 0 0 0 0

Residential 0.0281 0.0285 0.0298 0.0311 0.0325 0.0339
Commercial 0.0112 0.0114 0.0119 0.0124 0.0130 0.0135
Industrial 0.0009 0.0009 0.0009 0.0009 0.0009 0.0009
Institutional 0.0510 0.0517 0.0541 0.0564 0.0590 0.0615
System Process 0.0010 0.0010 0.0010 0.0010 0.0010 0.0010
Unaccounted-for 0.0139 0.0141 0.0147 0.0153 0.0160 0.0167
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.5000 0.5000 0.5000 0.5000 0.5000 0.5000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.5000 0.5000 0.5000 0.5000 0.5000 0.5000
Service Area Demand 0.1061 0.1076 0.1124 0.1171 0.1224 0.1275
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.1061 0.1076 0.1124 0.1171 0.1224 0.1275
Demand as Percent of Supply 21% 22% 22% 23% 24% 26%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 30 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   No Changes

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   No Changes

How does the water system intend to implement the demand management and supply planning components above?   No Changes

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
