Greensboro

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Greensboro   PWSID: 02-41-010
Mailing Address:PO Box 3136
Greensboro, NC 27402		Ownership:Municipality

Contact Person:Scott JewellTitle:Water Supply Manager
Phone:336-373-7900Cell/Mobile:336-430-6550

Secondary Contact:Earl Green Phone:336-373-7909
Mailing Address:1041 Battleground Ave
Greensboro, NC 27408		Cell/Mobile:336-430-6550
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Cast Iron 1-42 34.50 %
Ductile Iron 2-60 60.87 %
Other .7-48 2.76 %
Polyvinyl Chloride .7-12 1.87 %
What are the estimated total miles of distribution system lines?   1,565 Miles
How many feet of distribution lines were replaced during 2025?   6,678 Feet
How many feet of new water mains were added during 2025?   51,060 Feet
How many meters were replaced in 2025?   5,639
How old are the oldest meters in this system?   25 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   7,100
What is this system's finished water storage capacity?   31.8000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

The estimated total miles of water lines do not include privately owned water lines (estimated 369 miles).

The City of Greensboro has replaced the majority of the water meters in its system in the past 5 years. There still exist a few old meters in the system but their age is not a fair representation of the meter age distribution. The average age of Greensboro meters is approximately 6 years old.

Programs
Does this system have a program to work or flush hydrants?   Yes, 2 Years or More
Does this system have a valve exercise program?   Yes, 2 Years or More
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes

Our current leak detection program is mostly focus on detecting leaks being reported. Greensboro plans to improve the program to make it a more proactive program and integrated into its non-revenue water program. The goal is to use a combination of technology such as DMAs, machine learning based on pipe scoring factors, and satellite leak detection to help target water mains for repair/replacement and reduce real loss.

Water Conservation
What type of rate structure is used?   Decreasing Block, Flat/Fixed, Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Haw River (02-1)93 %
Deep River (02-2)7 %
County(s)% of Service Population
Guilford100 %
What was the year-round population served in 2025?   330,632
Has this system acquired another system since last report?   No

The year around population served comprises the estimated population of the City of Greensboro and the estimated population outside city limit in Guilford County. The estimated population of Greensboro resulted from projection based on 2010-2024 populations estimates data from the Office of State Budget and Management (OSBM). The estimated population outside city limit is calculated based on the number of water service connections outside city limit and the average number of persons served per water service connection.

Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 101,351 16.7100 0 0.0000
Commercial 9,144 9.5400 0 0.0000
Industrial 51 1.7400 0 0.0000
Institutional 290 0.7900 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   2.5600 MGD

The amount of water used for system processes includes water used for backwash at the City's both water treatment plants, flushing in the distribution system for water quality purposes and for the City's Fire Department routine maintenance, water tank servicing, and water lines cleaning.

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
City of Burlington 02-01-010 0.0044 119 2028 Yes Yes 12,16 Emergency
City of Reidsville 02-79-020 0.0000 0 2029 No Yes 30 Emergency
Town of Jamestown 02-41-030 0.1055 365 0.1250 Yes Yes 12 Regular

Jamestown purchases water from PTRWA (allocation of 0.775 MGD) via the distribution lines of High Point and Greensboro. Jamestown is obligated to purchase or pay for 0.500 MGD from PTRWA, and this amount is included in the 2.780 MGD (2.28 MGD firm allocation for High Point + 0.5 MGD for Jamestown) sales contract with High Point. Jamestown routes 0.125 MGD through Greensboro, and this amount is included in the 7.9355 MGD sales contract with Greensboro (7.83 MGD + 0.125 MGD). 7.83 MGD is the firm allocation for Greensboro and 0.125 MGD is additional water for Jamestown above the firm allocation or requested amount, whichever is greater.

The Jamestown contract value (0.15 MGD) is the difference between the allocated amount (0.775 MGD) and the sum of the obligated contract amount (0.500 MGD), and water routed through Greensboro (0.125 MGD).

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 34.1437 44.9818 May 33.2448 36.0752 Sep 37.0835 42.4204
Feb 31.6439 34.9362 Jun 34.4767 42.0787 Oct 34.9009 37.1838
Mar 31.9606 37.0230 Jul 34.7225 37.8292 Nov 32.6855 38.0155
Apr 33.0631 36.9822 Aug 35.3645 39.7234 Dec 30.9872 33.7507

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Brush Creek. Lake Higgins 0.0000 0 0.0000 0.0000 SY50 768.0000
Reedy Fork Cr. Lake Townsend 16.2522 365 20.7660 28.2000 SY50 6,304.0000
Reedy Fork Cr.Horsepen Cr. Lake Brandt 8.4465 365 14.8700 12.0000 SY50 1,930.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Brush Creek. Lake Higgins 11 No Haw River (02-1) Guilford 2018 Emergency
Reedy Fork Cr. Lake Townsend 59 Yes Haw River (02-1) Guilford Regular
Reedy Fork Cr.Horsepen Cr. Lake Brandt 35 Yes Haw River (02-1) Guilford Regular
What is this system's off-stream raw water supply storage capacity?   20 Million gallons
Are surface water sources monitored?   Yes, Daily
Are you required to maintain minimum flows downstream of its intake or dam?   Yes
Does this system anticipate transferring surface water between river basins?   No
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
City of Burlington 02-01-010 1.9446 365 5.0000 2028 Yes Yes 12,16 Regular
City of High Point 02-41-020 0.0000 0 Yes Yes 12,12 Emergency
City of Reidsville 02-79-020 0.9920 365 1.0000 2029 Yes Yes 30 Regular
City of Winston-Salem 02-34-010 0.0000 0 3.0000 Yes Yes 12 Emergency
Piedmont Triad Regional Water Authority 30-76-010 6.7714 365 7.9550 2066 Yes Yes 48 Regular

PTRWA contract amount is set to increase so that Greensboro can meet future water needs.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Lake Townsend WTP 30.0000 Yes Yes Haw River Basin-Reedy Fork Creek
Mitchell Water Treatment Plant 24.0000 Yes Yes Haw River Basin-Reedy Fork Creek
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  Yes

4. Wastewater Information

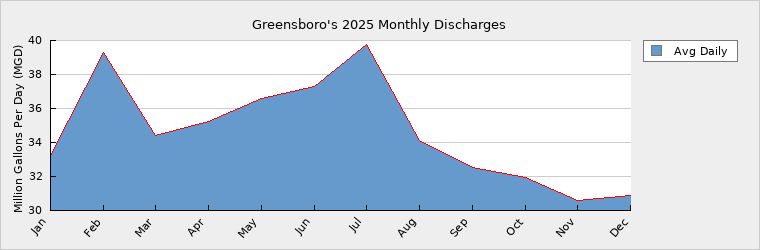

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 33.2500 May 36.6100 Sep 32.5000
Feb 39.2700 Jun 37.2700 Oct 31.9400
Mar 34.4300 Jul 39.7600 Nov 30.5700
Apr 35.2400 Aug 34.0900 Dec 30.8700

How many sewer connections does this system have?   108,587
How many water service connections with septic systems does this system have?   1,366
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0047384 WWTP 56.0000 56.0000 34.6200 71.1100 South Buffalo Creek Haw River (02-1)
NC0081426 WTP 0.0000 24.0000 0.0000 0.0000 North Buffalo Creek Haw River (02-1)
NCG590017 WTP 2.0000 32.0000 0.3044 1.9400 Reedy Fork Cr. Haw River (02-1)
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
City of High Point 02-41-020 Discharging 0.1730 365
Town of Jamestown 02-41-030 Discharging 0.4668 365
City of Burlington 02-01-010 Receiving 0.2180 365 0.9000

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 330,632 349,184 382,790 419,630 460,015 504,287
Seasonal Population 0 0 0 0 0 0

Residential 16.7100 17.2321 20.2584 23.1969 26.0486 28.8785
Commercial 9.5400 9.8381 11.5658 13.2435 14.8715 16.4872
Industrial 1.7400 1.7944 2.1095 2.4155 2.7124 3.0071
Institutional 0.7900 0.8147 0.9578 1.0967 1.2315 1.3653
System Process 2.5600 3.5600 3.5600 3.5600 3.5600 3.5600
Unaccounted-for 2.9598 3.7100 3.8000 4.0400 4.4300 4.8500
Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
City of Burlington 02-01-010 Purchase 1.8000 2030 Regular
City of Reidsville 02-79-020 Purchase 4.0000 2040 Regular
PTRWA 36-76-010 Purchase 1.5710 2030 Regular
PTRWA 36-76-010 Purchase 8.9130 2040 Regular
PTRWA 36-76-010 Purchase 0.0000 2050 Regular
PTRWA 36-76-010 Purchase 7.1800 2060 Regular

The City of Greensboro plans to increase its water purchases from PTRWA to 18.32 MGD by 2040 and 25.5 MGD by 2060.

Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 40.2000 40.2000 40.2000 40.2000 40.2000 40.2000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 13.9550 13.9550 13.9550 13.9550 13.9550 13.9550
Future Supplies 3.3710 16.2840 16.2840 23.4640 23.4640
Total Available Supply (MGD) 54.1550 57.5260 70.4390 70.4390 77.6190 77.6190
Service Area Demand 34.2998 36.9493 42.2515 47.5526 52.8540 58.1481
Sales 0.1069 0.1294 0.1294 0.1294 0.1294 0.1294
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 34.4067 37.0787 42.3809 47.6820 52.9834 58.2775
Demand as Percent of Supply 64% 64% 60% 68% 68% 75%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 51 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    The City of Greensboro conducts a water audit every year and has completed a non-revenue water analysis in which mid-term and long-term non-revenue water (NRW) targets were established.

Are there other demand management practices you will implement to reduce your future supply needs?   The City of Greensboro conducts water supply meter testing on a regular basis to ensure supply flow accuracy. Additionally, the City will be developing DMAs and using leak detection technology to identify real loss areas and reduce non-revenue water.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   No other supplies than the ones listed in future supplies are being considered at this stage.

How does the water system intend to implement the demand management and supply planning components above?   Mitchell Water Treatment Plant is undergoing improvements for hydraulic efficiency. The City of Greensboro has a public education program that encourages the public to conserve water.

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, The City of Greensboro is participating in regional water supply planning through partnership with neighboring water systems including the Piedmont Triad Regional Water Authority (PTRWA), City of Burlington, City of High Point, City of Reidsville, and the City of Winston-Salem.

What major water supply reports or studies were used for planning?  The following major studies were used for planning:
- 2025 Safe Yield Study and 2024 Water Master Plan carried out by Hazen and Sawyer.
- 2025 Non-Revenue Water Analysis developed by Cavanaugh.

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   The City currently has two advanced treatment projects planned for Mitchell WTP and Townsend WTP to address emerging contaminants. It is anticipated that these projects will start construction in 2026 and both projects will install GAC facilities. Mitchell WTP will also start construction on residual management improvements in 2026.

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
