High Point

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name:	High Point	PWSID:	02-41-020
Mailing Address:	P.O. Box 230 High Point, NC 27261	Ownership:	Municipality

Contact Person:	NED BRILEY	Title:	WTP Superintendent
Phone:	336-883-3410	Cell/Mobile:	336-822-7991

Distribution System

Line Type	Size Range (Inches)	Estimated % of lines
Cast Iron	6-36	43.00 %
Ductile Iron	6-36	56.00 %
Galvanized Iron	1/2-2	0.44 %
Other	30-48	0.56 %

What are the estimated total miles of distribution system lines? 631 Miles

How many feet of distribution lines were replaced during 2025? 494 Feet

How many feet of new water mains were added during 2025? 8,163 Feet

How many meters were replaced in 2025? 7,299

How old are the oldest meters in this system? 78 Year(s)

How many meters for outdoor water use, such as irrigation, are not billed for sewer services? 2,099

What is this system's finished water storage capacity? 19.0000 Million Gallons

Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included. No

Programs

Does this system have a program to work or flush hydrants? Yes, Weekly

Does this system have a valve exercise program? Yes, Weekly

Does this system have a cross-connection program? Yes

Does this system have a program to replace meters? Yes

Does this system have a plumbing retrofit program? No

Does this system have an active water conservation public education program? Yes

Does this system have a leak detection program? No

We recently started installing pressure monitoring hydrants in the distribution system.

Water Conservation

What type of rate structure is used? Decreasing Block, Uniform, Other

How much reclaimed water does this system use? 0.0000 MGD For how many connections? 0

Does this system have an interconnection with another system capable of providing water in an emergency? Yes

2. Water Use Information

Service Area

Sub-Basin(s)	% of Service Population
Deep River (02-2)	80 %
Yadkin River (18-1)	20 %

County(s)	% of Service Population
Guilford	100 %
Davidson	0 %
Randolph	0 %

What was the year-round population served in 2025? 118,662

What was the seasonal population and months served in 2025? (if applicable) 168,662 ( Mar Sep )

Has this system acquired another system since last report? No

Water Use by Type

Type of Use	Metered Connections	Metered Average Use (MGD)	Non-Metered Connections	Non-Metered Estimated Use (MGD)
Residential	40,079	5.9060	25	0.0000
Commercial	3,647	3.2480	164	0.0050
Industrial	317	0.9140	44	0.0000
Institutional	0	0.0000	0	0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)? 2.4540 MGD

Includes water conveyed to Jamestown. The City of High Point is in the process of an advanced metering infrastructure (AMI) conversion project. The decrease in metering connections is due to duplicate water meters in the 2024-meter inventory.

Water Sales

Purchaser	PWSID	Average Daily Sold (MGD)	Days Used	Contract			Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Purchaser	PWSID	Average Daily Sold (MGD)	Days Used	MGD	Expiration	Recurring	Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
City of Archdale	02-76-030	0.0100	365	0.5000		Yes	Yes	12	Regular
City of Greensboro	02-41-010	0.0000	0	0.0000		Yes	Yes	12-16	Emergency
City of Jamestown	02-41-030	0.3550	365	1.5000		Yes	Yes	6-10	Regular
City of Thomasville	02-29-020	0.0000	0	0.0000		Yes	No	12	Emergency
Davidson Water, Inc.	02-29-025	0.0000	0	0.0000		No	Yes	6	Emergency

Jamestown purchases most of their water from PTRWA and that water is routed through the distribution lines of Greensboro and High Point.
Any additional water needs are purchased from High Point via a separate 1.0 MGD contract.
Jamestown is obligated to purchase or pay for .500 MGD from PTRWA and this amount is included in the water purchase agreement with PTRWA

3. Water Supply Sources

Monthly Withdrawals & Purchases

	Average Daily Use (MGD)	Max Day Use (MGD)		Average Daily Use (MGD)	Max Day Use (MGD)		Average Daily Use (MGD)	Max Day Use (MGD)
Jan	13.1100	15.1400	May	15.5600	17.2300	Sep	15.8000	16.8700
Feb	13.1600	15.1300	Jun	15.8000	17.6400	Oct	16.0200	17.8700
Mar	14.6500	16.2800	Jul	15.6400	17.2900	Nov	14.8800	17.3600
Apr	15.2100	16.8400	Aug	15.6500	16.9100	Dec	13.3900	16.8600

Surface Water Sources

Stream	Reservoir	Average Daily Withdrawal		Maximum Day Withdrawal (MGD)	Available Raw Water Supply		Usable On-Stream Raw Water Supply Storage (MG)
Stream	Reservoir	MGD	Days Used	Maximum Day Withdrawal (MGD)	MGD	* Qualifier	Usable On-Stream Raw Water Supply Storage (MG)
Deep River (City Lake)	City Lake	12.5000	192	15.0500	8.6000	SY50	1,120.0000
Deep River (Oak Hollow)	Oak Hollow	11.7800	174	14.4300	12.8400	SY50	3,270.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)

Stream	Reservoir	Drainage Area (sq mi)	Metered?	Sub-Basin	County	Year Offline	Use Type
Deep River (City Lake)	City Lake	61	Yes	Deep River (02-2)	Guilford		Regular
Deep River (Oak Hollow)	Oak Hollow	32	Yes	Deep River (02-2)	Guilford		Regular

What is this system's off-stream raw water supply storage capacity? 0 Million gallons

Are surface water sources monitored? Yes, Daily

Are you required to maintain minimum flows downstream of its intake or dam? No

Does this system anticipate transferring surface water between river basins? No

Water Purchases From Other Systems

Seller	PWSID	Average Daily Purchased (MGD)	Days Used	Contract			Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Seller	PWSID	Average Daily Purchased (MGD)	Days Used	MGD	Expiration	Recurring	Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
City of Archdale	02-76-030	0.0012	365				Yes		Regular
City of Greensboro	02-41-010	0.0000	0			Yes	Yes	12-16	Emergency
City of Thomasville	02-29-020	0.0000	0			Yes	No	12	Emergency
Davidson Water Inc.	02-29-025	0.0354	365			Yes	Yes	16	Regular
PTRWA	30-76-010	2.7510	365	2.7800	2057	Yes	Yes	16-24	Regular

Water Treatment Plants

Plant Name	Permitted Capacity (MGD)	Is Raw Water Metered?	Is Finished Water Ouput Metered?	Source
Frank L. Ward Water Filtration	24.0000	Yes	Yes	City Lake & Oak Hollow Lake

Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025? No

If yes, was any water conservation implemented?

Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025? No

If yes, was any water conservation implemented?

Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years? No

4. Wastewater Information

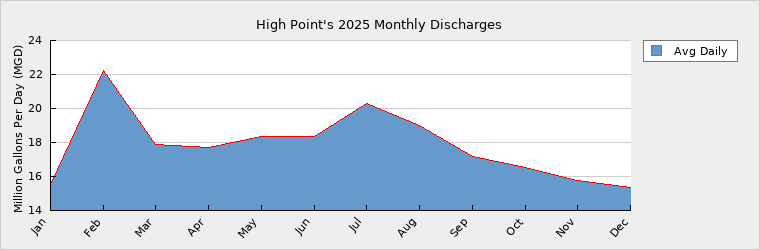

Monthly Discharges

	Average Daily Discharge (MGD)		Average Daily Discharge (MGD)		Average Daily Discharge (MGD)
Jan	15.5100	May	18.3800	Sep	17.1600
Feb	22.2100	Jun	18.3300	Oct	16.5200
Mar	17.9000	Jul	20.3100	Nov	15.7700
Apr	17.7000	Aug	18.9900	Dec	15.3300

How many sewer connections does this system have? 42,210

How many water service connections with septic systems does this system have? 341

Are there plans to build or expand wastewater treatment facilities in the next 10 years? Yes

Eastside WWTP is being evaluated for either an expansion or upgrade.

Wastewater Permits

Permit Number	Type	Permitted Capacity (MGD)	Design Capacity (MGD)	Average Annual Daily Discharge (MGD)	Maximum Day Discharge (MGD)	Receiving Stream	Receiving Basin
NC0024210	WWTP	26.0000	26.0000	14.9200	32.0200	Deep River	Deep River (02-2)
NC0024228	WWTP	10.0000	10.0000	2.8900	7.8100	Rich Fork Creek	Yadkin River (18-1)
NC0081256	WTP	0.0000	0.0000	0.9520	2.1000	Richland Creek	Deep River (02-2)

Wastewater Interconnections

Water System	PWSID	Type	Average Daily Amount		Contract Maximum (MGD)
Water System	PWSID	Type	MGD	Days Used	Contract Maximum (MGD)
City of Archdale	02-76-030	Receiving	0.9390	365	2.5000
City of Greensboro	02-41-010	Receiving	0.1700	365
City of Jamestown	02-41-030	Receiving	1.1360	365	2.0000
Davidson Water Inc.	02-29-025	Receiving	0.0940	365
Sedgefield	00-00-000	Receiving	0.1700	365	0.2250
Winston-Salem	02-34-020	Receiving	0.2600	365

5. Planning

Projections

	2025	2030	2040	2050	2060	2070
Year-Round Population	118,662	122,714	130,893	139,616	148,921	158,846
Seasonal Population	168,662	172,714	180,893	184,616	198,921	208,846

Residential	5.9060	5.9900	6.3200	6.6000	6.8200	7.2800
Commercial	3.2530	3.3000	3.4800	3.6400	3.6300	4.0000
Industrial	0.9140	0.9300	0.9800	1.0200	1.0600	1.1200
Institutional	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000
System Process	2.4540	2.4900	2.5200	2.5100	2.4800	3.0300
Unaccounted-for	2.0866	2.1654	2.3103	2.4619	2.6268	2.8000

Demand v/s Percent of Supply

	2025	2030	2040	2050	2060	2070
Surface Water Supply	21.4400	21.4400	21.4400	21.4400	21.4400	21.4400
Ground Water Supply	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000
Purchases	2.8166	2.8166	2.8166	2.8166	2.8166	2.8166
Future Supplies		0.0000	0.0000	0.0000	0.0000	0.0000
Total Available Supply (MGD)	24.2566	24.2566	24.2566	24.2566	24.2566	24.2566
Service Area Demand	14.6136	14.8754	15.6103	16.2319	16.6168	18.2300
Sales	0.3650	2.0000	2.0000	2.0000	2.0000	2.0000
Future Sales		0.0000	0.0000	0.0000	0.0000	0.0000
Total Demand (MGD)	14.9786	16.8754	17.6103	18.2319	18.6168	20.2300
Demand as Percent of Supply	62%	70%	73%	75%	77%	83%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 50 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here. No Changes at this time.

Are there other demand management practices you will implement to reduce your future supply needs? No Changes at this time.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs? No Changes at this time.

How does the water system intend to implement the demand management and supply planning components above? No Changes at this time.

Additional Information

Has this system participated in regional water supply or water use planning? Yes, Member of the Piedmont Triad Regional Water Authority.

What major water supply reports or studies were used for planning? 2019 Water System Master Plan performed by Hazen and Sawyer.

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues: Arnold Koonce City Lake Dam is under design for future replacement.
