Roxboro

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Roxboro   PWSID: 02-73-010
Mailing Address:P. O. Box 128
Roxboro, NC 27573		Ownership:Municipality

Contact Person:Sammy YarboroTitle:Water Plant Superintendent
Phone:336-599-4906Cell/Mobile:336-459-9331

Secondary Contact:Brooks Lockhart Phone:336-322-6010
Mailing Address:PO Box 128
Roxboro, NC 27573		Cell/Mobile:336-459-9331
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Cast Iron 4-12 36.00 %
Ductile Iron 6-16 50.00 %
Galvanized Iron 1-2 2.00 %
Polyvinyl Chloride 2-12 12.00 %
What are the estimated total miles of distribution system lines?   143 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   269
How old are the oldest meters in this system?   14 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   121
What is this system's finished water storage capacity?   5.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, As Needed
Does this system have a valve exercise program?   Yes, As Needed
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes

We monitor storage tanks 24 hours a day for excessive water loss and visual line inspections.

Water Conservation
What type of rate structure is used?   Decreasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

Too far of a distance.

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Roanoke River (14-1)80 %
Neuse River (10-1)20 %
County(s)% of Service Population
Person100 %
What was the year-round population served in 2025?   13,139
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 4,658 0.5262 0 0.0000
Commercial 585 0.2383 0 0.0000
Industrial 23 0.4960 0 0.0000
Institutional 157 0.4606 3 0.0225

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.5410 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 2.7450 3.1600 May 2.3340 2.8600 Sep 2.7050 3.5000
Feb 2.4880 2.4890 Jun 2.4770 2.9400 Oct 2.6800 3.0000
Mar 2.4530 3.0000 Jul 2.7420 3.7700 Nov 2.6990 3.3300
Apr 2.4450 2.8900 Aug 2.5200 3.1700 Dec 2.7140 3.1700

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
South Hyco Creek Lake Roxboro 0.0000 0 0.0000 7.8000 SY20 2,850.0000
Stories and Satterfield Creeks Roxboro City Lake 2.5800 365 3.7700 3.2000 SY20 750.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
South Hyco Creek Lake Roxboro 10 Yes Roanoke River (14-1) Person Regular
Stories and Satterfield Creeks Roxboro City Lake 23 Yes Roanoke River (14-1) Person Regular
What is this system's off-stream raw water supply storage capacity?   0 Million gallons
Are surface water sources monitored?   Yes, Daily
Are you required to maintain minimum flows downstream of its intake or dam?   No
Does this system anticipate transferring surface water between river basins?   No
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Roxboro Water Treatment Plant 8.0000 Yes Yes Roxboro City Lake and Lake Roxboro
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

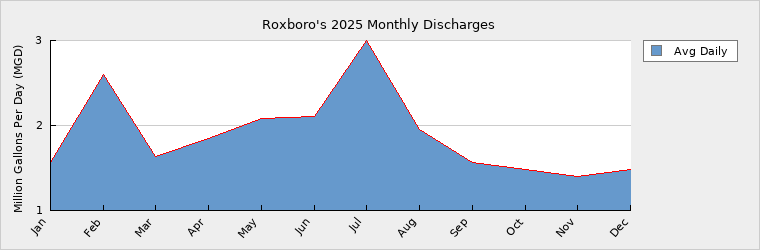

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 1.5700 May 2.0800 Sep 1.5600
Feb 2.6000 Jun 2.1000 Oct 1.4800
Mar 1.6300 Jul 3.0000 Nov 1.4000
Apr 1.8500 Aug 1.9500 Dec 1.4800

How many sewer connections does this system have?   3,901
How many water service connections with septic systems does this system have?   1,522
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0021024 WWTP 5.0000 5.0000 1.9000 9.1000 Marlowes Creek Roanoke River (14-1)

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 13,139 14,219 15,000 15,900 16,500 17,250
Seasonal Population 0 0 0 0 0 0

Residential 0.5262 0.9500 0.9550 0.9650 0.9700 0.9750
Commercial 0.2383 0.2500 0.2550 0.2600 0.2650 0.2700
Industrial 0.4960 0.5000 0.5150 0.5300 0.5350 0.5400
Institutional 0.4831 0.5000 0.5050 0.5100 0.5200 0.5250
System Process 0.5410 0.1500 0.1600 0.1650 0.1650 0.1700
Unaccounted-for 0.2954 0.3039 0.2166 0.2198 0.2230 0.2263
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000
Service Area Demand 2.5800 2.6539 2.6066 2.6498 2.6780 2.7063
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 2.5800 2.6539 2.6066 2.6498 2.6780 2.7063
Demand as Percent of Supply 23% 24% 24% 24% 24% 25%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 40 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, Person County, Caswell County and Yanceyville have an agreement to share an intake on the Dan River.

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
