St Pauls

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: St Pauls   PWSID: 03-78-030
Mailing Address:P. O. Box 364 210 W. Blue St.
St. Pauls, NC 28384		Ownership:Municipality

Contact Person:Benton RogersTitle:Asst. Public Works Director
Phone:910-865-5164Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-8 4.00 %
Cast Iron 4-8 60.00 %
Polyvinyl Chloride 2-8 36.00 %
What are the estimated total miles of distribution system lines?   17 Miles
How many feet of distribution lines were replaced during 2025?   40 Feet
How many feet of new water mains were added during 2025?   200 Feet
How many meters were replaced in 2025?   20
How old are the oldest meters in this system?   21 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   7
What is this system's finished water storage capacity?   0.4500 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

This plan includes the St Paul's Water System (NC0378030), Evans Road / St Paul's (NC5078006) and Robeson County / St Paul's (NC5078001).

Programs
Does this system have a program to work or flush hydrants?   Yes, Semi-Annually
Does this system have a valve exercise program?   Yes, As Needed
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes

We use NCRWA as needed for leak detection services.

Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

St Pauls has an emergency use interconnect with Robeson County.

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Lumber River (09-1)100 %
County(s)% of Service Population
Robeson100 %
What was the year-round population served in 2025?   3,156
Has this system acquired another system since last report?   No

The Population above includes the St Paul's Water System (NC0378030), Evans Road / St Paul's (NC5078006) and Robeson County / St Paul's (NC5078001). The system map is updated to show each system boundary in the uploaded shape files.

Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 927 0.1760 0 0.0000
Commercial 139 0.0480 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0260 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.2690 0.3140 May 0.2980 0.3800 Sep 0.3160 0.3820
Feb 0.2490 0.3320 Jun 0.3950 0.3990 Oct 0.2680 0.3340
Mar 0.2690 0.3080 Jul 0.2780 0.3340 Nov 0.2780 0.4570
Apr 0.2640 0.3810 Aug 0.2670 0.3570 Dec 0.2600 0.3980

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
#2 0.1130 122 0.169 0.2520 Regular
#3 0.1520 121 0.254 0.5040 Regular
#4 0.2660 212 0.471 0.6000 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
#2 337 97 97 300 6 Yes
#3 311 87 87 301 4 Yes
#4 330 100 100 312 6 Yes
Are ground water levels monitored?   Yes, Annually
Does this system have a wellhead protection program?   Yes

St Paul's has an approved well head protection plan, and is currently in process of updating the plan.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Robeson County Water 03-78-055 0.0350 365 0.0000 Yes Yes 6-12 Regular

St Paul's purchases water for the three water systems covered in this plan from Robeson County. There is no official purchase contract with Robeson County. Water is supplied to two of the systems on a daily basis as sole supply with intermittent supplement for the Town's main system.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Town of St. Pauls 1.0000 Yes Yes Groundwater
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

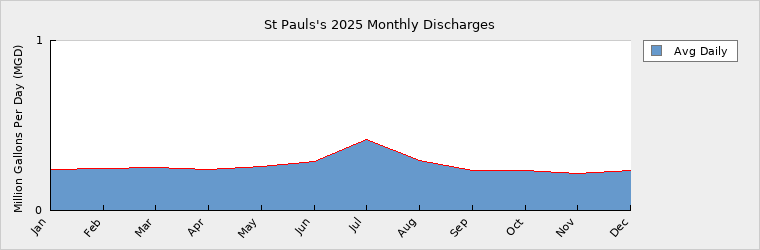

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.2410 May 0.2590 Sep 0.2370
Feb 0.2470 Jun 0.2880 Oct 0.2330
Mar 0.2530 Jul 0.4200 Nov 0.2170
Apr 0.2410 Aug 0.2920 Dec 0.2380

How many sewer connections does this system have?   1,078
How many water service connections with septic systems does this system have?   30
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes

Building .500GPD plant with hopes to be done by fall of 2026

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0020095 WWTP 0.5000 0.5000 0.2630 1.0000 Big Marsh Swamp Lumber River (09-1)

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 3,156 3,162 3,177 3,191 3,205 3,220
Seasonal Population 0 0 0 0 0 0

Residential 0.1760 0.1763 0.1770 0.1777 0.1785 0.1793
Commercial 0.0480 0.0481 0.0483 0.0485 0.0487 0.0489
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0260 0.0260 0.0260 0.0265 0.0267 0.0268
Unaccounted-for 0.0277 0.0277 0.0278 0.0280 0.0281 0.0283

Pollution based on 0.05% annually growth rate per 2010-2020 census data

Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
Well # 5 03-78-030 Ground 0.3600 2026 Regular

Well # 5 is in design stages, yield is estimated. Actual yield will be adjusted based on constructed well.

Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 1.3560 1.3560 1.3560 1.3560 1.3560 1.3560
Purchases 0.0350 0.0350 0.0350 0.0350 0.0350 0.0350
Future Supplies 0.3600 0.3600 0.3600 0.3600 0.3600
Total Available Supply (MGD) 1.3910 1.7510 1.7510 1.7510 1.7510 1.7510
Service Area Demand 0.2777 0.2781 0.2791 0.2807 0.2820 0.2833
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.2777 0.2781 0.2791 0.2807 0.2820 0.2833
Demand as Percent of Supply 20% 16% 16% 16% 16% 16%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 56 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   No Changes

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   None

How does the water system intend to implement the demand management and supply planning components above?   N/A

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   No
