Gibson (Scotland Co - South WSD)

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Gibson (Scotland Co - South WSD)   PWSID: 03-83-015
Mailing Address:P.O. Box 256
Gibson, NC 28343		Ownership:Municipality

Contact Person:Elizabeth AndersonTitle:Clerk
Phone:910-268-4291Cell/Mobile:--

Secondary Contact:Paul Langfield/NCRWA Phone:336-731-6963
Mailing Address:
, 		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Cast Iron 6-8 10.00 %
Ductile Iron 6-8 20.00 %
Polyvinyl Chloride 2-12 70.00 %
What are the estimated total miles of distribution system lines?   20 Miles
How many feet of distribution lines were replaced during 2025?   40 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   10
How old are the oldest meters in this system?   26 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.2000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Quarterly
Does this system have a valve exercise program?   Yes, As Needed
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes

We use NCRWA as needed for leak detection.

Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Big Shoe Heel Creek (09-2)100 %
County(s)% of Service Population
Scotland100 %
What was the year-round population served in 2025?   589
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 300 0.0360 0 0.0000
Commercial 0 0.0000 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0001 MGD

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0394 May 0.0350 Sep 0.0305
Feb 0.0410 Jun 0.0511 Oct 0.0411
Mar 0.0363 Jul 0.0361 Nov 0.0330
Apr 0.0310 Aug 0.0410 Dec 0.0390

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.0000 0 0.0000 2000 Emergency
2 0.0000 0 0.0000 2000 Emergency
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 Yes
2 Yes
Are ground water levels monitored?   No,
Does this system have a wellhead protection program?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Scotland Co - South 03-83-035 0.0379 365 0.1500 2050 Yes Yes 12 Regular

4. Wastewater Information

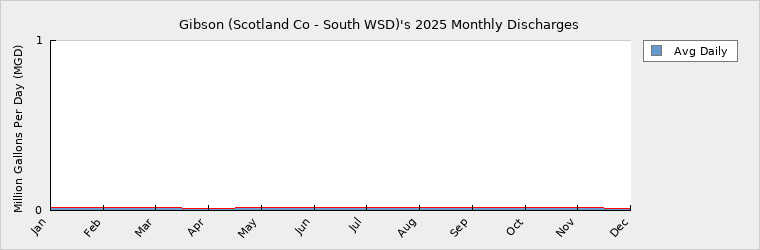

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0166 May 0.0154 Sep 0.0167
Feb 0.0180 Jun 0.0201 Oct 0.0171
Mar 0.0153 Jul 0.0188 Nov 0.0182
Apr 0.0121 Aug 0.0154 Dec 0.0137

How many sewer connections does this system have?   289
How many water service connections with septic systems does this system have?   35
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
WQ0002766 WWTP 0.0990 0.0990 0.0165 Land Application Big Shoe Heel Creek (09-2)

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 589 598 626 654 684 715
Seasonal Population 0 0 0 0 0 0

Residential 0.0360 0.0385 0.0401 0.0420 0.0439 0.0459
Commercial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001
Unaccounted-for 0.0018 0.0034 0.0036 0.0038 0.0039 0.0041
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.1500 0.1500 0.1500 0.1500 0.1500 0.1500
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.1500 0.1500 0.1500 0.1500 0.1500 0.1500
Service Area Demand 0.0379 0.0420 0.0438 0.0459 0.0479 0.0501
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0379 0.0420 0.0438 0.0459 0.0479 0.0501
Demand as Percent of Supply 25% 28% 29% 31% 32% 33%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 61 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   No Changes

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   No Changes

How does the water system intend to implement the demand management and supply planning components above?   No Changes

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
