Bailey

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Bailey   PWSID: 04-64-035
Mailing Address:P.O.Box 40
Bailey, NC 27807		Ownership:Municipality

Contact Person:Joel KillionTitle:Town Administrator
Phone:252-235-4977Cell/Mobile:--

Secondary Contact:Daniel Sears Phone:984-365-9155
Mailing Address:4700 Homewood Court
Raleigh, NC 27609		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-8 10.00 %
Cast Iron 6,8 60.00 %
Polyvinyl Chloride 6-12 30.00 %
What are the estimated total miles of distribution system lines?   0 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   0
How old are the oldest meters in this system?   28 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.0050 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Quarterly
Does this system have a valve exercise program?   Yes, As Needed
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Flat/Fixed
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

There are no interconnection plans at this time. Bailey is directing available funding toward updating its current water system infrastructure. When this is done, the Board of Commissioner will likely look at interconnect options.

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Contentnea Creek (10-2)100 %
County(s)% of Service Population
Nash100 %
What was the year-round population served in 2025?   568
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 251 0.0451 0 0.0000
Commercial 63 0.0061 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 1 0.0043 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0001 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Central Nash WSD 40-64-025 0.0408 2 0.0390 2026 Yes Yes 4 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0643 May 0.0887 Sep 0.0529
Feb 0.0551 Jun 0.0572 Oct 0.0489
Mar 0.0515 Jul 0.0521 Nov 0.0495
Apr 0.0508 Aug 0.0578 Dec 0.0441

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Well #1 0.0407 2 0.1150 Emergency
Well #2 0.0559 365 0.1800 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Well #1 260 8 Yes
Well #2 350 103 8 Yes
Are ground water levels monitored?   Yes, As Needed
Does this system have a wellhead protection program?   Yes
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Well #1 0.1150 Yes No Well #1
Well #2 0.1800 Yes No Well #2
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

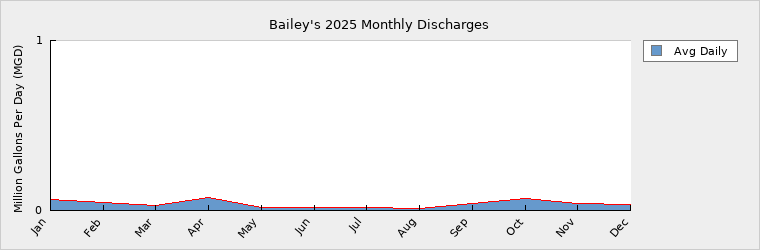

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0663 May 0.0168 Sep 0.0396
Feb 0.0454 Jun 0.0197 Oct 0.0677
Mar 0.0276 Jul 0.0180 Nov 0.0425
Apr 0.0748 Aug 0.0110 Dec 0.0359

How many sewer connections does this system have?   260
How many water service connections with septic systems does this system have?   52
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes

The town is considering the increase of the spray fields to ensure the treatment capacity of the system.
Wastewater metered is recorded on the effluent meter, the spraypond still contain wastewater.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
WQ0002560 WWTP 0.0430 0.0900 0.0000 Land Application Contentnea Creek (10-2)

0.0388 MGD was land applied in 2024.

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 568 569 599 629 661 695
Seasonal Population 0 0 0 0 0 0

Residential 0.0451 0.0452 0.0475 0.0500 0.0525 0.0552
Commercial 0.0061 0.0061 0.0064 0.0068 0.0071 0.0075
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0043 0.0043 0.0045 0.0048 0.0050 0.0053
System Process 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001
Unaccounted-for 0.0003 0.0003 0.0003 0.0003 0.0004 0.0004
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.1800 0.1800 0.1800 0.1800 0.1800 0.1800
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.1800 0.1800 0.1800 0.1800 0.1800 0.1800
Service Area Demand 0.0559 0.0560 0.0588 0.0620 0.0651 0.0685
Sales 0.0002 0.0408 0.0408 0.0408 0.0408 0.0408
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0561 0.0968 0.0996 0.1028 0.1059 0.1093
Demand as Percent of Supply 31% 54% 55% 57% 59% 61%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 79 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
