Columbia

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Columbia   PWSID: 04-89-010
Mailing Address:P. O. Box 361
Columbia, NC 27925		Ownership:Municipality

Contact Person:Monica MauffreyTitle:Manager
Phone:252-796-2781Cell/Mobile:--

Secondary Contact:William T. Davenport jr Phone:252-394-0165
Mailing Address:155 Bulls Bay Road
Columbia, NC 27925		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 3-12 98.00 %
Ductile Iron 6-8 0.50 %
Polyvinyl Chloride 6-8 1.50 %
What are the estimated total miles of distribution system lines?   6 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   6
How old are the oldest meters in this system?   51 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   1
What is this system's finished water storage capacity?   0.2000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Semi-Annually
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Flat/Fixed
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Albemarle Sound (12-1)100 %
County(s)% of Service Population
Tyrrell100 %
What was the year-round population served in 2025?   891
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 366 0.0400 0 0.0000
Commercial 35 0.0060 0 0.0000
Industrial 4 0.0040 0 0.0000
Institutional 40 0.0110 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0090 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Tyrrell County 04-89-015 0.0030 365 Yes No 6 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0830 0.1300 May 0.0850 0.1600 Sep 0.0810 0.1740
Feb 0.0970 0.1050 Jun 0.0870 0.2220 Oct 0.0900 0.1310
Mar 0.0600 0.2220 Jul 0.0910 0.1980 Nov 0.0800 0.1650
Apr 0.0710 0.1430 Aug 0.0770 0.1230 Dec 0.0640 0.1120

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.0580 353 0.225 0.2260 Regular
2 0.0000 0 0 0.1440 2016 Regular
3 0.0380 227 0.090 0.1080 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 133 128 116 128 10 0 Yes
2 125 125 65 125 8 0 No
3 135 110 110 130 4 Yes
Are ground water levels monitored?   No,
Does this system have a wellhead protection program?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Tyrrell County 04-89-015 0.0000 0 0.0000 Yes No 4 Emergency
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Columbia 0.4000 Yes Yes Groundwater
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?  No
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

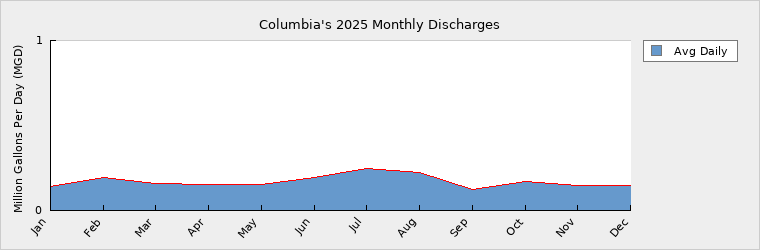

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.1390 May 0.1500 Sep 0.1230
Feb 0.1920 Jun 0.1920 Oct 0.1720
Mar 0.1600 Jul 0.2450 Nov 0.1470
Apr 0.1540 Aug 0.2260 Dec 0.1480

How many sewer connections does this system have?   515
How many water service connections with septic systems does this system have?   14
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0007510 WTP 0.0200 0.0200 0.0000 0.0000 Scuppernong River Albemarle Sound (12-1)
NC0020443 WWTP 0.6000 0.6000 0.2000 0.5000 Scuppernong River Albemarle Sound (12-1)
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Tyrrell County 04-89-015 Receiving 0.0010 365

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 891 891 891 891 891 891
Seasonal Population 0 0 0 0 0 0

Residential 0.0400 0.0000 0.0000 0.0000 0.0000 0.0000
Commercial 0.0060 0.0000 0.0000 0.0000 0.0000 0.0000
Industrial 0.0040 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0110 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0090 0.0000 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.0067 0.0000 0.0000 0.0000 0.0000 0.0000
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.4780 0.3340 0.3340 0.3340 0.3340 0.3340
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.4780 0.3340 0.3340 0.3340 0.3340 0.3340
Service Area Demand 0.0767 0.0000 0.0000 0.0000 0.0000 0.0000
Sales 0.0030 0.0030 0.0030 0.0030 0.0030 0.0030
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0797 0.0030 0.0030 0.0030 0.0030 0.0030
Demand as Percent of Supply 17% 1% 1% 1% 1% 1%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 45 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
