Fork Township SD

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Fork Township SD   PWSID: 04-96-060
Mailing Address:P.O. Box 1515
Goldsboro, NC 27533-1515		Ownership:District

Contact Person:Glenn KennedyTitle:Manager
Phone:919-736-2551Cell/Mobile:919-922-0769

Secondary Contact:Trey Gurley Phone:919-736-7630
Mailing Address:109 East Walnut Street
Goldsboro, NC 27530		Cell/Mobile:919-922-0769
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Ductile Iron 6-12 1.00 %
Polyvinyl Chloride 2-12 99.00 %
What are the estimated total miles of distribution system lines?   143 Miles
How many feet of distribution lines were replaced during 2025?   1,695 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   9
How old are the oldest meters in this system?   14 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   1.2000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   Yes
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Neuse River (10-1)100 %
County(s)% of Service Population
Wayne100 %
What was the year-round population served in 2025?   10,443
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 4,245 0.4808 0 0.0000
Commercial 80 0.0647 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0300 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
City of Goldsboro 04-96-010 0.0000 0 0.5000 Yes Yes 6 Emergency
FTSD Water Purchase 60-96-002 0.1513 365 0.2000 Yes Yes 8 Regular
Johnston County 03-51-070 0.0000 0 0.1500 No No 6 Emergency
Wayne Water Districts 04-96-060 0.0000 0 0.0000 No No 6-12 Emergency

Fork Township SD did not sell any water to the City of Goldsboro in 2025.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.8290 1.2310 May 0.8324 0.9600 Sep 0.8263 1.0060
Feb 0.7845 1.0130 Jun 0.8574 1.0060 Oct 0.7899 0.9630
Mar 0.7710 0.9160 Jul 0.8616 1.0290 Nov 0.7537 0.8610
Apr 0.7891 0.8870 Aug 0.7877 0.9470 Dec 0.6960 0.8120

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.1486 365 0.2290 0.1800 CUA25 Regular
2 0.1365 364 0.2260 0.1440 CUA25 Regular
3 0.0831 365 0.142 0.1188 CUA25 Regular
4 0.1333 365 0.2200 0.1548 CUA25 Regular
5 0.0666 317 0.1230 0.1397 CUA25 Regular
6 0.0000 0 0.0000 CUA25 Emergency
RW1 0.0080 365 0.0180 0.0079 CUA0 Regular
RW10 0.0216 254 0.0470 0.1080 CUA0 Regular
RW11 0.0213 365 0.042 0.1260 CUA0 Regular
RW12 0.0073 282 0.015 0.0648 CUA0 Regular
RW13 0.0000 0 0.0648 CUA0 Emergency
RW14 0.0117 304 0.0350 0.1440 CUA0 Regular
RW15 0.0038 363 0.0070 0.0648 CUA0 Regular
RW16 0.0161 363 0.0280 0.0720 CUA0 Regular
RW17 0.0119 365 0.0270 0.0288 CUA0 Regular
RW18 0.0000 0 0.0000 CUA0 Emergency
RW19 0.0113 365 0.0260 0.0288 CUA0 Regular
RW2 0.0189 365 0.0450 0.0189 CUA0 Regular
RW20 0.0273 363 0.0540 0.0720 CUA0 Regular
RW21 0.0135 358 0.0320 0.0288 CUA0 Regular
RW3 0.0000 0 0.0252 CUA0 Emergency
RW4 0.0000 0 0.0360 CUA0 Emergency
RW5 0.0042 365 0.008 0.0042 CUA0 Regular
RW6 0.0189 361 0.0580 0.0189 CUA0 Regular
RW7 0.0132 365 0.0270 0.0131 CUA0 Regular
RW8 0.0136 365 0.024 0.0432 CUA0 Regular
RW9 0.0277 365 0.0590 0.1440 CUA0 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 306 217 296 10 204 Yes
2 318 224 308 10 220 Yes
3 317 208 307 10 202 Yes
4 315 246 310 10 225 Yes
5 313 238 310 12 222 Yes
6 295 239 294 12 0 No
RW1 620 117 620 8 210 Yes
RW10 400 73 400 8 225 Yes
RW11 400 65 400 8 325 Yes
RW12 408 98 408 8 135 Yes
RW13 500 68 500 8 300 Yes
RW14 400 61 400 8 300 Yes
RW15 400 62 400 10 314 Yes
RW16 1002 119 1002 8 504 Yes
RW17 470 164 470 8 105 Yes
RW18 790 132 790 8 210 Yes
RW19 610 138 610 8 189 Yes
RW2 800 138 800 8 175 Yes
RW20 430 162 430 8 149 Yes
RW21 500 120 500 10 125 Yes
RW3 500 128 500 8 125 Yes
RW4 400 86 400 10 115 Yes
RW5 700 90 700 8 210 Yes
RW6 600 88 600 8 175 Yes
RW7 745 156 745 8 200 Yes
RW8 1002 119 1002 8 235 Yes
RW9 400 71 400 10 250 Yes
Are ground water levels monitored?   Yes, Monthly
Does this system have a wellhead protection program?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
City of Goldsboro 04-96-010 0.0000 0 0.2000 2037 Yes Yes 8 Regular
Johnston County 03-51-070 0.0000 0 0.1500 2023 No Yes 6 Emergency
Wayne Water Districts 04-96-065 0.0000 0 0.0000 Yes Yes 6-12 Emergency
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Fork Township WTP #1 0.9000 Yes Yes 17 Raw Water Wells
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

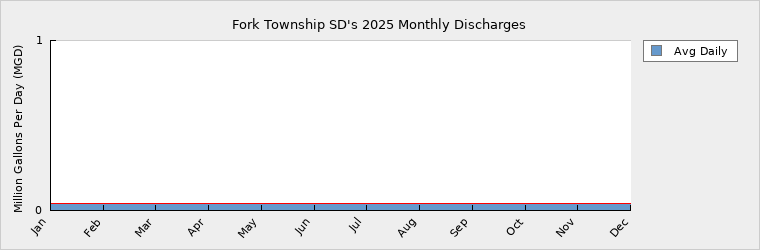

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0440 May 0.0440 Sep 0.0440
Feb 0.0440 Jun 0.0440 Oct 0.0440
Mar 0.0440 Jul 0.0440 Nov 0.0440
Apr 0.0440 Aug 0.0440 Dec 0.0440

How many sewer connections does this system have?   3
How many water service connections with septic systems does this system have?   4,319
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

The wastewater interconnect with Goldsboro is shown here for the first time. The avg. annual daily discharge of 0.0440 MGD reportedly received by Goldsboro from Fork Township SD is shown for each month.

Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Goldsboro 04-96-010 Discharging 0.0440 365 0.1250

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 10,443 11,250 13,056 15,152 17,584 20,407
Seasonal Population 0 0 0 0 0 0

Residential 0.4808 0.5180 0.6011 0.6976 0.8096 0.9346
Commercial 0.0647 0.0697 0.0809 0.0939 0.1089 0.1264
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0300 0.0323 0.0375 0.0435 0.0505 0.0586
Unaccounted-for 0.0716 0.0780 0.0906 0.1051 0.1220 0.1416
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 1.7254 1.7254 1.7254 1.7254 1.7254 1.7254
Purchases 0.2000 0.2000 0.2000 0.2000 0.2000 0.2000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 1.9254 1.9254 1.9254 1.9254 1.9254 1.9254
Service Area Demand 0.6471 0.6980 0.8101 0.9401 1.0910 1.2612
Sales 0.1513 0.2000 0.2000 0.2000 0.2000 0.2000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.7984 0.8980 1.0101 1.1401 1.2910 1.4612
Demand as Percent of Supply 41% 47% 52% 59% 67% 76%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 46 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    Conduct regular water audits

Are there other demand management practices you will implement to reduce your future supply needs?   Water conservation literature

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   Additional purchase from COG 04-96-010

How does the water system intend to implement the demand management and supply planning components above?   Use technical assistance as required

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
