Walnut Creek

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Walnut Creek   PWSID: 04-96-155
Mailing Address:PO Box 10911
Goldsboro, NC 27532		Ownership:Municipality

Contact Person:Darren HoweryTitle:Maint. supervisor
Phone:919-778-9687Cell/Mobile:--

Secondary Contact:Mike Houston Phone:919-812-6088
Mailing Address:
, NC 28525		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6 30.00 %
Ductile Iron 6 1.00 %
Polyvinyl Chloride 6-12 69.00 %
What are the estimated total miles of distribution system lines?   11 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   1
How old are the oldest meters in this system?   6 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   0.0000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Semi-Annually
Does this system have a valve exercise program?   Yes, Semi-Annually
Does this system have a cross-connection program?   No
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes

Walnut Creek utilizes NCRWA for leak detection on an as needed basis.

Water Conservation
What type of rate structure is used?   Uniform
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Neuse River (10-1)100 %
County(s)% of Service Population
Wayne100 %
What was the year-round population served in 2025?   960
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 480 0.0620 0 0.0000
Commercial 9 0.0019 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 5 0.0019 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0016 MGD

We increased overall system process water due to sewer rehab projects in 2025.

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.0662 May 0.0983 Sep 0.0914
Feb 0.0704 Jun 0.0779 Oct 0.0826
Mar 0.0556 Jul 0.0821 Nov 0.0540
Apr 0.0661 Aug 0.0664 Dec 0.0534

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Well 2 0.0000 0 0.0520 2015 Emergency
Well 4 0.0000 0 0.1670 2015 Emergency
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Well 2 No
Well 4 No
Are ground water levels monitored?   No,
Does this system have a wellhead protection program?   No
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Wayne Water Districts 04-96-065 0.0720 365 0.1500 2036 Yes Yes 6 Regular

The contract between Walnut Creek and Eastern Wayne Sanitary District (member of Wayne Water Districts) does not reference a specific amount of water to be provided or a limit. Walnut Creek is provided water based upon their need in the same manner as EWSD provides water to all of its users. Accordingly, a placeholder of 0.1500 MGD, which WWDs is able to provide, is shown to keep demand to supply ratios below 80%.

4. Wastewater Information

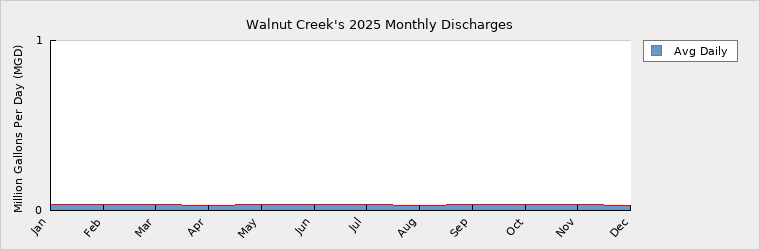

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0324 May 0.0324 Sep 0.0364
Feb 0.0324 Jun 0.0366 Oct 0.0330
Mar 0.0342 Jul 0.0347 Nov 0.0344
Apr 0.0321 Aug 0.0319 Dec 0.0316

How many sewer connections does this system have?   179
How many water service connections with septic systems does this system have?   200
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Goldsboro 04-96-010 Discharging 0.0343 365 0.1000

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 960 955 962 969 976 983
Seasonal Population 0 0 0 0 0 0

Residential 0.0620 0.0620 0.0626 0.0630 0.0634 0.0638
Commercial 0.0019 0.0019 0.0019 0.0019 0.0019 0.0020
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0019 0.0019 0.0019 0.0019 0.0019 0.0020
System Process 0.0016 0.0016 0.0016 0.0016 0.0016 0.0016
Unaccounted-for 0.0046 0.0046 0.0046 0.0047 0.0047 0.0047
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.1500 0.1500 0.1500 0.1500 0.1500 0.1500
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 0.1500 0.1500 0.1500 0.1500 0.1500 0.1500
Service Area Demand 0.0720 0.0720 0.0726 0.0731 0.0735 0.0741
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.0720 0.0720 0.0726 0.0731 0.0735 0.0741
Demand as Percent of Supply 48% 48% 48% 49% 49% 49%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 65 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   No Changes

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   No Changes

How does the water system intend to implement the demand management and supply planning components above?   No Changes

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, CCPCUA

What major water supply reports or studies were used for planning?  CCPCUA

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
